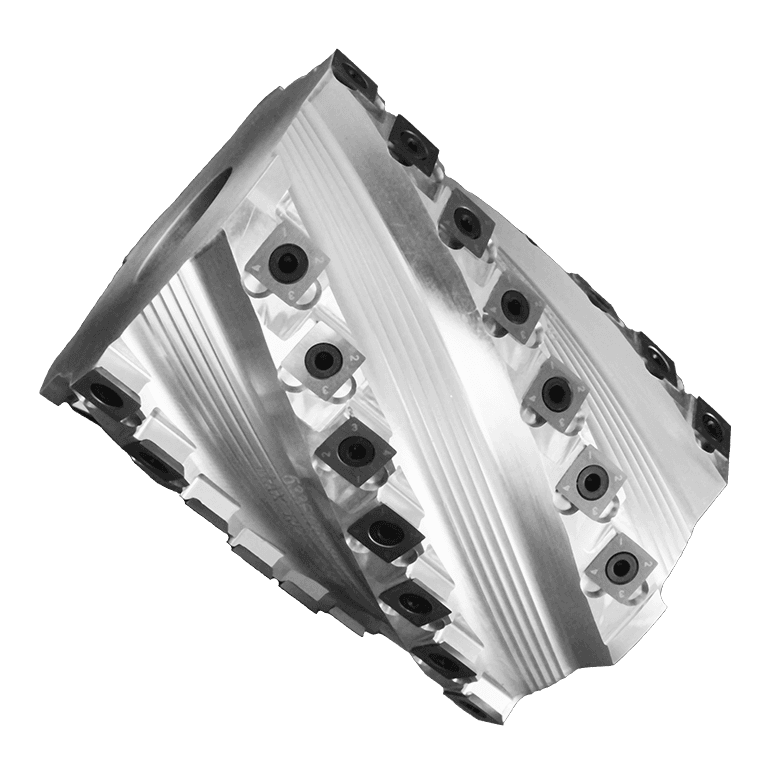

Spiralex Cutterheads
Spiralex planing tools are great for general purpose planing on moulders, jointers, and shapers. Low horsepower required to cut. Radius knives help minimize lines. Top and bottom heads have different spiral directions that draw the chips towards the spindle base. Shallow gullets for reduced noise levels.
Hw
Sw
Fb
Pl
Hp
Sp

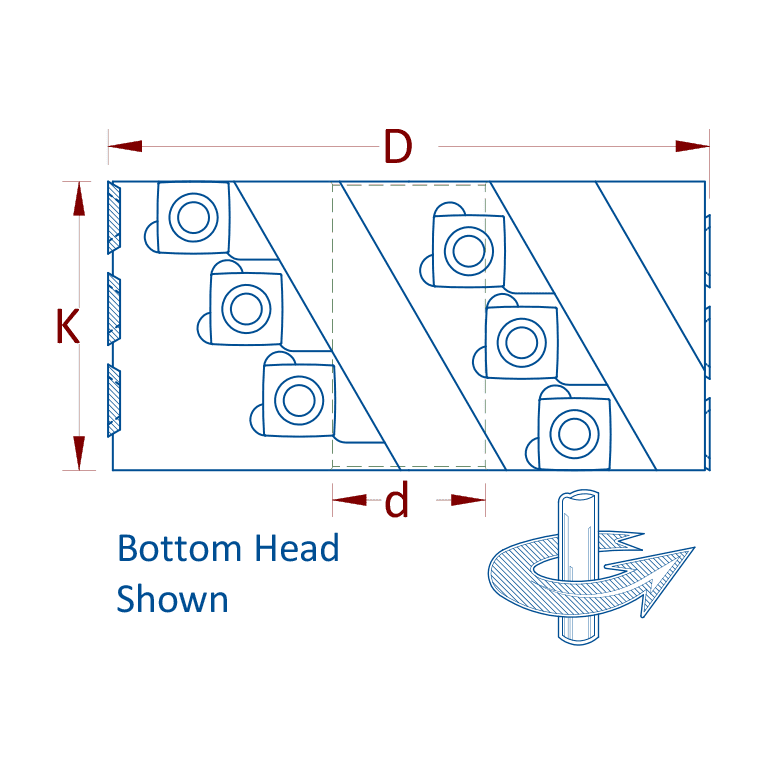

| Part | D | K | Z | d | Spindle |
|---|---|---|---|---|---|
| 533F-100.060-02B | 100mm | 60mm | 2+2 | 1.2500" | Bottom/Left |
| 533F-100.060-03B | 100mm | 60mm | 3+3 | 1.2500" | Bottom/Left |
| 533F-100.100-02B | 100mm | 100mm | 2+2 | 1.2500" | Bottom/Left |
| 533F-100.100-03B | 100mm | 100mm | 3+3 | 1.2500" | Bottom/Left |
| 533F-100.150-02B | 100mm | 150mm | 2+2 | 1.2500" | Bottom/Left |
| 533F-100.240-02T | 100mm | 240mm | 2+2 | 40mm | Top/Right |
| 533F-125.060-03B | 125mm | 60mm | 3+3 | 40mm | Bottom/Left |
| 533F-125.060-03T | 125mm | 60mm | 3+3 | 40mm | Top/Right |
| 533F-125.100-03B | 125mm | 100mm | 3+3 | 40mm | Bottom/Left |
| 533F-125.100-03T | 125mm | 100mm | 3+3 | 40mm | Top/Right |
| 533F-125.150-03B | 125mm | 150mm | 3+3 | 40mm | Bottom/Left |
| 533F-125.150-03T | 125mm | 150mm | 3+3 | 40mm | Top/Right |
| 533F-125.230-03B | 125mm | 230mm | 3+3 | 40mm | Bottom/Left |
| 533F-125.240-03B | 125mm | 240mm | 3+3 | 40mm | Bottom/Left |
| 533F-125.240-03T | 125mm | 240mm | 3+3 | 40mm | Top/Right |
| 533F-140.060-03B | 140mm | 60mm | 3+3 | 40mm | Bottom/Left |
| 533F-140.100-03B | 140mm | 100mm | 3+3 | 40mm | Bottom/Left |
| 533F-140.100-03T | 140mm | 100mm | 3+3 | 40mm | Top/Right |
| 533F-140.150-03B | 140mm | 150mm | 3+3 | 40mm | Bottom/Left |
| 533F-140.240-03B | 140mm | 240mm | 3+3 | 40mm | Bottom/Left |
| 533F-140.240-03T | 140mm | 240mm | 3+3 | 40mm | Top/Right |
