533F-100.060-03B
Spiralex planing cutterheads are great for general purpose planing on moulders, jointers, and shapers. Low horsepower required to cut. Radius knives help minimize lines. Shallow gullets for reduced noise levels. Bottom/Left Spindle Cutterhead.

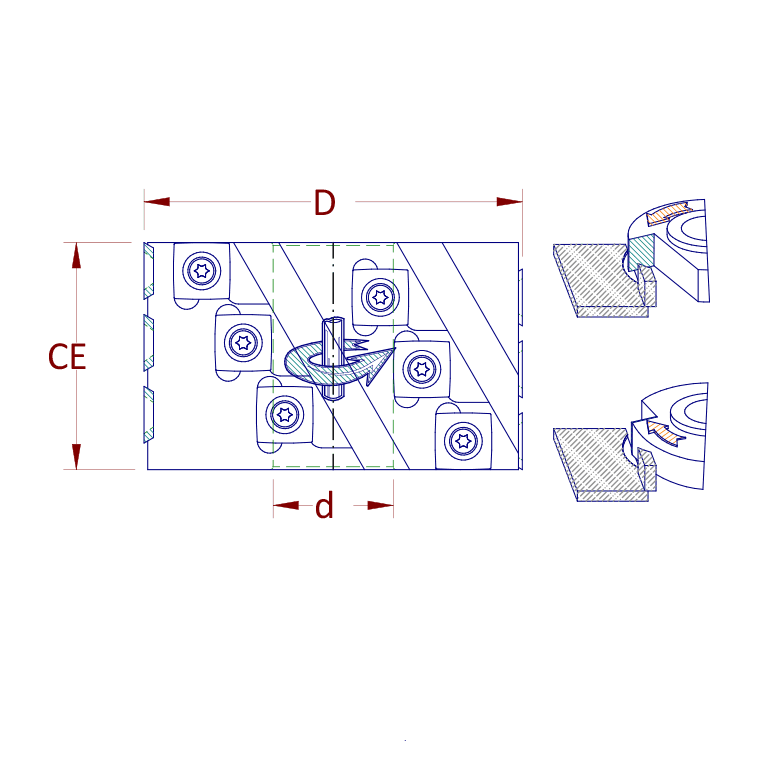

Diameter (D) | 100mm |
Cutting Edge (CE) | 60mm |
Number of Wings/Flutes/Teeth (Z) | 3+3 |
Material (Material) | HW |
Bore Size (d) | 1.2500" |
Spindle (Spindle) | Bottom/Left |
Replacement Parts
| Part Number | Description | Quantity Per One |
|---|---|---|
| 592-0007 | Replacement TOK Insert Knives | 18 |
| 580.SHD-M5014.AOBT20 | Replacement TOK Insert Knife Screw | 18 |
