Finger Joint Cutterheads
Finger joint insert tool for use on shapers. Produces a stronger joint when gluing material together.
Hw
Fb
Pl
Sw
Pb
| Part | D | Z | b1 | b2 | d | K |
|---|---|---|---|---|---|---|
| 518B-140.030 | 140mm | 3 | 10mm | 7.75mm | 1.2500" | 30mm |
| 518B-140.040 | 140mm | 3 | 10mm | 7.75mm | 1.2500" | 40mm |
| 518B-140.050 | 140mm | 3 | 10mm | 7.75mm | 1.2500" | 50mm |
Lock Mitre Cutterhead
Lock mitre tool for use on shaper. Tool makes stronger 90° joints. Can be used for material of various thickness.
Hw
Fb
Pl
Sw
Pb
| Part | D | Z | b1 | d | Knife | Lm | Lx | W |
|---|---|---|---|---|---|---|---|---|
| 521.160.030 | 160mm | 3 | 0.305" | 1.2500" | 0.315" | 15-30mm | 2.125" |

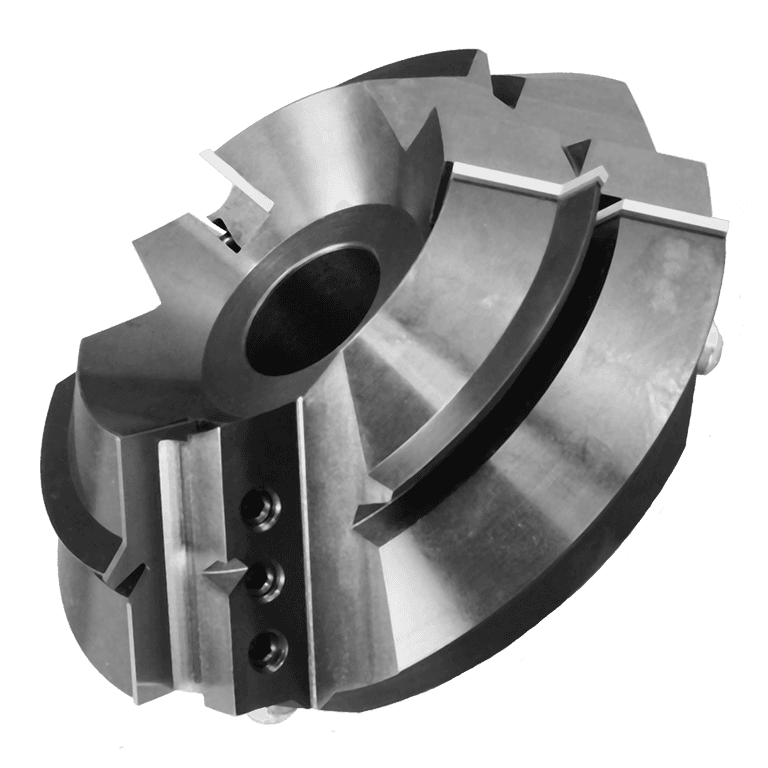

Raised Panel Cutterheads
Cutterhead assembly is used primarily when manufacturing cabinet door centre panels. Single steel body can accept "A-C" profiles. Sold with selected profile installed, optional/replacement profiled inserts available.
Hw
Sw
Pb
Fb
Pl
| Part | D | d | b1 | b2 | Z | Rotation |
|---|---|---|---|---|---|---|
| 552RP.108-3W-A | 108mm | 1.2500" | 15mm | 0.375" | 3 | CCW |
| 552RP.150-3W-A | 150mm | 1.2500" | 23mm | 1.375" | 3 | CCW |
| 552RP.150-3W-B | 150mm | 1.2500" | 23mm | 1.375" | 3 | CCW |
| 552RP.150-3W-C | 150mm | 1.2500" | 23mm | 1.375" | 3 | CCW |
Outside Edge Cutterheads
Cutterhead is used primarily when manufacturing cabinet doors. Single steel body can accept "A-D" profiles. Sold with selected profile installed, optional/replacement profiled inserts available.
Hw
Sw
Pb
Fb
Pl
| Part | D | Ds | d | CE | Z | Rotation | Material |
|---|---|---|---|---|---|---|---|
| 553OP.120-3W-A | 120mm | 92mm | 1.2500" | 30mm | 3 | CCW | HW |
| 553OP.120-3W-B | 120mm | 92mm | 1.2500" | 30mm | 3 | CCW | HW |
| 553OP.120-3W-C | 120mm | 92mm | 1.2500" | 30mm | 3 | CCW | HW |
| 553OP.120-3W-D | 120mm | 92mm | 1.2500" | 30mm | 3 | CCW | HW |
