DIA-EBJ100LE.L

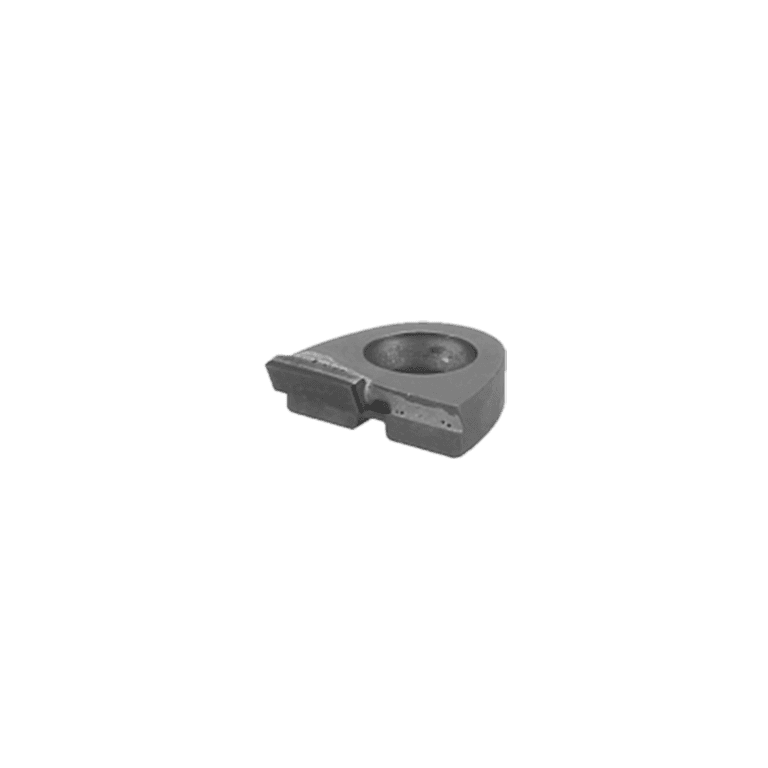

PCD Insert Knife for Premill Edgebander Cutterheads. Left Side Only.

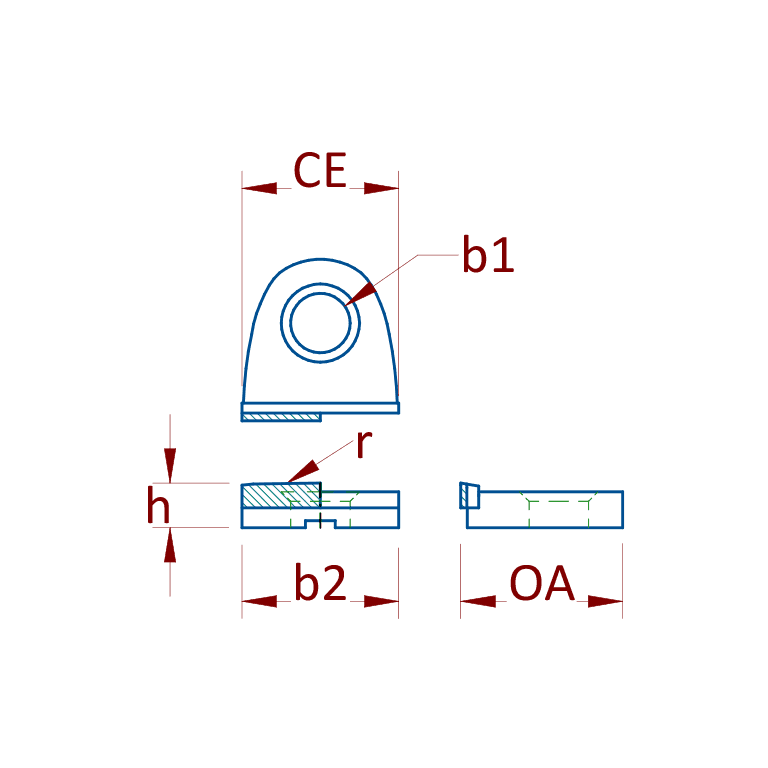

Cutting Edge (CE) | 7mm |
Overall Length (OA) | 14.5mm |
Material (Material) | DP |
Dimension Variable 1 (b1) | 5mm |
Dimension Variable 2 (b2) | 14mm |
Radius Variable (r) | 100mm |
Height (h) | 4.6mm |
PCD Cutterhead Type (Type) | LE |
