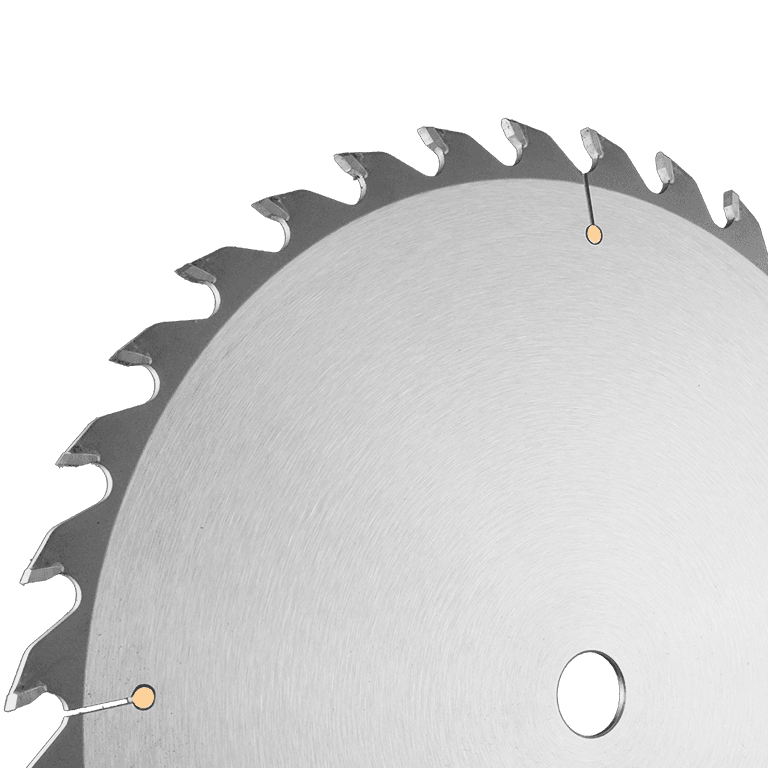

Glue Joint Rip Saw Blades
Glue joint rip saw blade for single line and gang rip saws. Impact resistant grade of carbide used to withstand demanding applications. Unique tooth design to produce smooth finish for Glue Joints.
Hw
Sw
Fb
Pl
Machine Types
RipsawTable Saw
Industries
Moulding & Millwork
Stairs & Railings
Window and Door

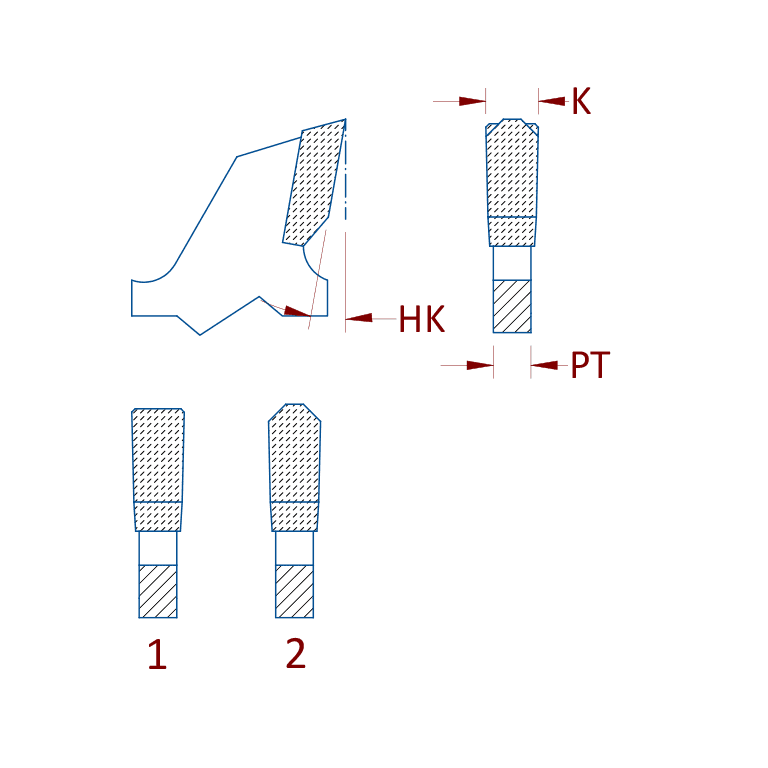

| Part | D | K | Z | d | Pinholes | Keyways | PT | HK | Line |
|---|---|---|---|---|---|---|---|---|---|
| 12080240 | 8" | 3.4mm | 24 | 0.625" | 2.2mm | 15º | Industrial | ||
| 12090240 | 9" | 3.4mm | 24 | 0.625" | 2.2mm | 20º | Industrial | ||
| 12100240 | 10" | 3.6mm | 24 | 0.625" | 2.4mm | 20º | Industrial | ||
| 12100240U | 10" | 3.6mm | 24 | 0.625" | 2.4mm | 20º | Ultima | ||
| 12100300 * | 10" | 3.6mm | 30 | 0.625" | 2.4mm | 20º | Industrial | ||
| 12100423 | 10" | 3.2mm | 42 | 3.125" | 2.2mm | 20º | Industrial | ||
| 12100423U | 10" | 3.2mm | 42 | 3.125" | 2.2mm | 20º | Ultima | ||
| 12120361 | 12" | 4.0mm | 36 | 1.000" | 2.8mm | 20º | Industrial | ||
| 12120361U | 12" | 4.0mm | 36 | 1.000" | 2.8mm | 20º | Ultima | ||
| 12120362 | 12" | 4.0mm | 36 | 2.000" | 1/.5625/5"" | 2.8mm | 20º | Industrial | |
| 12120362U | 12" | 4.0mm | 36 | 2.000" | 1/.5625/5"" | 2.8mm | 20º | Ultima | |
| 12120363 (MEREEN) | 12" | 4.0mm | 36 | 3.125" | 1KW/.250/.250"" | 2.8mm | 20º | Industrial | |
| 12120363U | 12" | 4.0mm | 36 | 3.125" | 1KW/.250/.250"" | 2.8mm | 20º | Ultima | |
| 12120367 | 12" | 4.0mm | 36 | 70mm | 2KW/20/5 | 2.8mm | 20º | Industrial | |
| 12120367U | 12" | 4.0mm | 36 | 70mm | 2KW/20/5 | 2.8mm | 20º | Ultima | |
| 12120369 | 12" | 4.0mm | 36 | 90mm | 2/13/115 + 4/6.6/110 | 2KW/18.5/8 | 2.8mm | 20º | Industrial |
| 12140361 | 14" | 4.3mm | 36 | 1.000" | 3.0mm | 20º | Industrial | ||
| 12140361U | 14" | 4.3mm | 36 | 1.000" | 3.0mm | 20º | Ultima | ||
| 12140362 | 14" | 4.3mm | 36 | 2.000" | 1/.5625/5"" | 3.0mm | 20º | Industrial | |
| 12140362U | 14" | 4.3mm | 36 | 2.000" | 1/.5625/5"" | 3.0mm | 20º | Ultima | |
| 12140363 | 14" | 4.3mm | 36 | 3.125" | 1KW/.250/.250"" | 3.0mm | 20º | Industrial | |
| 12140363U | 14" | 4.3mm | 36 | 3.125" | 1KW/.250/.250"" | 3.0mm | 20º | Ultima | |
| 12140367 | 14" | 4.3mm | 36 | 70mm | 2KW/20/5 | 3.0mm | 20º | Industrial | |
| 12140367U | 14" | 4.3mm | 36 | 70mm | 2KW/20/5 | 3.0mm | 20º | Ultima | |
| 12160242 | 160mm | 2.2mm | 24 | 20mm | 1.6mm | 20º | Industrial | ||
| 12160361 | 16" | 4.3mm | 36 | 1.000" | 3.0mm | 20º | Industrial | ||
| 12210363 | 210mm | 2.2mm | 36 | 30mm | 1.6mm | 20º | Industrial | ||
| 12300283 | 300mm | 2.8mm | 28 | 30mm | 4.0mm | 20º | Industrial | ||
| 12300288 | 300mm | 4.0mm | 28 | 80mm | 4/6.5/95 + 2/13/100 | 2KW/13.5/3.5 | 2.8mm | 20º | Industrial |
| 12300288U | 300mm | 4.0mm | 28 | 80mm | 4/6.5/95 + 2/13/100 | 2KW/13.5/3.5 | 2.8mm | 20º | Ultima |
| 12300363 | 300mm | 4.0mm | 36 | 30mm | 2/10/60 + 2/9/46.35 + 2/7/42 | Industrial | 2.8mm | 20º | |
| 12300368(RAIMAN) | 300mm | 4.0mm | 36 | 80mm | 4/6.5/95 + 2/13/100 | 2KW/13.5/3.5 | 2.8mm | 20º | Industrial |
| 12300368U | 300mm | 4.0mm | 36 | 80mm | 4/6.5/95 + 2/13/100 | 2KW/13.5/3.5 | 2.8mm | 20º | Ultima |
| 12300488 | 300mm | 4.0mm | 48 | 80mm | 4/6.5/95 + 2/13/100 | 2KW/13.5/3.5 | 2.8mm | 20º | Industrial |
| 12300488U | 300mm | 4.0mm | 48 | 80mm | 4/6.5/95 + 2/13/100 | 2KW/13.5/3.5 | 2.8mm | 20º | Ultima |
| 12330288 | 330mm | 4.0mm | 28 | 80mm | 4/6.5/95 + 2/13/100 | 2KW/13.5/3.5 | 2.8mm | 20º | Industrial |
| 12360368 | 360mm | 4.3mm | 36 | 80mm | 4/6.5/95 + 2/13/100 | 2KW/13.5/3.5 | 3.0mm | 20º | Industrial |
