12300488U

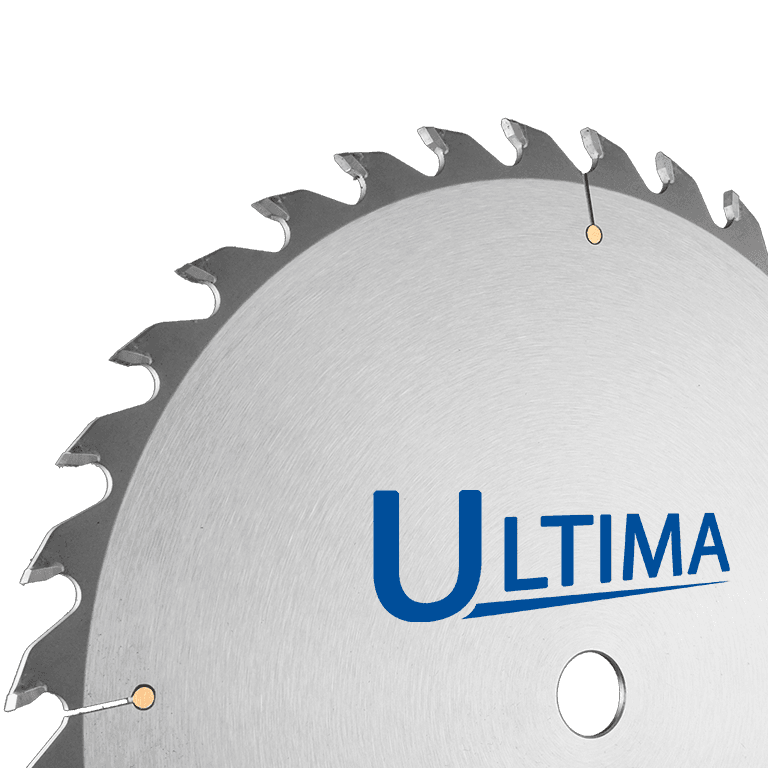

Ultima rip saw blade for single line and gang rip saws. Impact resistant grade of carbide used to withstand demanding applications. Unique tooth design to produce smooth finish for Glue Joints.

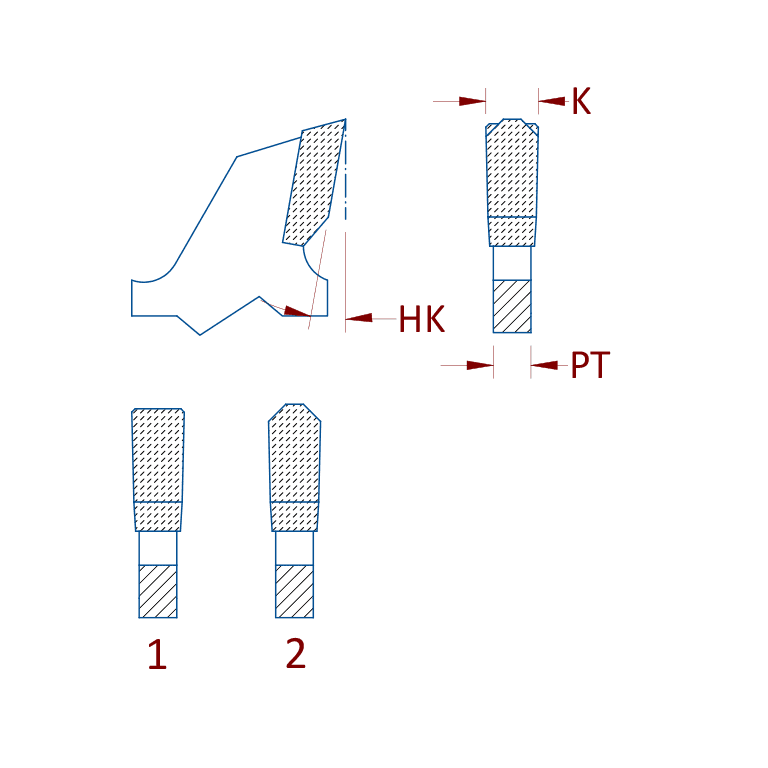

Diameter (D) | 300mm |
Number of Wings/Flutes/Teeth (Z) | 48 |
Bore Size (d) | 80mm |
Plate Thickness (PT) | 2.8mm |
Kerf (K) | 4.0mm |
Hook Angle (HK) | 20º |
Pinholes (Pinholes) | 4/6.5/95 + 2/13/100 |
Keyways (Keyways) | 2KW/13.5/3.5 |
Product Line (Line) | Ultima |
