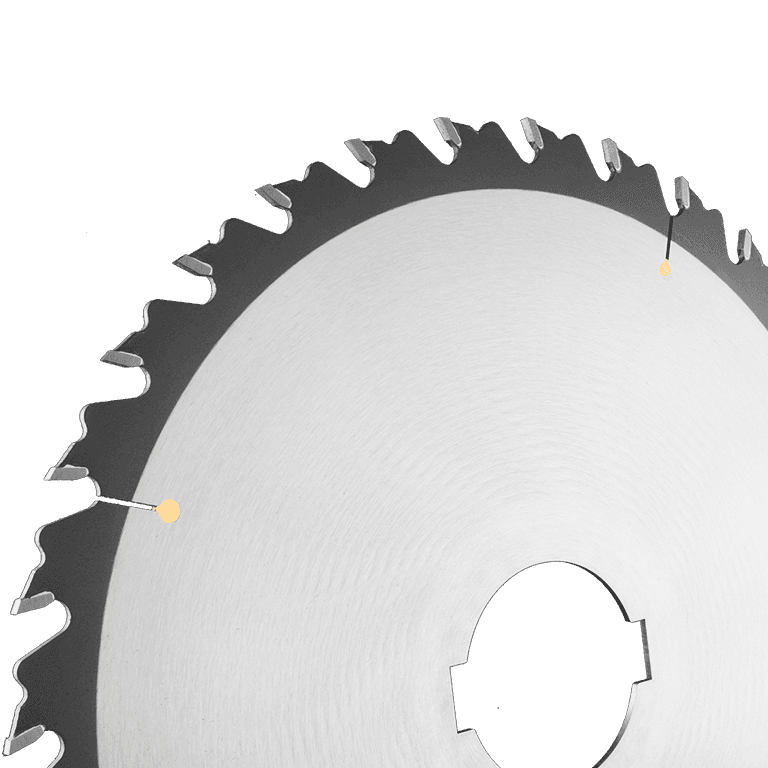

Anti Kickback Rip Saw Blades
General saw blade for ripping soft and hard woods. Used on table, single line, and gang ripsaws. Anti Kickback shoulder prevents kickback of material when being fed.
Hw
Pl
Sw
Machine Types
RipsawTable Saw
Industries
Moulding & Millwork
Stairs & Railings

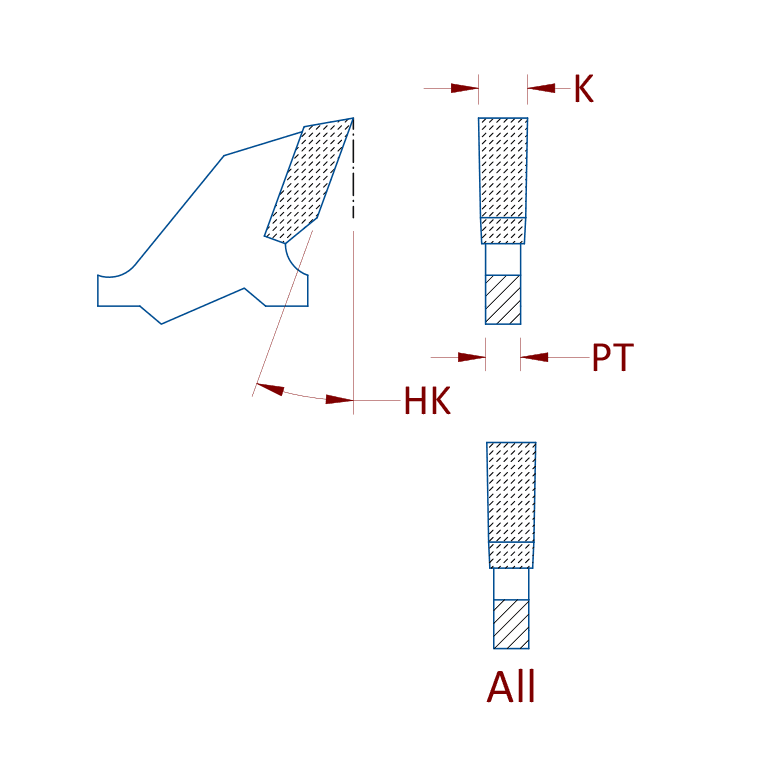

| Part | D | Z | d | PT | K | HK | Keyways |
|---|---|---|---|---|---|---|---|
| 09250240 | 250mm | 24 | 0.625" | 2.2mm | 3.2mm | 20º | |
| 09250247 | 250mm | 24 | 70mm | 2.2mm | 3.2mm | 20º | 2KW/20/5 |
| 09300281 | 300mm | 28 | 1.000" | 2.2mm | 3.2mm | 20º | |
| 09300287 | 300mm | 28 | 70mm | 2.2mm | 3.2mm | 20º | 2KW/20/5 |
| 09350321 | 350mm | 32 | 1.000" | 2.5mm | 3.5mm | 20º | |
| 09350327 | 350mm | 32 | 70mm | 2.5mm | 3.5mm | 20º | 2KW/20/5 |
| 09400361 | 400mm | 36 | 1.000" | 2.8mm | 3.8mm | 20º | |
| 09450401 | 450mm | 40 | 1.000" | 2.8mm | 4.0mm | 20º | |
| 09500441 | 500mm | 44 | 1.000" | 3.0mm | 4.2mm | 20º |
