Filters
Filter Results by Diameter
8" | |
9" | |
10" | |
12" | |
14" | |
16" | |
220mm | |
250mm | |
300mm |
Filter by Saw Bore Size
0.625" | |
1.000" | |
30mm |
Filter by Number of Saw Teeth
60 | |
64 | |
80 | |
96 | |
100 | |
120 |
Filter by Saw Kerf
3mm | |
3.3mm | |
4.2mm |
Filter Saw Blades by Industrial & Ultima Series
Ultima |

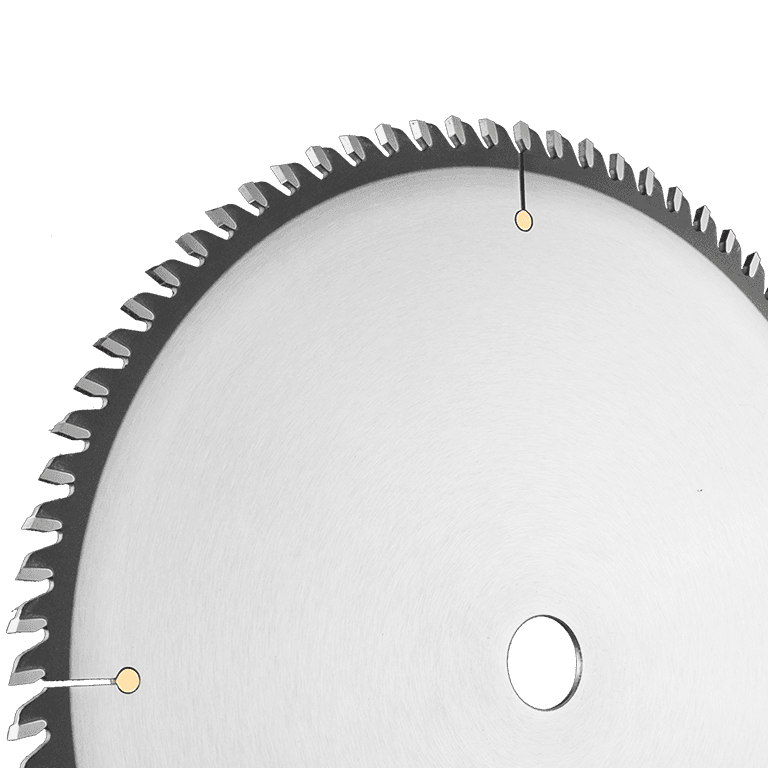

Melamine Saw Blades
Ultima melamine saw blades. For precision sawing of panel material. High 30° ATB helps prevent chipping on back of melamine when scoring unit is not used.
Pb
Fb
Lm
Pl
Machine Types
Table Saw
Industries
Cabinet & Casegoods Manufacturing
Moulding & Millwork
Sign making & Clad paneling
Stairs & Railings

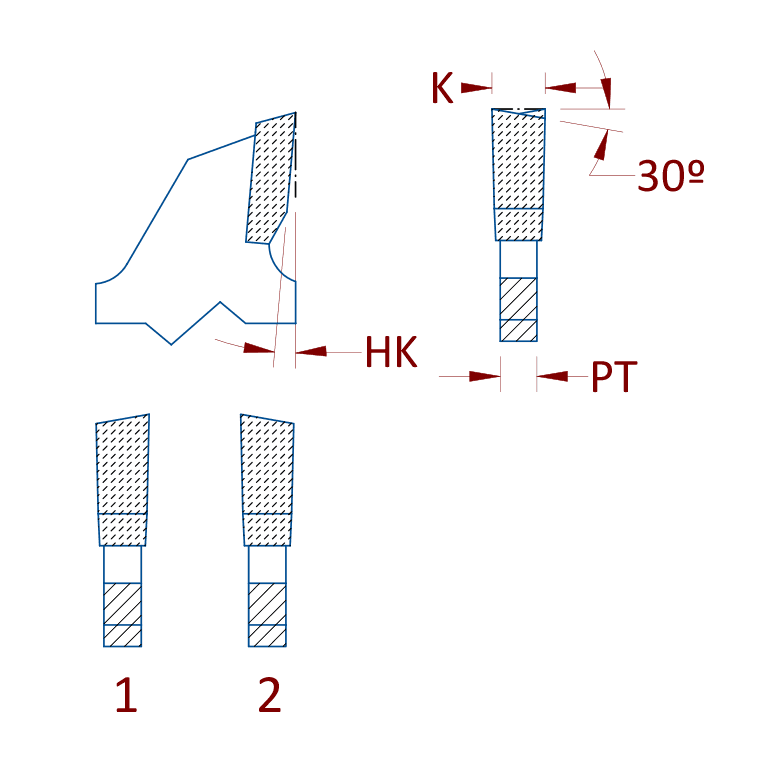

Part | D | K | Z | d | Pinholes | PT | HK | Line |
---|---|---|---|---|---|---|---|---|
02080600MU | 8" | 3mm | 60 | 0.625" | 2.2mm | -5º | Ultima | |
02090600MU | 9" | 3mm | 60 | 0.625" | 2.2mm | -5º | Ultima | |
02100800MU | 10" | 3mm | 80 | 0.625" | 2.2mm | -5º | Ultima | |
02121001MU | 12" | 3.3mm | 100 | 1.000" | 2.5mm | -5º | Ultima | |
02141001MU | 14" | 3.3mm | 100 | 1.000" | 2.5mm | -5º | Ultima | |
02161201MU | 16" | 4.2mm | 120 | 1.000" | 3.2mm | -5º | Ultima | |
02220643MU | 220mm | 3mm | 64 | 30mm | 2/7/42 | 2.2mm | -5º | Ultima |
02250803MU | 250mm | 3mm | 80 | 30mm | 2/7/42 + 2/9/46.35 + 2/10/60 | 2.2mm | -5º | Ultima |
02300963MU | 300mm | 3.3mm | 96 | 30mm | 2/7/42 + 2/9/46.35 + 2/10/60 | 2.5mm | -5º | Ultima |
