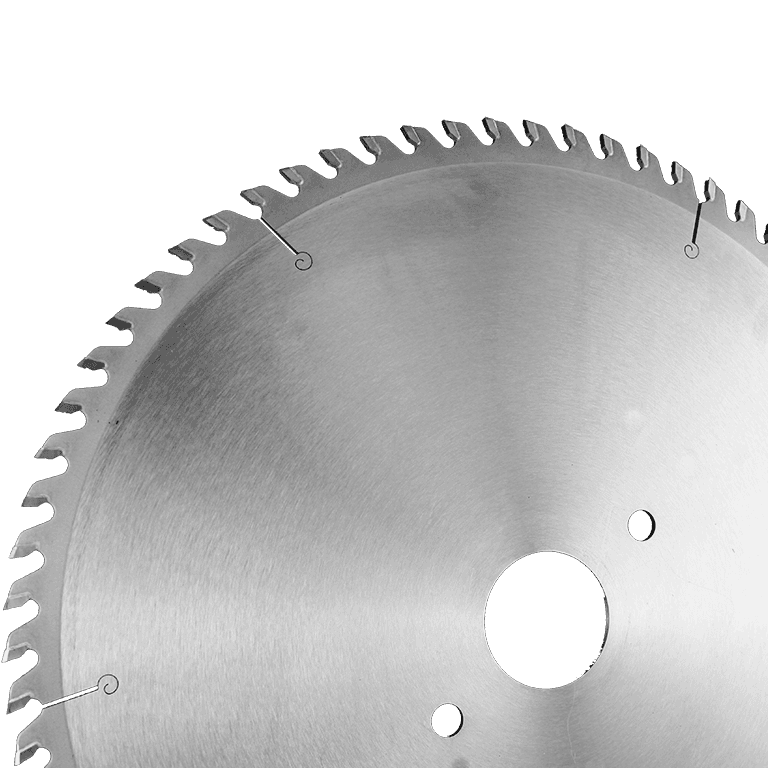

Horizontal Beam Saw Blades
Made for Horizontal Beam Saws. Micro grain carbide and premium grinding provide optimum tool life.
Lm
Fb
Pl
Pb
Machine Types
Panel Saw
Industries
Cabinet & Casegoods Manufacturing

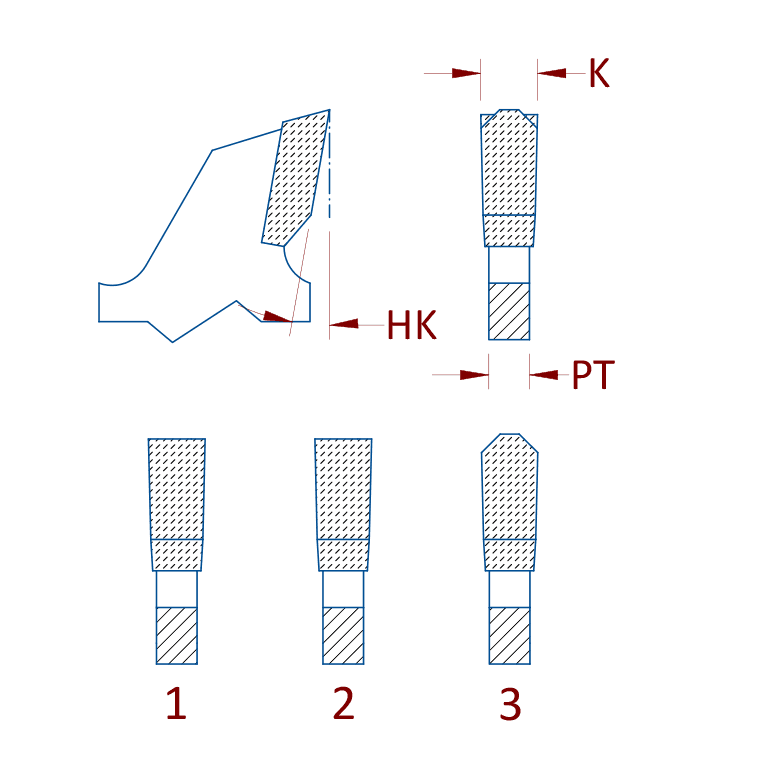

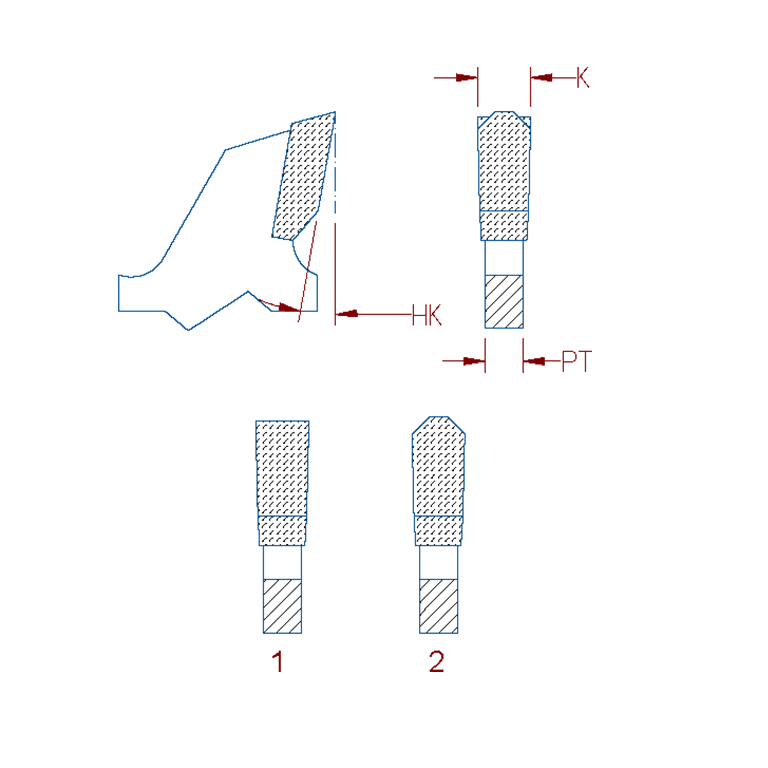

| Part | D | Z | d | PT | K | HK | Pinholes | Line |
|---|---|---|---|---|---|---|---|---|
| 05240543230U | 240mm | 54 | 30mm | 2.2mm | 3.2mm | 15º | 2/7/42 | Ultima |
| 05250603230U | 250mm | 60 | 30mm | 2.2mm | 3.2mm | 15º | 2/7/42 | Ultima |
| 05300724430U | 300mm | 72 | 30mm | 3.2mm | 4.4mm | 15º | Ultima | |
| 05305484430U | 305mm | 48 | 30mm | 3.2mm | 4.4mm | 18º | Ultima | |
| 05305604430U | 305mm | 60 | 30mm | 3.2mm | 4.4mm | 15º | Ultima | |
| 05305724430U | 305mm | 72 | 30mm | 3.2mm | 4.4mm | 15º | Ultima | |
| 05320604465U | 320mm | 60 | 65mm | 3.2mm | 4.4mm | 15º | 2/9/110 | Ultima |
| 05320604465UM | 320mm | 60 | 65mm | 3.2mm | 4.4mm | 15º | 2/9/110 | Ultimax |
| 05320724475U | 320mm | 72 | 75mm | 3.2mm | 4.4mm | 15º | 3/13/95 | Ultima |
| 05330604450U | 330mm | 60 | 50mm | 3.2mm | 4.4mm | 15º | 4/13/80 | Ultima |
| 05350544430U | 350mm | 54 | 30mm | 3.2mm | 4.4mm | 15º | 2/10/60 | Ultima |
| 05350544475U | 350mm | 54 | 75mm | 3.2mm | 4.4mm | 18º | Ultima | |
| 05350604475U | 350mm | 60 | 75mm | 3.2mm | 4.4mm | 18º | Ultima | |
| 05350724430U | 350mm | 72 | 30mm | 3.2mm | 4.4mm | 15º | 2/10/60 | Ultima |
| 05350724430UM | 350mm | 72 | 30mm | 3.2mm | 4.4mm | 15º | 2/10/60 | Ultimax |
| 05350724460U | 350mm | 72 | 60mm | 3.2mm | 4.4mm | 15º | 2/14/100 | Ultima |
| 05350724460UM | 350mm | 72 | 60mm | 3.2mm | 4.4mm | 15º | 2/14/100 | Ultimax |
| 05350724481U | 350mm | 72 | 80mm | 3.2mm | 4.4mm | 15º | 4/9/100 + 2/14/110 + 2/7/110 | Ultima |
| 05355724411U | 355mm | 72 | 1.250" | 3.2mm | 4.4mm | 15º | Ultima | |
| 05355724430U | 355mm | 72 | 30mm | 3.2mm | 4.4mm | 15º | Ultima | |
| 05355724430UM | 355mm | 72 | 30mm | 3.2mm | 4.4mm | 15º | Ultimax | |
| 05355724475U | 355mm | 72 | 75mm | 3.2mm | 4.4mm | 15º | Ultima | |
| 05355724475UM | 355mm | 72 | 75mm | 3.2mm | 4.4mm | 15º | Ultimax | |
| 05355724480U | 355mm | 72 | 80mm | 3.2mm | 4.4mm | 15º | 2/9/130 + 4/19/120 | Ultima |
| 05355724480UM | 355mm | 72 | 80mm | 3.2mm | 4.4mm | 15º | 2/9/130 + 4/19/120 | Ultimax |
| 05360724465U | 360mm | 72 | 65mm | 3.2mm | 4.4mm | 15º | 2/9/110 | Ultima |
| 05370724430U | 370mm | 72 | 30mm | 3.2mm | 4.4mm | 15º | 2/10/60 | Ultima |
| 05370724430UM | 370mm | 72 | 30mm | 3.2mm | 4.4mm | 15º | 2/10/60 | Ultimax |
| 05380604460U | 380mm | 60 | 60mm | 3.2mm | 4.4mm | 15º | 2/14/100 | Ultima |
| 05380724430U | 380mm | 72 | 30mm | 3.2mm | 4.4mm | 15º | 2/10/60 | Ultima |
| 05380724450U | 380mm | 72 | 50mm | 3.2mm | 4.4mm | 15º | 4/13/80 | Ultima |
| 05380724480U | 380mm | 72 | 80mm | 3.2mm | 4.4mm | 15º | 4/13/80 | Ultima |
| 05380724860U | 380mm | 72 | 60mm | 3.5mm | 4.8mm | 15º | 2/14/100 | Ultima |
| 05380724860UM | 380mm | 72 | 60mm | 3.5mm | 4.8mm | 15º | 2/14/100 | Ultimax |
| 05400604430U | 400mm | 60 | 30mm | 3.2mm | 4.4mm | 15º | 2/10/60 | Ultima |
| 05400604475U | 400mm | 60 | 75mm | 3.2mm | 4.4mm | 15º | 4/15/105 | Ultima |
| 05400604480U | 400mm | 60 | 80mm | 3.2mm | 4.4mm | 15º | 4/9/100 + 2/14/110 | Ultima |
| 05400724430U | 400mm | 72 | 30mm | 3.2mm | 4.4mm | 15º | 2/10/60 | Ultima |
| 05400724460U | 400mm | 72 | 60mm | 3.2mm | 4.4mm | 15º | Ultima | |
| 05400724465U | 400mm | 72 | 65mm | 3.2mm | 4.4mm | 15º | 2/9/110 | Ultima |
| 05400724475U | 400mm | 72 | 75mm | 3.2mm | 4.4mm | 15º | 4/15/105 | Ultima |
| 05400724475UM | 400mm | 72 | 75mm | 3.2mm | 4.4mm | 15º | 4/15/105 | Ultimax |
| 05400724480U | 400mm | 72 | 80mm | 3.2mm | 4.4mm | 15º | 4/9/100 + 2/14/110 + 4/19/120 + 4/9/130 | Ultima |
| 05400844475U | 400mm | 84 | 75mm | 3.2mm | 4.4mm | 15º | 4/15/105 | Ultima |
| 05400844475UM | 400mm | 84 | 75mm | 3.2mm | 4.4mm | 15º | 4/15/105 | Ultimax |
| 05420724460U | 420mm | 72 | 60mm | 3.2mm | 4.4mm | 15º | 2/10/80 + 2/14/125 | Ultima |
| 05420724860U | 420mm | 72 | 60mm | 3.5mm | 4.8mm | 15º | 2/10/80 + 2/14/125 | Ultima |
| 05420724860UM | 420mm | 72 | 60mm | 3.2mm | 4.4mm | 15º | 2/10/80 + 2/14/125 | Ultimax |
| 05430604480UM | 430mm | 60 | 80mm | 3.2mm | 4.4mm | 15º | 2/9/130 + 4/19/120 | Ultimax |
| 05430724430U | 430mm | 72 | 30mm | 3.2mm | 4.4mm | 15º | Ultima | |
| 05430724430UM | 430mm | 72 | 30mm | 3.2mm | 4.4mm | 15º | Ultimax | |
| 05430724475U | 430mm | 72 | 75mm | 3.2mm | 4.4mm | 15º | 4/15/105 | Ultima |
| 05430724475UM | 430mm | 72 | 75mm | 3.2mm | 4.4mm | 15º | 4/15/105 | Ultimax |
| 05430724480U | 430mm | 72 | 80mm | 3.2mm | 4.4mm | 15º | 2/9/130 + 4/19/120 | Ultima |
| 05430964475U | 430mm | 96 | 75mm | 3.2mm | 4.4mm | 10º | 4/15/105 | Ultima |
| 05430964475UM | 430mm | 96 | 75mm | 3.2mm | 4.4mm | 15º | 4/15/105 | Ultimax |
| 05450604430UM | 450mm | 60 | 30mm | 3.2mm | 4.4mm | 15º | 2/8.5/60 | Ultimax |
| 05450604860U | 450mm | 60 | 60mm | 3.5mm | 4.8mm | 15º | 2/10/80 + 2/14/125 | Ultima |
| 05450604860UM | 450mm | 60 | 60mm | 3.5mm | 4.8mm | 15º | 2/14/125 | Ultimax |
| 05450604880UM | 450mm | 60 | 80mm | 3.5mm | 4.8mm | 15º | 4/9/130 + 4/19/120 | Ultimax |
| 05450724430U | 450mm | 72 | 30mm | 3.2mm | 4.4mm | 15º | Ultima | |
| 05450724430UM | 450mm | 72 | 30mm | 3.5mm | 4.8mm | 15º | Ultimax | |
| 05450724460U | 450mm | 72 | 60mm | 3.2mm | 4.4mm | 15º | 2/10/80 + 2/14/125 | Ultima |
| 05450724480U | 450mm | 72 | 80mm | 3.2mm | 4.4mm | 15º | 4/9/100 + 2/14/110 | Ultima |
| 05450724481U | 450mm | 72 | 80mm | 3.2mm | 4.4mm | 15º | 2/9/130 + 4/19/120 | Ultima |
| 05450724482U | 450mm | 72 | 80mm | 3.2mm | 4.4mm | 15º | 2/7/110 + 2/14/110 | Ultima |
| 05450724860U | 450mm | 72 | 60mm | 3.5mm | 4.8mm | 15º | 2/10/80 + 2/14/125 | Ultima |
| 05450724860UM | 450mm | 72 | 60mm | 3.5mm | 4.8mm | 15º | 2/10/80 + 2/14/100 + 2/19/120 + 2/11/150 | Ultimax |
| 05450724880U | 450mm | 72 | 80mm | 3.5mm | 4.8mm | 15º | 2/9/130 + 4/19/120 | Ultima |
| 05450724880UM | 450mm | 72 | 80mm | 3.5mm | 4.8mm | 15º | 2/9/130 + 4/19/120 | Ultimax |
| 05460724430U | 460mm | 72 | 30mm | 3.2mm | 4.4mm | 15º | 2/13/94 | Ultima |
| 05460724430UM | 460mm | 72 | 30mm | 3.2mm | 4.4mm | 15º | 2/13/94 | Ultimax |
| 05470724875U | 470mm | 72 | 75mm | 3.5mm | 4.8mm | 15º | 4/15/105 | Ultima |
| 05470964475U | 470mm | 96 | 75mm | 3.2mm | 4.4mm | 12º | 4/15/105 | Ultima |
| 05480604830UM | 480mm | 60 | 30mm | 3.5mm | 4.8mm | 15º | Ultimax | |
| 05480724430U | 480mm | 72 | 30mm | 3.2mm | 4.4mm | 15º | Ultima | |
| 05480724430UM | 480mm | 72 | 30mm | 3.2mm | 4.4mm | 15º | Ultimax | |
| 05480724830UM | 480mm | 72 | 30mm | 3.5mm | 4.8mm | 15º | Ultimax | |
| 05480724880U | 480mm | 72 | 80mm | 3.5mm | 4.8mm | 15º | 2/9/130 + 4/19/120 | Ultima |
| 05500604430U | 500mm | 60 | 30mm | 3.2mm | 4.4mm | 18º | Ultima | |
| 05500604475U * | 500mm | 60 | 75mm | 3.2mm | 4.4mm | 18º | Ultima | |
| 05500604860U | 500mm | 60 | 60mm | 3.5mm | 4.8mm | 18º | 2/11/115 | Ultima |
| 05500604860UM | 500mm | 60 | 60mm | 3.5mm | 4.8mm | 15º | 2/11/115 | Ultimax |
| 05500724475U | 500mm | 72 | 75mm | 3.2mm | 4.4mm | 15º | Ultima | |
| 05500724860U | 500mm | 72 | 60mm | 3.5mm | 4.8mm | 15º | 2/11/115 | Ultima |
| 05500724860UM | 500mm | 72 | 60mm | 3.5mm | 4.8mm | 15º | 2/11/115 | Ultimax |
| 05500724875U * | 500mm | 72 | 75mm | 3.5mm | 4.8mm | 15º | Ultima | |
| 05500725080UM | 500mm | 72 | 80mm | 3.5mm | 5.0mm | 15º | 4/19/120 | Ultimax |
| 05500964860U | 500mm | 96 | 60mm | 3.5mm | 4.8mm | 10º | Ultima | |
| 05510724880U | 510mm | 72 | 80mm | 3.5mm | 4.8mm | 15º | 2/9/130 + 4/19/120 | Ultima |
| 05520604860U | 520mm | 60 | 60mm | 3.5mm | 4.8mm | 18º | 2/11/115 + 2/19/120 | Ultima |
| 05520724860U | 520mm | 72 | 60mm | 3.5mm | 4.8mm | 15º | 2/11/115 + 2/19/120 | Ultima |
| 05530605030U | 530mm | 60 | 30mm | 3.5mm | 5.0mm | 18º | Ultima | |
| 05550725010U | 550mm | 72 | 100mm | 3.5mm | 5.0mm | 15º | Ultima | |
| 05550725040U | 550mm | 72 | 40mm | 3.5mm | 5.0mm | 18º | Ultima | |
| 05565605010U | 565mm | 60 | 100mm | 3.5mm | 5.0mm | 18º | Ultima | |
| 05565605010UM | 565mm | 60 | 100mm | 3.5mm | 5.0mm | 15º | Ultimax | |
| 05570604860U | 570mm | 60 | 60mm | 3.5mm | 4.8mm | 18º | Ultima | |
| 05600605860U | 600mm | 60 | 60mm | 4.0mm | 5.8mm | 18º | 2/11/115 + 4/19/120 | Ultima |
| 05600605860UM | 600mm | 60 | 60mm | 4.0mm | 5.8mm | 15º | 2/11/115 + 2/19/120 | Ultimax |
| 05600725860U | 600mm | 72 | 60mm | 4.0mm | 5.8mm | 18º | 2/11/115 + 4/19/120 | Ultima |
| 05600725860UM | 600mm | 72 | 60mm | 4.0mm | 5.8mm | 15º | 2/11/115 + 2/19/120 | Ultimax |
| 05650606010U | 650mm | 60 | 100mm | 4.0mm | 6.0mm | 18º | 2/10.5/150 | Ultima |
