05355724480UM

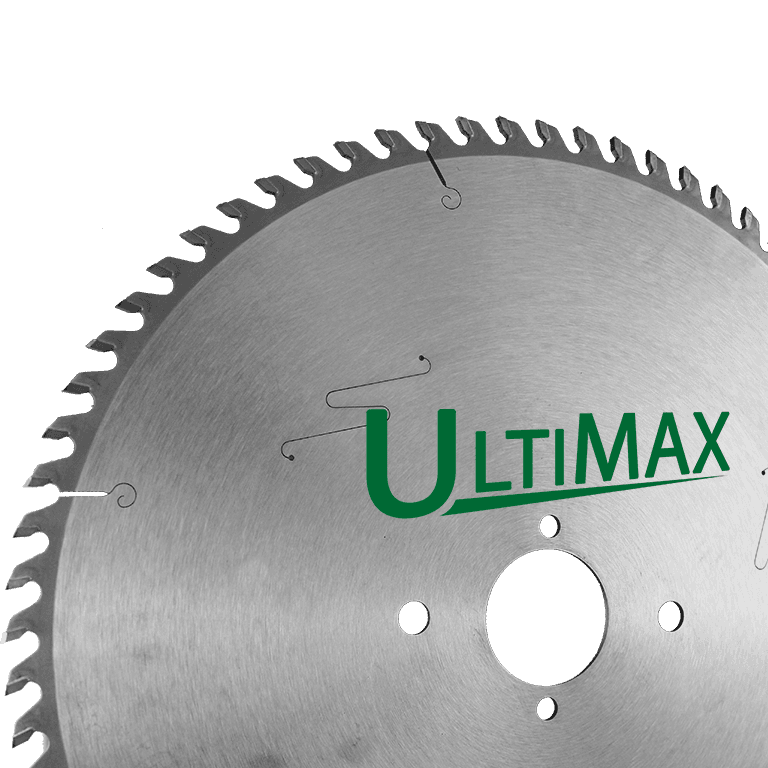

Ultimax Horizontal Beam saw blades. Made for horizontal beam panel saws. Micro grain carbide and premium grinding offer optimum tool life. Unique tooth design helps to prevent chipping on brittle laminates.
Diameter (D) | 355mm |
Number of Wings/Flutes/Teeth (Z) | 72 |
Bore Size (d) | 80mm |
Plate Thickness (PT) | 3.2mm |
Kerf (K) | 4.4mm |
Hook Angle (HK) | 15º |
Pinholes (Pinholes) | 2/9/130 + 4/19/120 |
Product Line (Line) | Ultimax |
