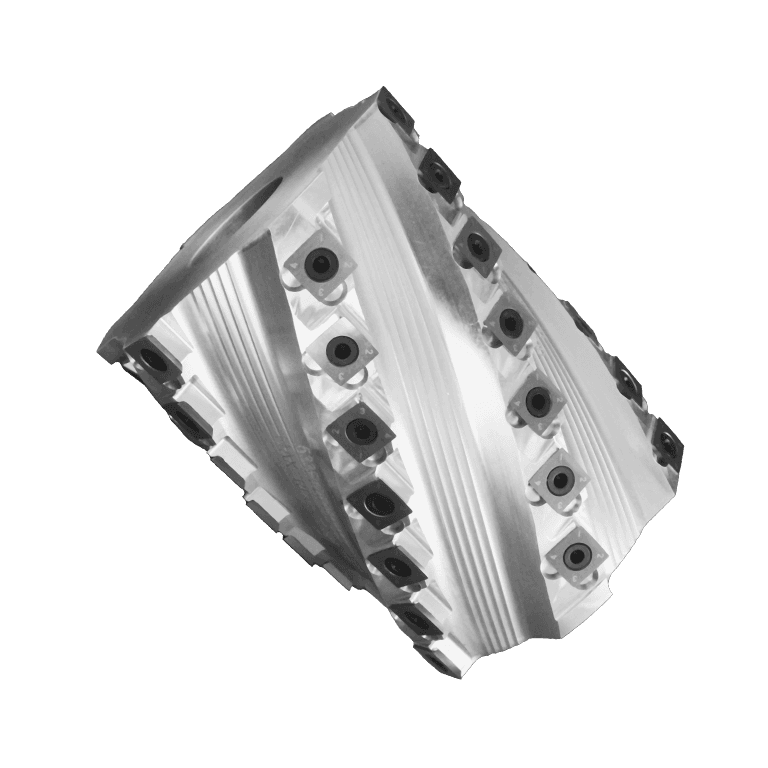

Spiralex Cutterheads
Spiralex planing tools are great for general purpose planing on moulders, jointers, and shapers. Low horsepower required to cut. Radius knives help minimize lines. Top and bottom heads have different spiral directions that draw the chips towards the spindle base. Shallow gullets for reduced noise levels.
Hw
Sw
Fb
Pl
Hp
Sp
Machine Types
MoulderShaper
Industries
Window and Door
Construction Industry
Cabinet & Casegoods Manufacturing
Moulding & Millwork
Stairs & Railings
Primary Wood
Watch in action on
YouTube

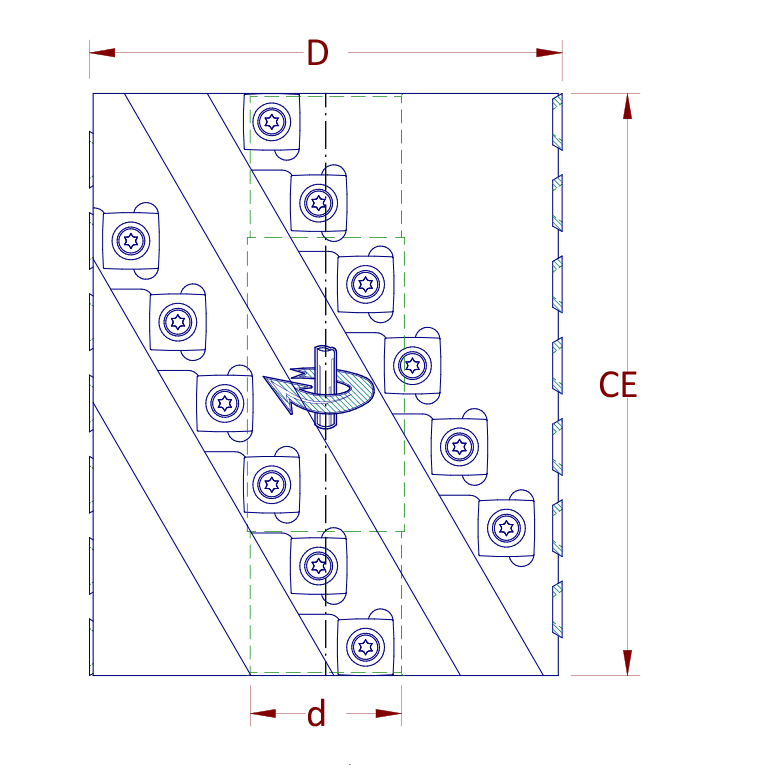

YouTube| Part | D | CE | Z | d | Spindle |
|---|---|---|---|---|---|
| 533F-100.060-02B | 100mm | 60mm | 2+2 | 1.2500" | Bottom/Left |
| 533F-100.060-03B | 100mm | 60mm | 3+3 | 1.2500" | Bottom/Left |
| 533F-100.100-02B | 100mm | 100mm | 2+2 | 1.2500" | Bottom/Left |
| 533F-100.100-03B | 100mm | 100mm | 3+3 | 1.2500" | Bottom/Left |
| 533F-100.150-02B | 100mm | 150mm | 2+2 | 1.2500" | Bottom/Left |
| 533F-100.150-02T | 100mm | 150mm | 2+2 | 1.2500" | Top/Right |
| 533F-100.240-02T | 100mm | 240mm | 2+2 | 40mm | Top/Right |
| 533F-125.060-03B | 125mm | 60mm | 3+3 | 40mm | Bottom/Left |
| 533F-125.060-03T | 125mm | 60mm | 3+3 | 40mm | Top/Right |
| 533F-125.060-03T-1.8 | 125mm | 60mm | 3+3 | 1.8125" | Bottom/Left |
| 533F-125.100-03B | 125mm | 100mm | 3+3 | 40mm | Bottom/Left |
| 533F-125.100-03B-1.5 | 125mm | 100mm | 3+3 | 1.5000" | Bottom/Left |
| 533F-125.100-03T | 125mm | 100mm | 3+3 | 40mm | Top/Right |
| 533F-125.100-03T-1.5 | 125mm | 100mm | 3+3 | 1.5000" | Top/Right |
| 533F-125.130-03B | 125mm | 130mm | 3+3 | 40mm | Bottom/Left |
| 533F-125.130-03T | 125mm | 130mm | 3+3 | 40mm | Top/Right |
| 533F-125.150-03B | 125mm | 150mm | 3+3 | 40mm | Bottom/Left |
| 533F-125.150-03T | 125mm | 150mm | 3+3 | 40mm | Top/Right |
| 533F-125.180-03B | 125mm | 180mm | 3+3 | 40mm | Bottom/Left |
| 533F-125.180-03T | 125mm | 180mm | 3+3 | 40mm | Top/Right |
| 533F-125.203-03B | 125mm | 203mm | 3+3 | 40mm | Bottom/Left |
| 533F-125.203-03T | 125mm | 203mm | 3+3 | 40mm | Top/Right |
| 533F-125.230-03B | 125mm | 230mm | 3+3 | 40mm | Bottom/Left |
| 533F-125.230-03B-1.5 | 125mm | 230mm | 3+3 | 1.5000" | Bottom/Left |
| 533F-125.230-03T-1.5 | 125mm | 230mm | 3+3 | 1.5000" | Top/Right |
| 533F-125.240-03B | 125mm | 240mm | 3+3 | 40mm | Bottom/Left |
| 533F-125.240-03B-1.5 | 125mm | 240mm | 3+3 | 1.5000" | Bottom/Left |
| 533F-125.240-03B-1.8 | 125mm | 240mm | 3+3 | 1.8125" | Bottom/Left |
| 533F-125.240-03T | 125mm | 240mm | 3+3 | 40mm | Top/Right |
| 533F-125.240-03T-1.5 | 125mm | 240mm | 3+3 | 1.5000" | Top/Right |
| 533F-125.240-03T-1.8 | 125mm | 240mm | 3+3 | 1.8125" | Top/Right |
| 533F-125.270-03B | 125mm | 270mm | 3+3 | 40mm | Bottom/Left |
| 533F-125.305-03B-1.8 | 125mm | 305mm | 3+3 | 1.8125" | Bottom/Left |
| 533F-125.305-03T | 125mm | 305mm | 3+3 | 40mm | Top/Right |
| 533F-125.305-03T-1.8 | 125mm | 305mm | 3+3 | 1.8125" | Bottom/Left |
| 533F-140.060-03B | 140mm | 60mm | 3+3 | 40mm | Bottom/Left |
| 533F-140.100-03B | 140mm | 100mm | 3+3 | 40mm | Bottom/Left |
| 533F-140.100-03T | 140mm | 100mm | 3+3 | 40mm | Top/Right |
| 533F-140.150-03B | 140mm | 150mm | 3+3 | 40mm | Bottom/Left |
| 533F-140.150-03T | 140mm | 150mm | 3+3 | 40mm | Top/Right |
| 533F-140.170-03B | 140mm | 175mm | 3+3 | 40mm | Bottom/Left |
| 533F-140.170-03T | 140mm | 175mm | 3+3 | 40mm | Top/Right |
| 533F-140.180-03B | 140mm | 187mm | 3+3 | 40mm | Bottom/Left |
| 533F-140.180-03T | 140mm | 187mm | 3+3 | 40mm | Top/Right |
| 533F-140.230-03B-1.8 | 140mm | 230mm | 3+3 | 1.8125" | Bottom/Left |
| 533F-140.230-03T-1.8 | 140mm | 230mm | 3+3 | 1.8125" | Top/Right |
| 533F-140.240-03B | 140mm | 240mm | 3+3 | 40mm | Bottom/Left |
| 533F-140.240-03T | 140mm | 240mm | 3+3 | 40mm | Top/Right |
