Filters
Filter Tools by Cutting Edge
| 30mm | |
| 40mm | |
| 60mm | |
| 80mm | |
| 100mm |
Filter by Saw Bore Size
| 1.2500" | |
| 1.5000" | |
| 1.8125" | |
| 40mm |
Filter by Number of Saw Teeth
| 2 | |
| 3 |

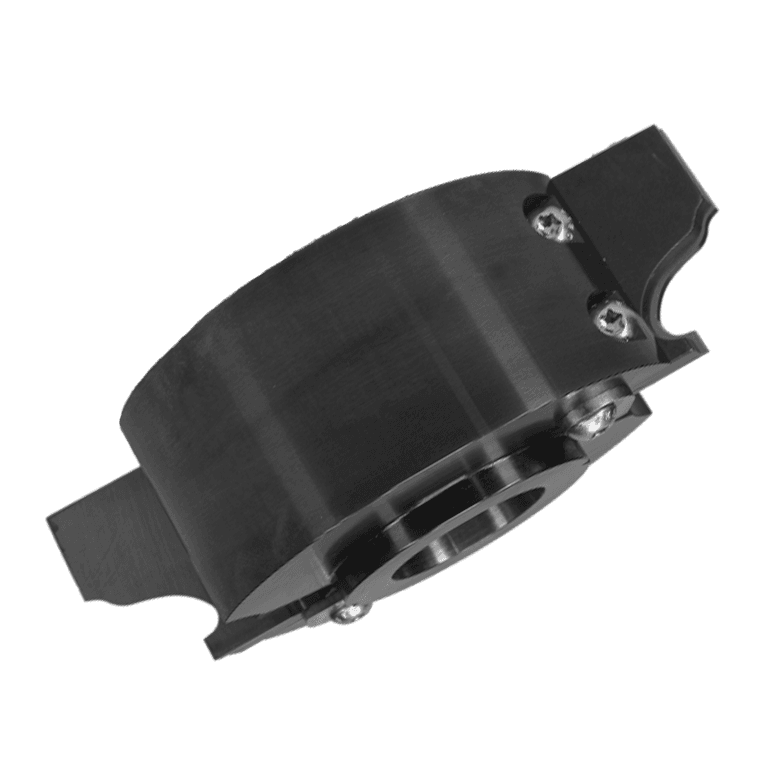

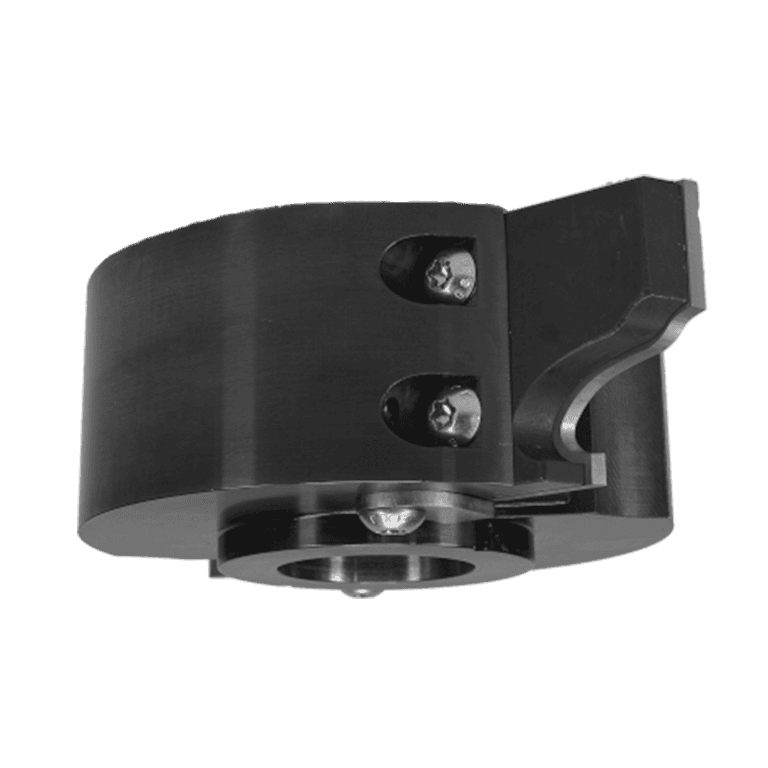

Multi-Profile Cutterheads
Semi-stock cutterheads can rotate in both directions using custom profiled knives & backers (sold separately). Cutterhead can run on shaper, moulder, or CNC router. Multi-profile system allows for profile swapping. To inquire about multi-profile cutterhead profiling options please contact: custom@royceayr.com
Sw
Hw
Pb
Fb
Pl
Industries
Moulding & Millwork

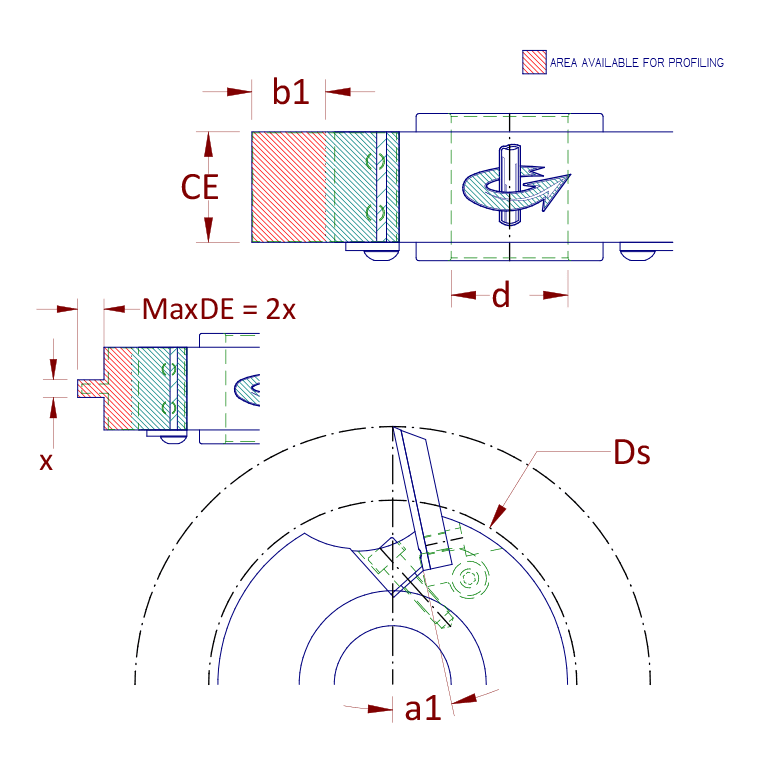

| Part | Ds | CE | b1 | a1 | Z | d |
|---|---|---|---|---|---|---|
| 555-100.030-2W | 100mm | 30mm | 25mm | 12° | 2 | 1.2500" |
| 555-100.030-3W | 100mm | 30mm | 25mm | 12° | 3 | 1.2500" |
| 555-100.040-2W | 100mm | 40mm | 25mm | 12° | 2 | 1.2500" |
| 555-100.040-3W | 100mm | 40mm | 25mm | 12° | 3 | 1.2500" |
| 555-100.060-2W | 100mm | 60mm | 25mm | 12° | 2 | 1.2500" |
| 555-100.060-3W | 100mm | 60mm | 25mm | 12° | 3 | 1.2500" |
| 555-125.030-2W | 125mm | 30mm | 25mm | 12° | 2 | 1.8125" |
| 555-125.030-2W-1.8 | 125mm | 30mm | 25mm | 12° | 2 | 40mm |
| 555-125.030-3W | 125mm | 30mm | 25mm | 12° | 3 | 40mm |
| 555-125.030-3W-1.5 | 125mm | 30mm | 25mm | 12° | 3 | 1.5000" |
| 555-125.030-3W-1.8 | 125mm | 30mm | 25mm | 12° | 3 | 1.8125" |
| 555-125.040-2W | 125mm | 40mm | 25mm | 12° | 2 | 40mm |
| 555-125.040-3W | 125mm | 40mm | 25mm | 12° | 3 | 40mm |
| 555-125.040-3W-1.8 | 125mm | 40mm | 25mm | 12° | 3 | 1.8125" |
| 555-125.060-2W | 125mm | 60mm | 25mm | 12° | 2 | 40mm |
| 555-125.060-3W | 125mm | 60mm | 25mm | 12° | 3 | 40mm |
| 555-125.060-3W-1.8 | 125mm | 60mm | 25mm | 12° | 3 | 1.8125" |
| 555-125.080-2W | 125mm | 80mm | 25mm | 12° | 2 | 40mm |
| 555-125.080-3W | 125mm | 80mm | 25mm | 12° | 3 | 40mm |
| 555-125.100-2W | 125mm | 100mm | 25mm | 12° | 2 | 40mm |
