555-100.040-2W

Semi-stock cutterheads can rotate in both directions using custom profiled knives & backers (sold separately). Cutterhead can run on shaper, or CNC router. Multi-profile system allows for profile swapping. To inquire about multi-profile cutterhead profiling options please contact: custom@royceayr.com

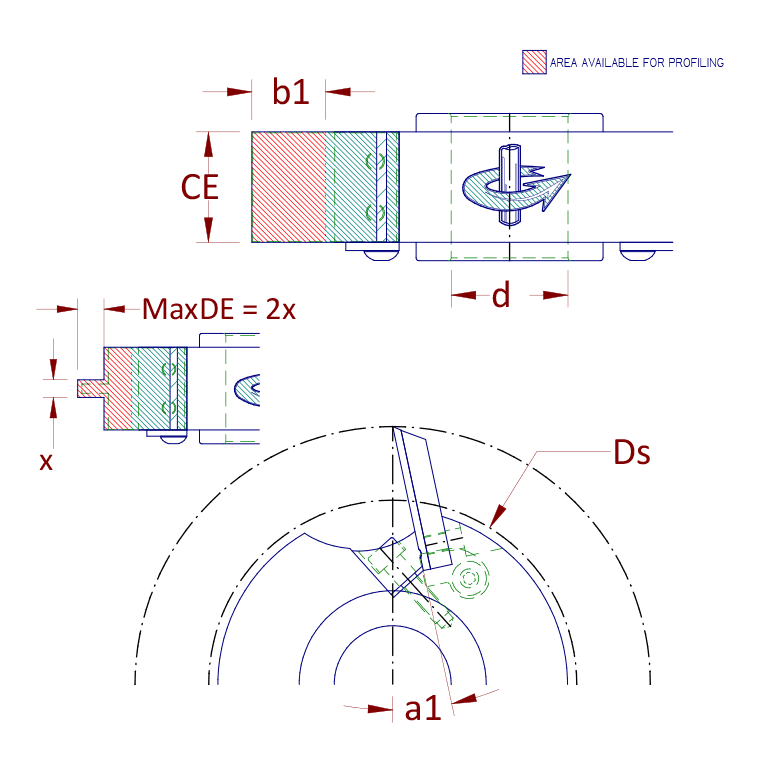

555-100.040-2W 1

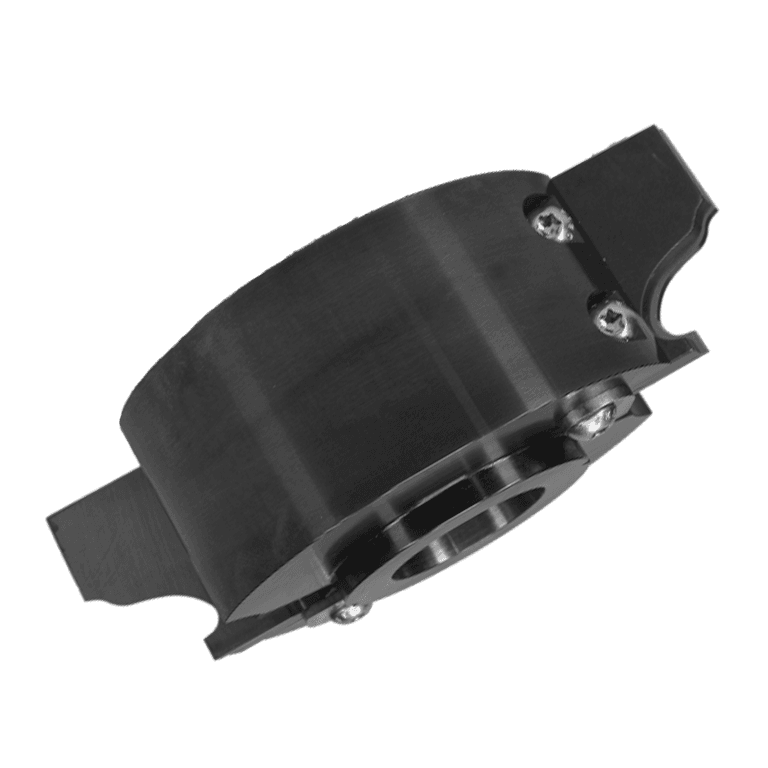

555-100.040-2W 2
Cutting Edge (CE)
40mm
Number of Wings/Flutes/Teeth (Z)
2
Material (Material)
HW
Angle Variable 1 (a1)
12°
Dimension Variable 1 (b1)
25mm
Small Diameter (Ds)
100mm
Bore Size (d)
1.2500"
