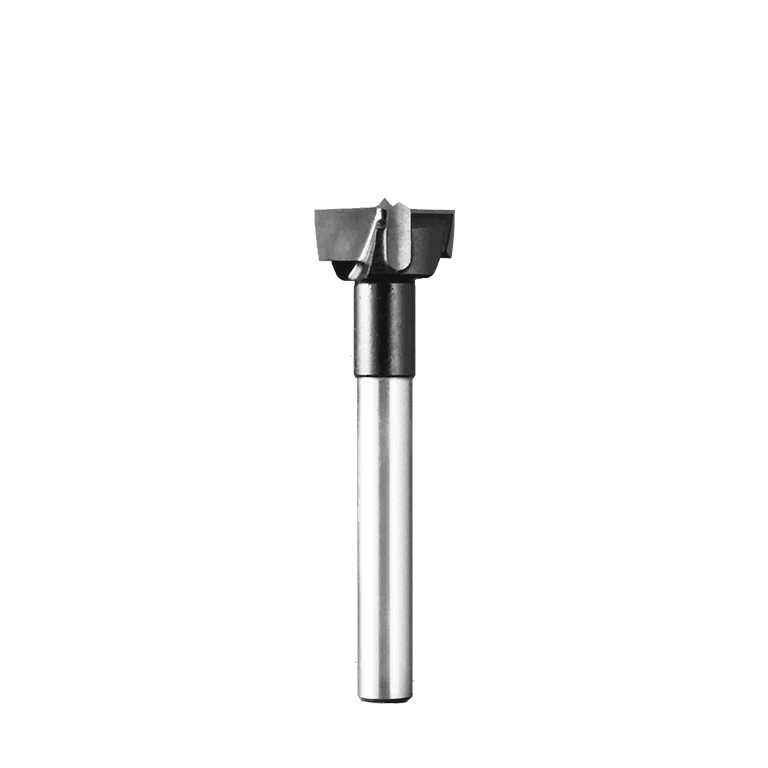

Carbide Tipped Boring Bits 2x2W
Designed with double flute with center point, two plunge wings and two spurs for drilling holes in wood, veneer, laminate and particle board. Designed for drill press machines. Available in right hand rotation only.
Hw
Sw
Pb
Fb
Lm
Pl
Machine Types
CNC Router
Industries
Cabinet & Casegoods Manufacturing

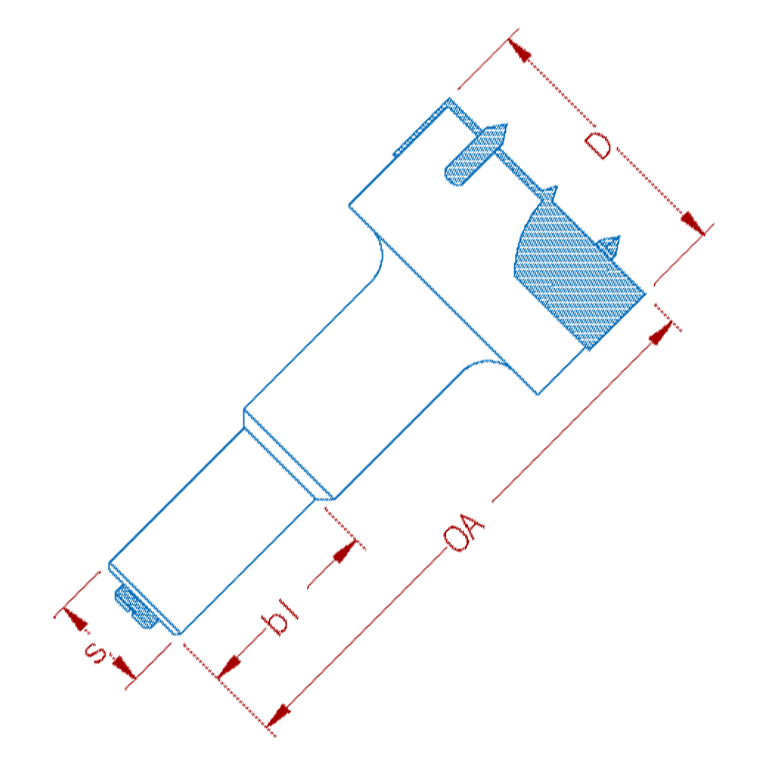

| Part | D | Sh | Z | Rotation | OA |
|---|---|---|---|---|---|
| D260.14R | 14mm | 10mm | 2+2 | RH | 90mm |
| D260.15R | 15mm | 10mm | 2+2 | RH | 90mm |
| D260.16R | 16mm | 10mm | 2+2 | RH | 90mm |
| D260.17R | 17mm | 10mm | 2+2 | RH | 90mm |
| D260.18R | 18mm | 10mm | 2+2 | RH | 90mm |
| D260.19R | 19mm | 10mm | 2+2 | RH | 90mm |
| D260.20R | 20mm | 10mm | 2+2 | RH | 90mm |
| D260.22R | 22mm | 10mm | 2+2 | RH | 90mm |
| D260.23R | 23mm | 10mm | 2+2 | RH | 90mm |
| D260.24R | 24mm | 10mm | 2+2 | RH | 90mm |
| D260.25R | 25mm | 10mm | 2+2 | RH | 90mm |
| D260.26R | 26mm | 10mm | 2+2 | RH | 90mm |
| D260.27R | 27mm | 10mm | 2+2 | RH | 90mm |
| D260.28R | 28mm | 10mm | 2+2 | RH | 90mm |
| D260.29R | 29mm | 10mm | 2+2 | RH | 90mm |
| D260.30R | 30mm | 10mm | 2+2 | RH | 90mm |
| D260.32R | 32mm | 10mm | 2+2 | RH | 90mm |
| D260.35R | 35mm | 10mm | 2+2 | RH | 90mm |
| D260.38R | 38mm | 10mm | 2+2 | RH | 90mm |
| D260.40R | 40mm | 10mm | 2+2 | RH | 90mm |
| D260.45R | 45mm | 10mm | 2+2 | RH | 90mm |
| D260.50R | 50mm | 10mm | 2+2 | RH | 90mm |
| D260.55R | 55mm | 10mm | 2+2 | RH | 90mm |
| D260.58R | 58mm | 10mm | 2+2 | RH | 90mm |
| D260.60R | 60mm | 10mm | 2+2 | RH | 90mm |
