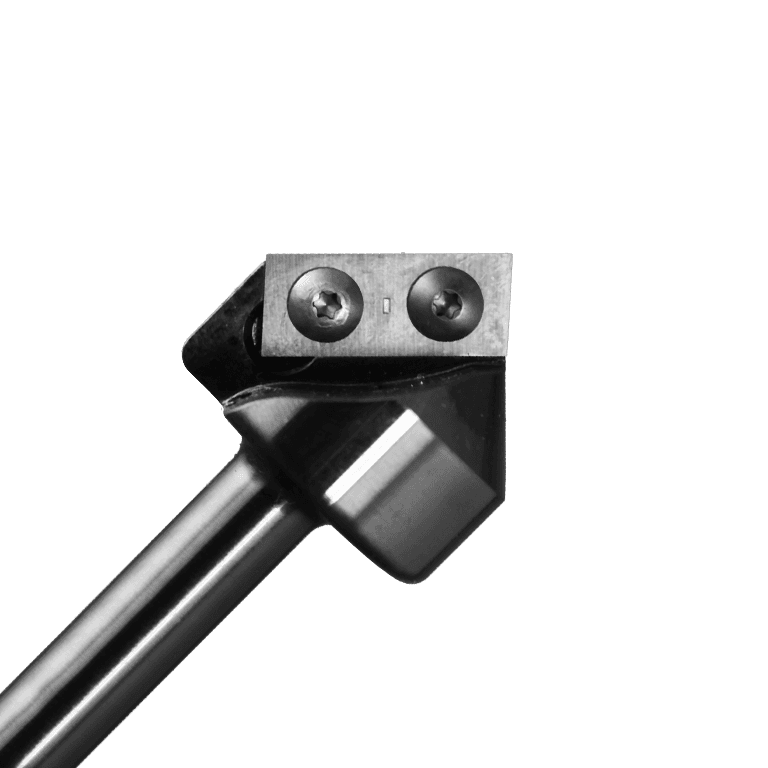

563-V23.060

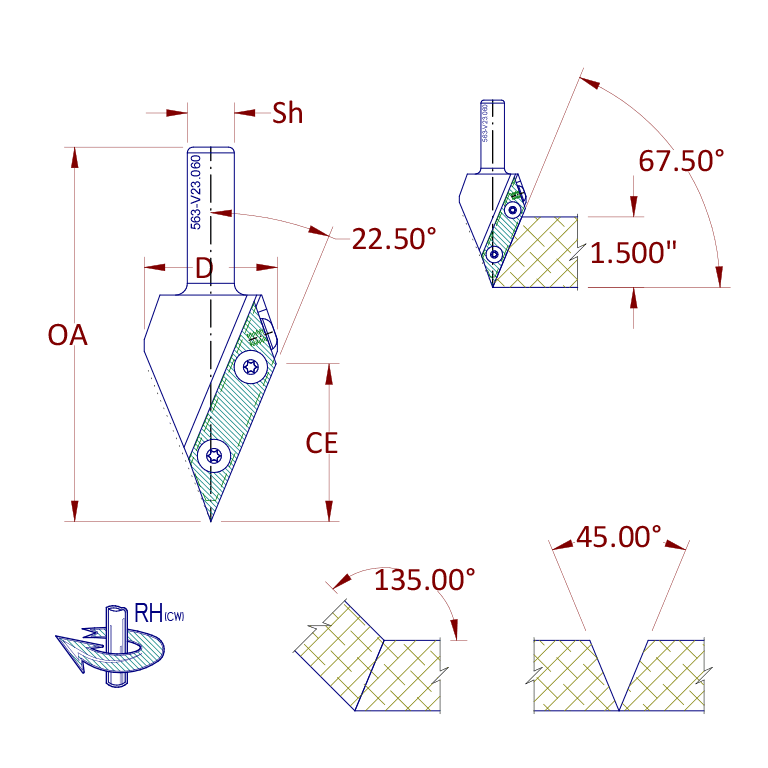

Great for doing folding applications on CNC routers in Solid Wood, MDF and Particle Board. 1 wing insert router with 22.50° cutting angle.

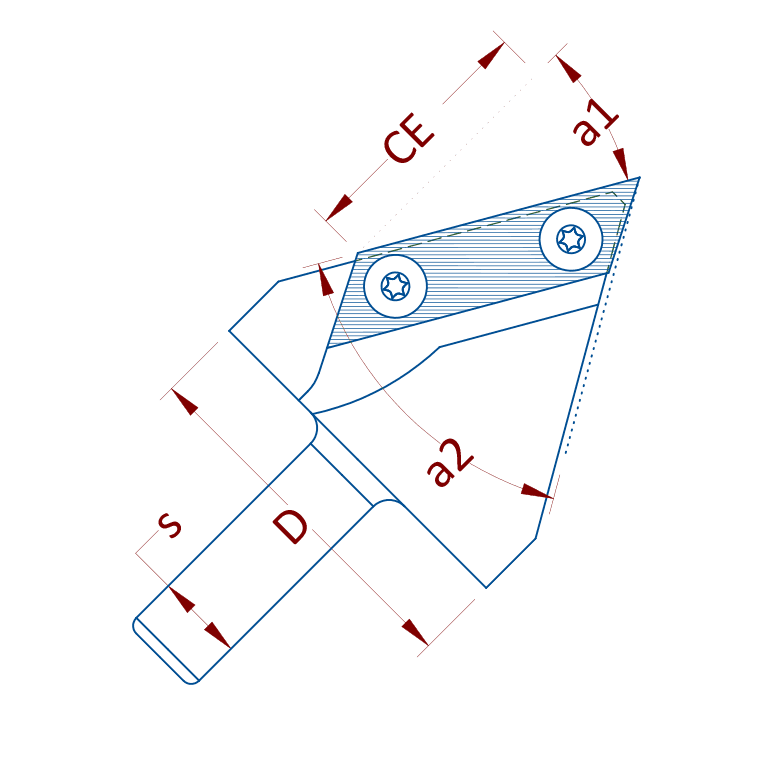

Diameter (D) | 35mm |
Cutting Edge (CE) | 1.675" |
Shank (Sh) | 0.500" |
Number of Wings/Flutes/Teeth (Z) | 1 |
Material (Material) | HW |
Angle Variable 1 (a1) | 22.50º |
Rotation (Rotation) | RH |
Angle Variable 2 (a2) | 45.00º |
Replacement Parts
| Part Number | Description | Quantity Per One |
|---|---|---|
| 595V-6012R-23 | Replacement Insert Knife | 1 |
| 580.RH-M3505.9 | Replacement Knife Screw | 2 |
