562SC.026-1W-C

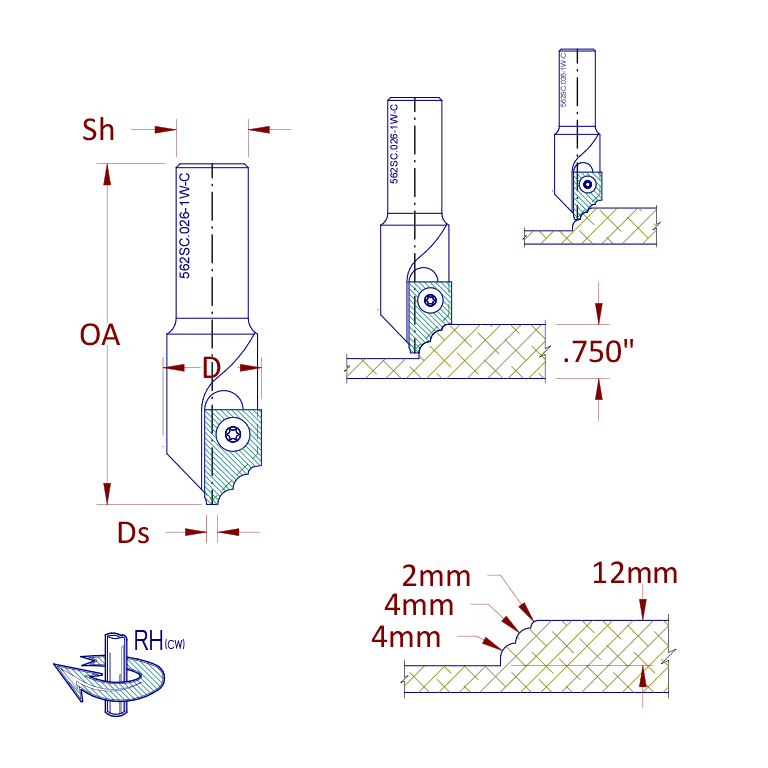

Includes 562SC.026-1W tool body with profiled insert "C" installed. Tool is used primarily when manufacturing MDF door profiles. Optional/replacement profiled inserts shown below.
Diameter (D) | 26mm |
Shank (Sh) | 0.750" |
Overall Length (OA) | 90mm |
Number of Wings/Flutes/Teeth (Z) | 1 |
Material (Material) | HW |
Rotation (Rotation) | RH |
Replacement Parts
| Part Number | Description | Quantity Per One |
|---|---|---|
| 562SC.026-1W | Replacement Tool Body | 1 |
| 158-562SC.026-1W-A | Optional Profiled Insert Knife | 1 |
| 158-562SC.026-1W-B | Optional Profiled Insert Knife | 1 |
| 158-562SC.026-1W-C | Replacement Insert Knife | 1 |
| 158-562SC.026-1W-D | Optional Profiled Insert Knife | 1 |
| 158-562SC.026-1W-E | Optional Profiled Insert Knife | 1 |
| 158-562SC.026-1W-F | Optional Profiled Insert Knife | 1 |
| 158-562SC.026-1W-G | Optional Profiled Insert Knife | 1 |
| 158-562SC.026-1W-H | Optional Profiled Insert Knife | 1 |
| 580.RH-M3505.9 | Replacement Knife Screw | 1 |
