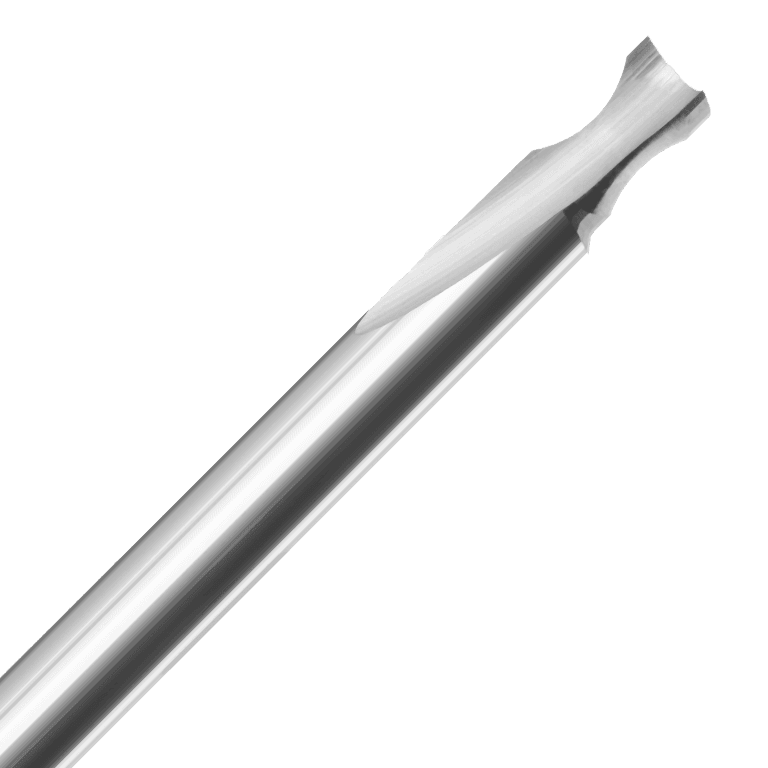

R66-02001
Designed for the POP display industry, made to apply a radius on the edge of plastics. Straight “O” flute design good for plastics.

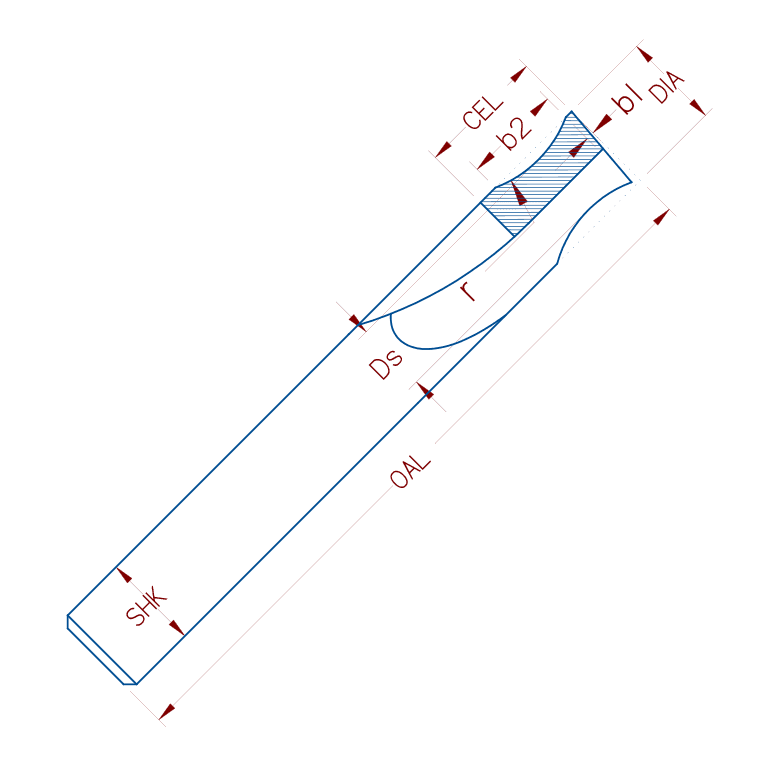

Diameter (D) | 0.2500" |
Cutting Edge (CE) | 0.375" |
Shank (Sh) | 0.250" |
Overall Length (OA) | 2.500" |
Coating Type (Coating) | None |
Number of Wings/Flutes/Teeth (Z) | 1 |
Material (Material) | HW |
Rotation (Rotation) | RH |
Dimension Variable 1 (b1) | 0.0625" |
Dimension Variable 2 (b2) | 0.15625" |
Radius Variable (r) | 0.125" |
Small Diameter (Ds) | 0.195" |
