Filters
Filter by Saw Kerf
115mm | |
170mm | |
240mm |
Indicates cutterhead position on machine.
Bottom/Left | |
Top/Right |

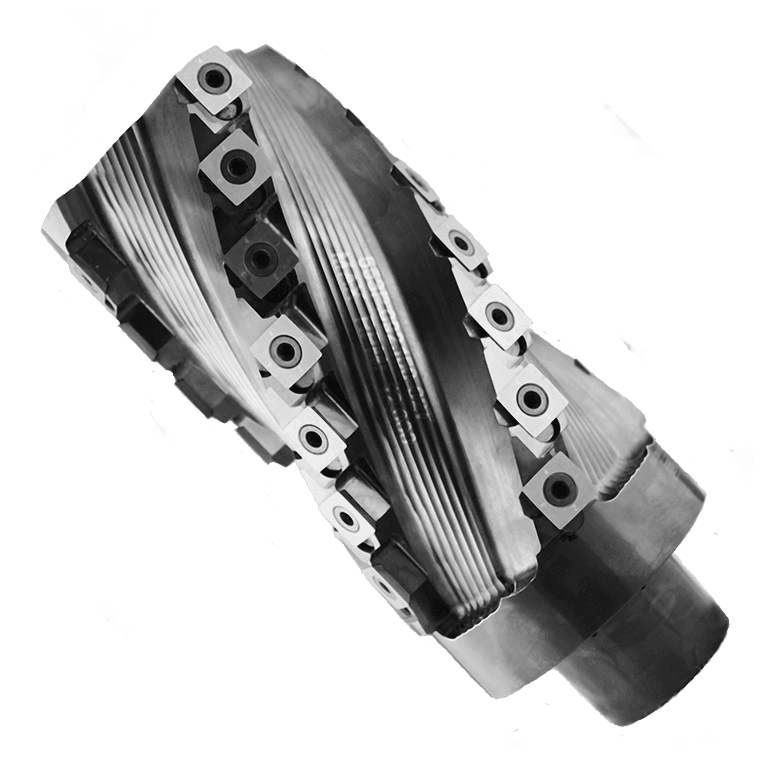

Spiralex Cutterheads for High Speed Moulders
Spiralex planing tools are great for general purpose planing on moulders. Low horse- power required to cut. Radius knives help minimize lines. Top and bottom heads for different spiral directions that draw the chips towards the spindle base. HSK80W adapter for high speed moulders. Integrated one piece tool for maximum rigidity and accuracy. Shallow gullets for reduced noise levels.
Hw
Sw
Fb
Pl
Hp
Sp
Machine Types
Moulder
Industries
Moulding & Millwork
MDF Door Manufacturing
Stairs & Railings
Primary Wood

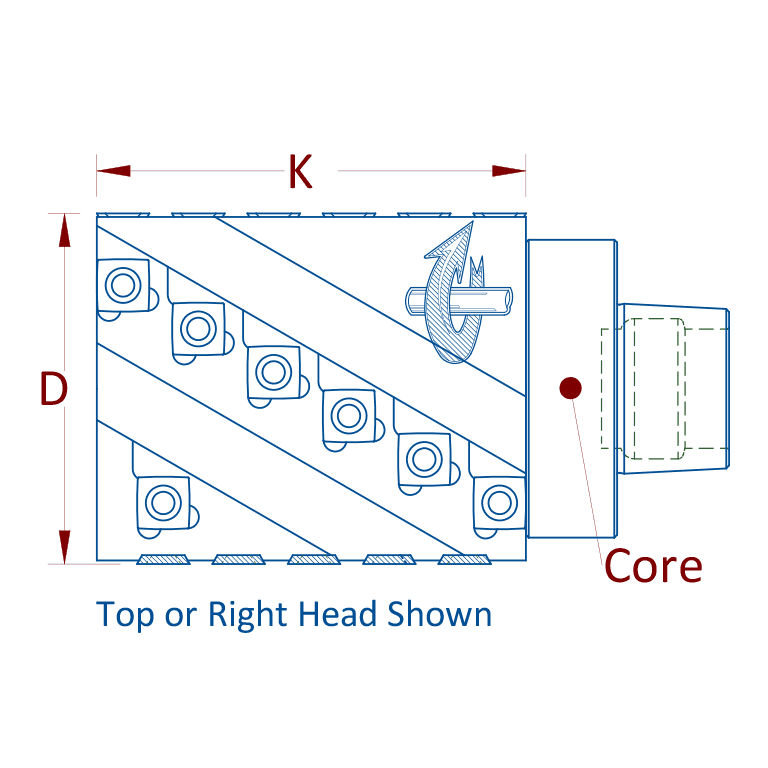

Part | D | K | Z | Core | Spindle |
---|---|---|---|---|---|
533P.100.115-2B | 100mm | 115mm | 2+2 | HSK80W | Bottom/Left |
533P.100.115-2T | 100mm | 115mm | 2+2 | HSK80W | Top/Right |
533P.100.170-02B | 100mm | 170mm | 2+2 | HSK80W | Bottom/Left |
533P.100.170-02T | 100mm | 170mm | 2+2 | HSK80W | Top/Right |
533P.100.240-02B | 100mm | 240mm | 2+2 | HSK80W | Bottom/Left |
533P.100.240-02T | 100mm | 240mm | 2+2 | HSK80W | Top/Right |
