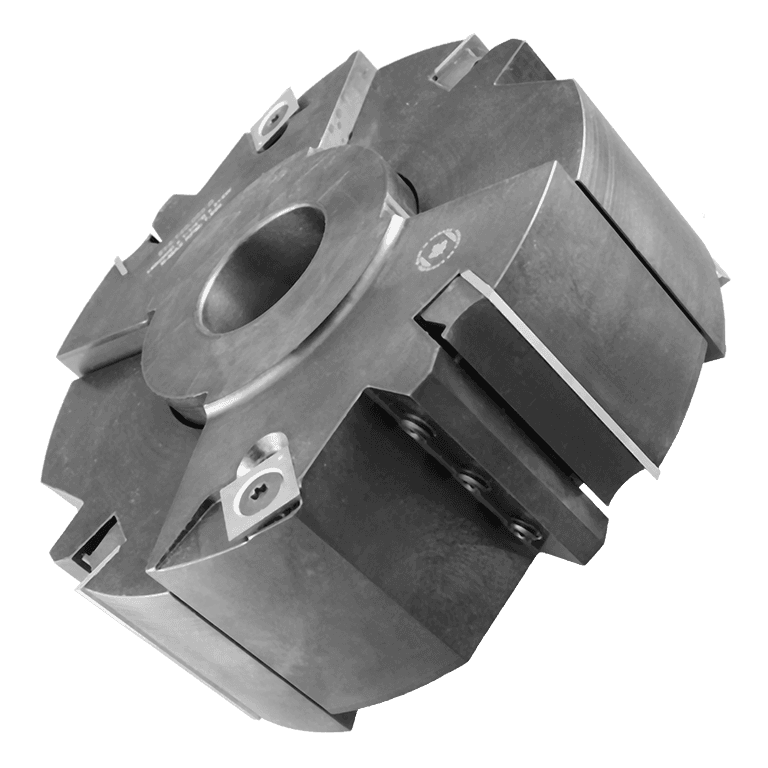

Adjustable Rebate TOK Cutterheads
Insert groover for various machines. Inserts have 4 cutting edges that can be rotated when dull. Tools can be adjusted with shims. Shims & spacers sold separately.
Hw
Sw
Pb
Fb
Pl
Machine Types
ShaperMoulder
Industries
Stairs & Railings
Moulding & Millwork
Cabinet & Casegoods Manufacturing

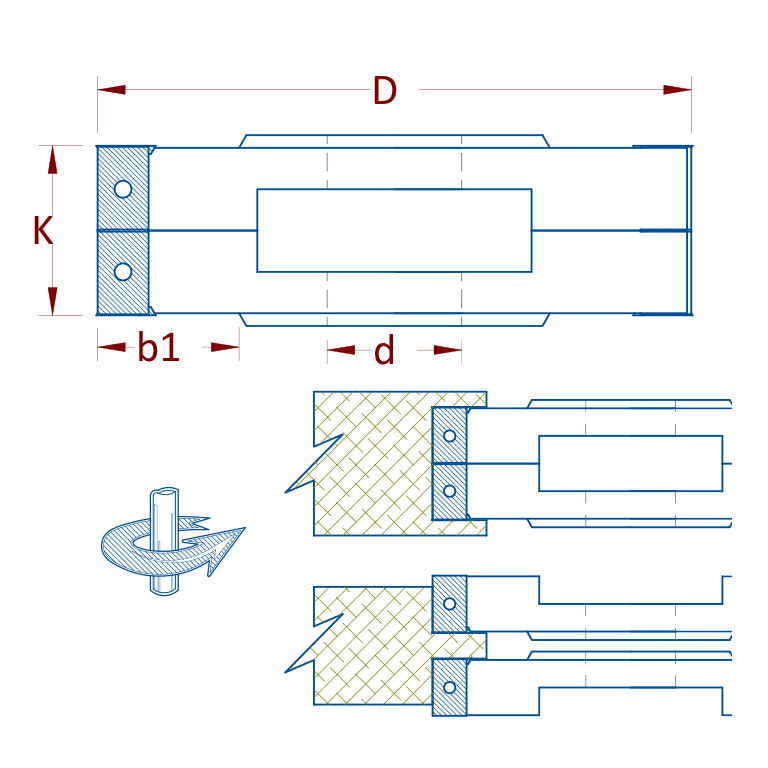

| Part | D | K | b1 | Z | d |
|---|---|---|---|---|---|
| 514-120.030 | 120mm | 30.5-60mm | 30mm | 2+2+2+2 | 1.2500" |
| 514-140.020 | 140mm | 20.5-40mm | 33mm | 2+2+2+2 | 1.2500" |
| 514-140.030 | 140mm | 30.5-60mm | 33mm | 2+2+2+2 | 1.2500" |
| 514-140.050 | 140mm | 50.5-100mm | 33mm | 2+2+2+2 | 1.2500" |
| 514-140.050.40 | 140mm | 50.5-100mm | 33mm | 2+2+2+2 | 40mm |
| 514-180.020 | 180mm | 20.5-40mm | 43mm | 2+2+2+2 | 1.2500" |
| 514-180.030 | 180mm | 30.5-60mm | 43mm | 2+2+2+2 | 1.2500" |
| 514-180.050 | 180mm | 50.5-100mm | 43mm | 2+2+2+2 | 1.2500" |
