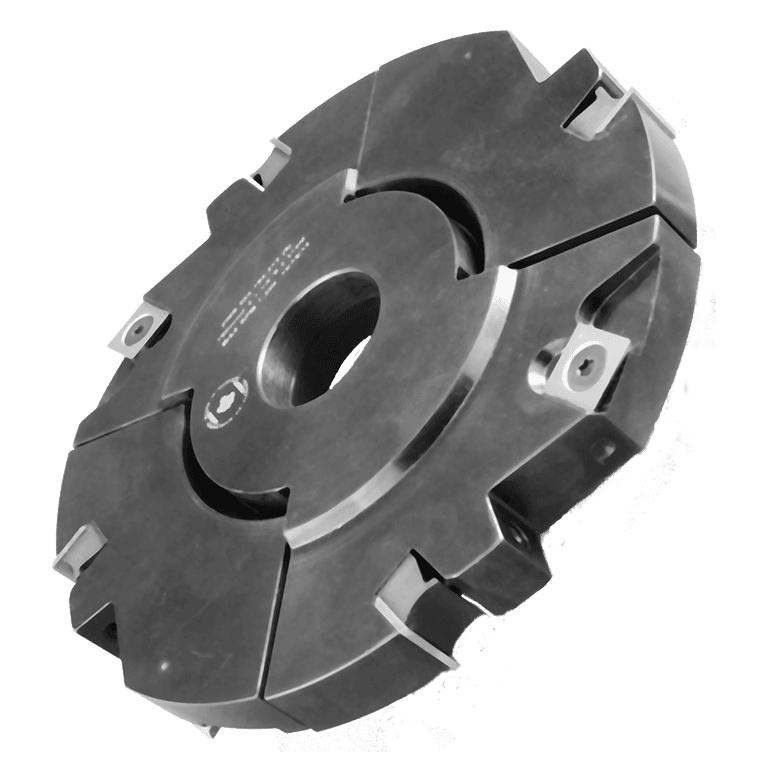

Adjustable Grooving TOK Cutterheads
Insert groover for shapers. Inserts have 4 cutting edges that can be rotated when dull. Spurs allow a groove to be cut in wood. Tools can be adjusted with shims. Shims sold separately.
Hw
Sw
Pb
Fb
Pl
Machine Types
Shaper
Industries
Cabinet & Casegoods Manufacturing
Moulding & Millwork
Stairs & Railings

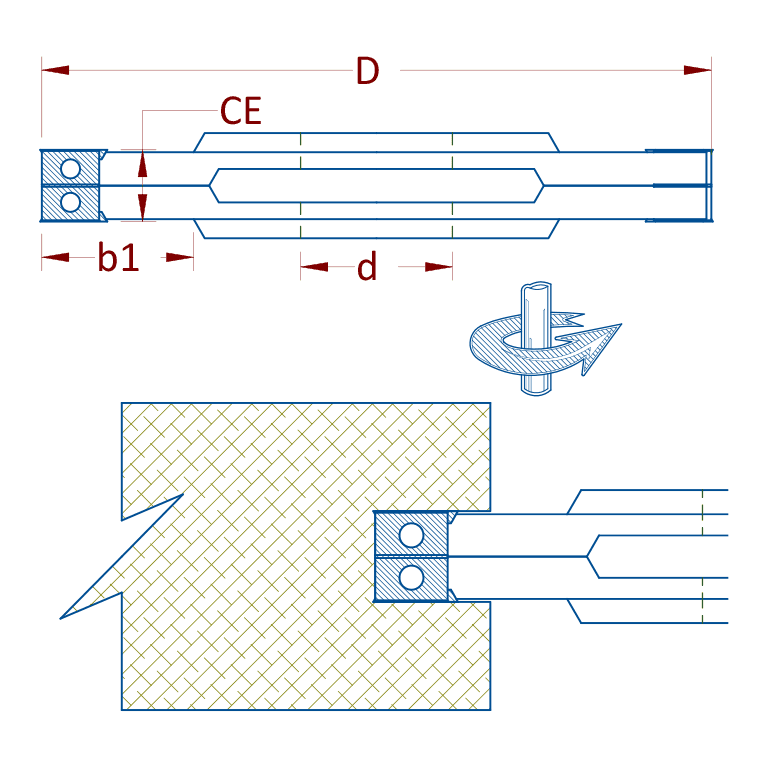

| Part | D | K | b1 | Z | d |
|---|---|---|---|---|---|
| 502-140.008 | 140mm | 8-15mm | 31mm | 2+2+2+2 | 1.2500" |
| 502-140.015 | 140mm | 15-30mm | 31mm | 2+2+2+2 | 1.2500" |
| 502-160.015 | 160mm | 15-30mm | 32mm | 2+2+2+2 | 1.2500" |
| 502-180.004 | 180mm | 4-7.5mm | 39mm | 2+2+2+2 | 1.2500" |
| 502-180.008 | 180mm | 8-15mm | 40mm | 2+2+2+2 | 1.2500" |
| 502-180.015 | 180mm | 15-30mm | 40mm | 2+2+2+2 | 1.2500" |
| 502E-140.008 | 140mm | 8mm | 2 | 1.2500" | |
| 502E-140.015 | 140mm | 15mm | 2 | 1.2500" | |
| 502E-180.008 | 180mm | 8mm | 2 | 1.2500" | |
| 502E-180.015 | 180mm | 15mm | 2 | 1.2500" |
