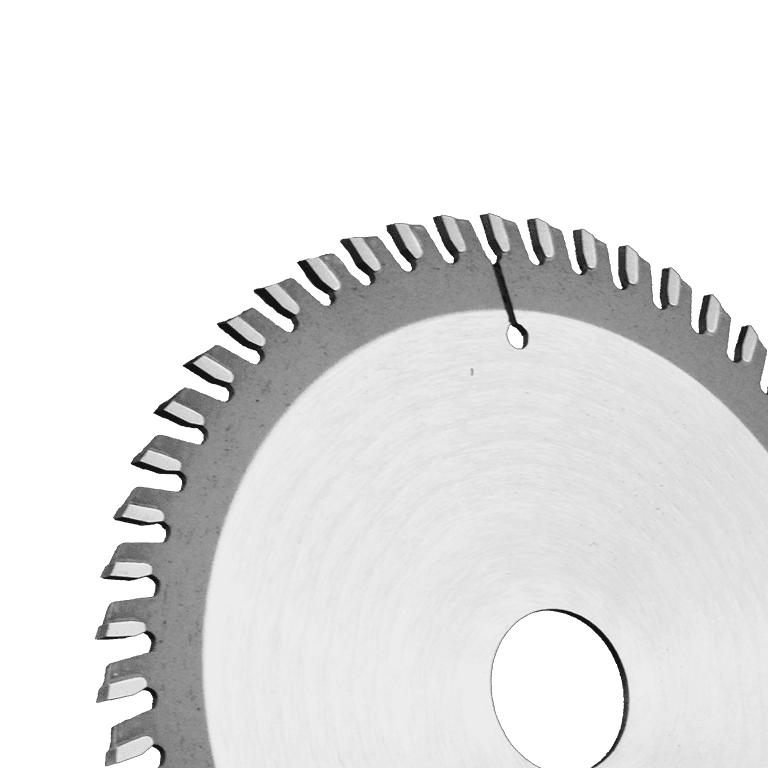

Universal Scoring Saw Blades
Universal scoring saws. Used on double end tenoning machines for scoring laminates and veneers to prevent chipping on bottom of the cut.
Pb
Fb
Lm
Pl
Machine Types
Tenoner Specialty
Industries
Cabinet & Casegoods Manufacturing
Stairs & Railings
Window and Door

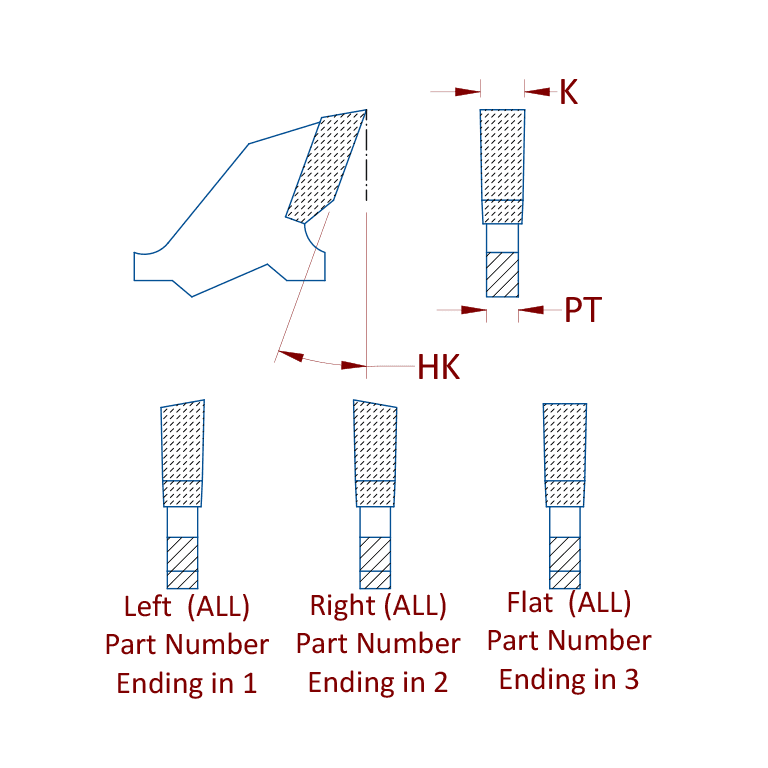

| Part | D | K | Z | d | Pinholes | PT | HK | Line |
|---|---|---|---|---|---|---|---|---|
| 08150301 | 150mm | 3.2mm | 30 | 30mm | 2.2mm | 10º | Industrial | |
| 08150302 | 150mm | 3.2mm | 30 | 30mm | 2.2mm | 10º | Industrial | |
| 08150303 | 150mm | 3.2mm | 30 | 30mm | 2.2mm | 10º | Industrial | |
| 08150303-40B | 150mm | 3.2mm | 30 | 40mm | 2.2mm | 10º | Industrial | |
| 08150481 | 150mm | 3.2mm | 48 | 30mm | 2.2mm | 10º | Industrial | |
| 08150482 | 150mm | 3.2mm | 48 | 30mm | 2.2mm | 10º | Industrial | |
| 08150483-30B | 150mm | 3.2mm | 48 | 30mm | 2.2mm | 10º | Industrial | |
| 08150483-60B | 150mm | 3.2mm | 48 | 60mm | 2.2mm | 10º | Industrial | |
| 08180361 | 180mm | 3.2mm | 36 | 30mm | 2.2mm | 10º | Industrial | |
| 08180362 | 180mm | 3.2mm | 36 | 30mm | 2.2mm | 10º | Industrial | |
| 08180541 | 180mm | 3.2mm | 54 | 30mm | 2.2mm | 10º | Industrial | |
| 08180542 | 180mm | 3.2mm | 54 | 30mm | 2.2mm | 10º | Industrial | |
| 08180543-30B | 180mm | 3.2mm | 54 | 30mm | 2.2mm | 10º | Industrial | |
| 08200481 | 8" | 3.2mm | 48 | 0.625" | 2.2mm | 10º | Industrial | |
| 08200482 | 8" | 3.2mm | 48 | 0.625" | 2.2mm | 10º | Industrial | |
| 08200483 | 8" | 3.2mm | 48 | 0.625" | 2.2mm | 10º | Industrial | |
| 08200601 | 8" | 3.2mm | 60 | 0.625" | 2.2mm | 10º | Industrial | |
| 08200602 | 8" | 3.2mm | 60 | 0.625" | 2.2mm | 10º | Industrial | |
| 08200603 | 8" | 3.2mm | 60 | 0.625" | 2.2mm | 10º | Industrial |
