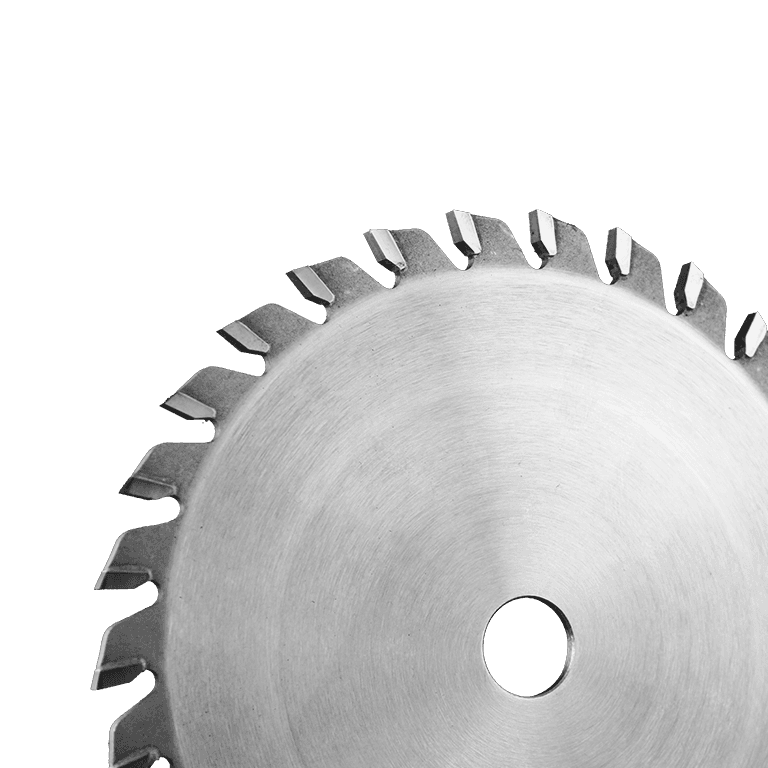

Tapered Scoring Saw Blades
Tapered Scoring Saw Blades for use on sliding table saws, kerf of scoring unit is adjusted by moving the saw deeper into the material. Micrograin carbide and premium grinding provide optimum tool life.
Lm
Fb
Pl
Pb
Machine Types
Panel Saw
Industries
Cabinet & Casegoods Manufacturing

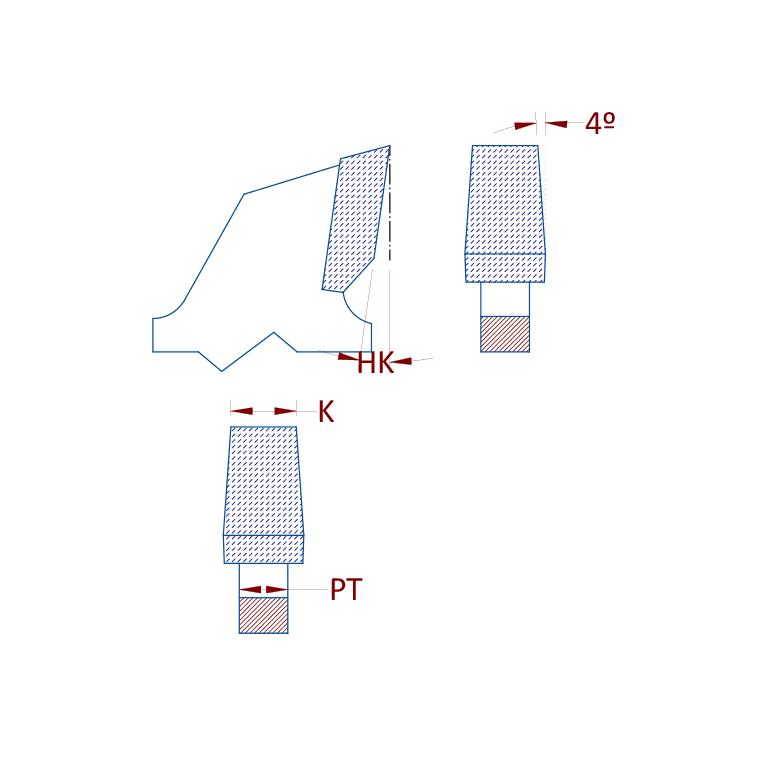

| Part | D | Z | d | PT | K | HK | Pinholes | Line |
|---|---|---|---|---|---|---|---|---|
| 07080163220 | 80mm | 16 | 20mm | 2.2mm | 3.1 - 4.1mm | 8º | Industrial | |
| 07100243210 | 100mm | 24 | 1.000" | 2.2mm | 3.1 - 4.1mm | 8º | Industrial | |
| 07100243520 | 100mm | 24 | 20mm | 2.5mm | 3.4 - 4.4mm | 8º | Industrial | |
| 07100244020 | 100mm | 24 | 20mm | 3.0mm | 3.9 - 4.9mm | 8º | Industrial | |
| 07110243520 | 110mm | 24 | 20mm | 2.5mm | 3.4 - 4.4mm | 8º | Industrial | |
| 07110244020 | 110mm | 24 | 20mm | 3.0mm | 3.9 - 4.9mm | 8º | Industrial | |
| 07115243520 | 115mm | 24 | 20mm | 2.5mm | 3.4 - 4.4mm | 8º | Industrial | |
| 07115244020 | 115mm | 24 | 20mm | 3.0mm | 3.9 - 4.9mm | 8º | Industrial | |
| 07120243520 | 120mm | 24 | 20mm | 2.5mm | 3.4 - 4.4mm | 8º | Industrial | |
| 07120243534 | 120mm | 24 | 0.750" | 2.5mm | 3.4 - 4.4mm | 8º | Industrial | |
| 07120244020 | 120mm | 24 | 20mm | 3.0mm | 3.9 - 4.9mm | 8º | Industrial | |
| 07120244034 | 120mm | 24 | 0.750" | 3.0mm | 3.9 - 4.9mm | 8º | Industrial | |
| 07125243220U | 125mm | 24 | 20mm | 2.2mm | 3.2 - 4.2mm | 8º | Ultima | |
| 07125243520 | 125mm | 24 | 20mm | 2.5mm | 3.4 - 4.4mm | 8º | Industrial | |
| 07125243522 | 125mm | 24 | 22mm | 2.5mm | 3.4 - 4.4mm | 8º | Industrial | |
| 07125243534 | 125mm | 24 | 0.750" | 2.5mm | 3.4 - 4.4mm | 8º | Industrial | |
| 07125244020 | 125mm | 24 | 20mm | 3.0mm | 3.9 - 4.9mm | 8º | Industrial | |
| 07125244420U | 125mm | 24 | 20mm | 3.2mm | 4.4 - 5.4mm | 8º | Ultima | |
| 07125244422U | 125mm | 24 | 22mm | 3.2mm | 4.4 - 5.4mm | 8º | Ultima | |
| 07125244445U | 125mm | 24 | 45mm | 3.2mm | 4.4 - 5.4mm | 8º | Ultima | |
| 07125244845U | 125mm | 24 | 45mm | 3.5mm | 4.8 - 5.8mm | 8º | Ultima | |
| 07127244445U | 127mm | 24 | 45mm | 3.2mm | 4.4 - 5.4mm | 8º | Ultima | |
| 07140244445U | 140mm | 24 | 45mm | 3.2mm | 4.4 - 5.4mm | 8º | Ultima | |
| 07140323216U | 140mm | 32 | 16mm | 2.2mm | 3.2 - 4.2mm | 8º | 1/6/33 | Ultima |
| 07150243520 | 150mm | 24 | 20mm | 2.5mm | 3.4 - 4.4mm | 8º | Industrial | |
| 07150244020 | 150mm | 24 | 20mm | 3.0mm | 3.9 - 4.9mm | 8º | Industrial | |
| 07150244411U | 150mm | 24 | 1.250" | 3.2mm | 4.4 - 5.4mm | 8º | Ultima | |
| 07150244420U | 150mm | 24 | 20mm | 3.2mm | 4.4 - 5.4mm | 8º | Ultima | |
| 07150244430U | 150mm | 24 | 30mm | 3.2mm | 4.4 - 5.4mm | 8º | Ultima | |
| 07150364411U * | 150mm | 36 | 1.250" | 3.2mm | 4.4 - 5.4mm | 8º | Ultima | |
| 07150364430U | 150mm | 36 | 30mm | 3.2mm | 4.4 - 5.4mm | 8º | Ultima | |
| 07150364455U * | 150mm | 36 | 55mm | 3.2mm | 4.4 - 5.4mm | 8º | 3/7/66 | Ultima |
| 07160284445U | 160mm | 28 | 45mm | 3.2mm | 4.4 - 5.4mm | 8º | 3/11/70 | Ultima |
| 07160364455U | 160mm | 36 | 55mm | 3.2mm | 4.4 - 5.4mm | 8º | 3/7/66 | Ultima |
| 07160364855U | 160mm | 36 | 55mm | 3.5mm | 4.8 - 5.8mm | 8º | 3/7/66 | Ultima |
| 07175284445U | 175mm | 28 | 45mm | 3.2mm | 4.4 - 5.4mm | 8º | Ultima | |
| 07175364845U | 175mm | 36 | 45mm | 3.5mm | 4.8 - 5.8mm | 8º | Ultima | |
| 07180304420U | 180mm | 30 | 20mm | 3.2mm | 4.4 - 5.4mm | 8º | Ultima | |
| 07180304430U | 180mm | 30 | 30mm | 3.2mm | 4.4 - 5.4mm | 8º | 2/10/60 | Ultima |
| 07180304445U | 180mm | 30 | 45mm | 3.2mm | 4.4 - 5.4mm | 8º | Ultima | |
| 07180364430U | 180mm | 36 | 30mm | 3.2mm | 4.4 - 5.4mm | 8º | Ultima | |
| 07180364445U | 180mm | 36 | 45mm | 3.2mm | 4.4 - 5.4mm | 8º | Ultima | |
| 07180364845U | 180mm | 36 | 45mm | 3.5mm | 4.8 - 5.8mm | 8º | Ultima | |
| 07180423216U | 180mm | 42 | 16mm | 2.2mm | 3.2 - 4.2mm | 8º | 1/6/33 | Ultima |
| 07180444450U | 180mm | 44 | 50mm | 3.2mm | 4.4 - 5.4mm | 12º | 3/12.5/80 | Ultima |
| 07200364420U | 200mm | 36 | 20mm | 3.2mm | 4.4 - 5.4mm | 8º | Ultima | |
| 07200364430U * | 200mm | 36 | 30mm | 3.2mm | 4.4 - 5.4mm | 8º | 2/10/60 | Ultima |
| 07200364445U | 200mm | 36 | 45mm | 3.2mm | 4.4 - 5.4mm | 8º | Ultima | |
| 07200364465U | 200mm | 36 | 65mm | 3.2mm | 4.4 - 5.4mm | 8º | 2/9/100 + 2/9/110 | Ultima |
| 07200364820U | 200mm | 36 | 20mm | 3.5mm | 4.8 - 5.8mm | 8º | Ultima | |
| 07200364845U | 200mm | 36 | 45mm | 3.5mm | 4.8 - 5.8mm | 8º | Ultima | |
| 07200364865U | 200mm | 36 | 65mm | 3.5mm | 4.8 - 5.8mm | 8º | 2/9/100 + 2/9/110 | Ultima |
| 07200365020U | 200mm | 36 | 20mm | 3.5mm | 5.0 - 6.0mm | 8º | Ultima | |
| 07200365845U | 200mm | 36 | 45mm | 4.0mm | 5.8 - 6.8mm | 8º | Ultima | |
| 07200366220U | 200mm | 36 | 20mm | 4.0mm | 6.2 - 7.2mm | 8º | Ultima | |
| 07200444450U | 200mm | 44 | 50mm | 3.2mm | 4.4 - 5.4mm | 12º | 3/13/80 | Ultima |
| 07215424450U | 215mm | 42 | 50mm | 3.2mm | 4.4 - 5.4mm | 8º | 3/15/80 | Ultima |
| 07215424850U "ATB" | 215mm | 42 | 50mm | 3.5mm | 4.8 - 5.8mm | 8º | 3/15/80 | Ultima |
| 07300484420U | 300mm | 48 | 20mm | 3.2mm | 4.4 - 5.4mm | 8º | Ultima | |
| 07300484430U | 300mm | 48 | 30mm | 3.2mm | 4.4 - 5.4mm | 8º | Ultima | |
| 07300484450U | 300mm | 48 | 50mm | 3.2mm | 4.4 - 5.4mm | 8º | 3/15/80 | Ultima |
| 07300484465U | 300mm | 48 | 65mm | 3.2mm | 4.4 - 5.4mm | 8º | 2/9/100 + 2/9/110 | Ultima |
| 07320484845U | 320mm | 48 | 45mm | 3.5mm | 4.8 - 5.8mm | 8º | Ultima |
