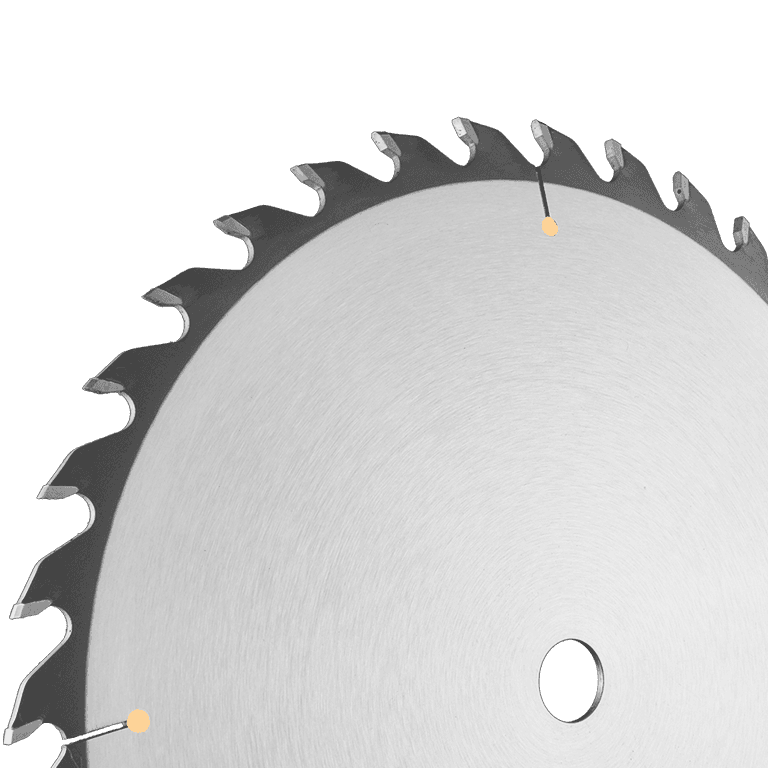

Thin Kerf Glue Joint Rip Saw Blades
Thin kerf rip saw blade for single line and gang rip saws. Thin kerf saws increase lumber yields on gang saws and require less horsepower to cut. Unique tooth design to produce smooth finish for Glue Joints.
Hw
Sw
Machine Types
RipsawTable Saw
Industries
Moulding & Millwork
Stairs & Railings

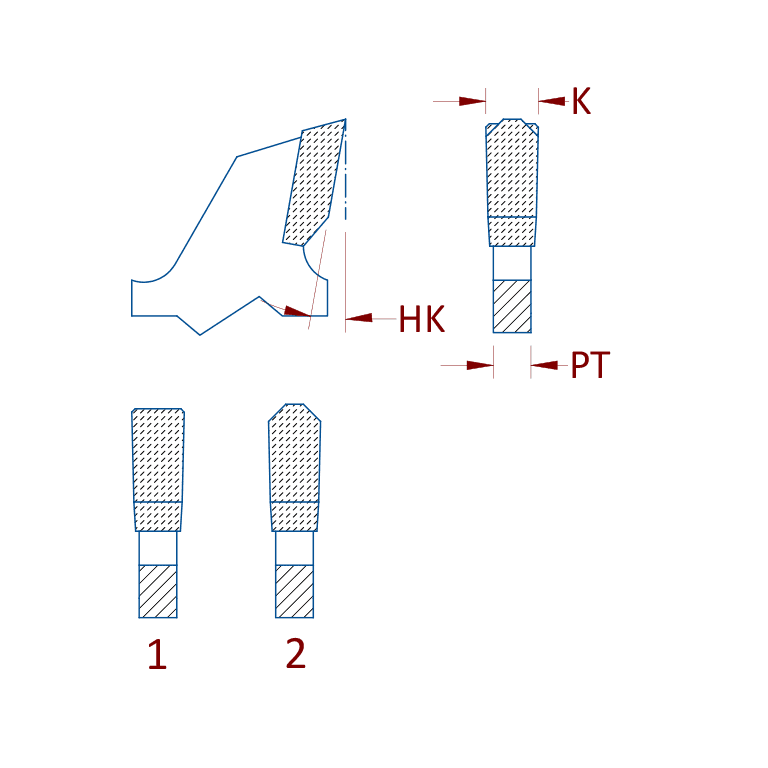

| Part | D | Z | d | PT | K | HK | Pinholes | Keyways | Line |
|---|---|---|---|---|---|---|---|---|---|
| 12120361-TK | 12" | 36 | 1.000" | 2.2mm | 3.2mm | 20º | Industrial | ||
| 12120361U-TK | 12" | 36 | 1.000" | 2.2mm | 3.2mm | 20º | Ultima | ||
| 12120363-TK | 12" | 36 | 3.125" | 2.2mm | 3.2mm | 20º | 1KW/.250/.250"" | Industrial | |
| 12120363U-TK | 12" | 36 | 3.125" | 2.2mm | 3.2mm | 20º | 1KW/.250/.250"" | Ultima | |
| 12120427TK | 12" | 42 | 70mm | 2.2mm | 3.2mm | 20º | Industrial | ||
| 12120427U-TK | 12" | 42 | 70mm | 2.2mm | 3.2mm | 20º | Ultima | ||
| 12300288TK | 300mm | 28 | 80mm | 2.0mm | 2.8mm | 20º | 4/6.5/95 + 2/13/100 | 2KW/13.5/3.5 | Industrial |
| 12300288U-TK | 300mm | 28 | 80mm | 2.0mm | 2.8mm | 20º | 4/6.5/95 + 2/13/100 | 2KW/13.5/3.5 | Ultima |
| 12300368TK | 300mm | 36 | 80mm | 2.0mm | 2.8mm | 20º | 4/6.5/95 + 2/13/100 | 2KW/13.5/3.5 | Industrial |
| 12300368U-TK | 300mm | 36 | 80mm | 2.0mm | 2.8mm | 20º | 4/6.5/95 + 2/13/100 | 2KW/13.5/3.5 | Ultima |
| 12300488TK | 300mm | 48 | 80mm | 2.0mm | 2.8mm | 20º | 4/6.5/95 + 2/13/100 | 2KW/13.5/3.5 | Industrial |
