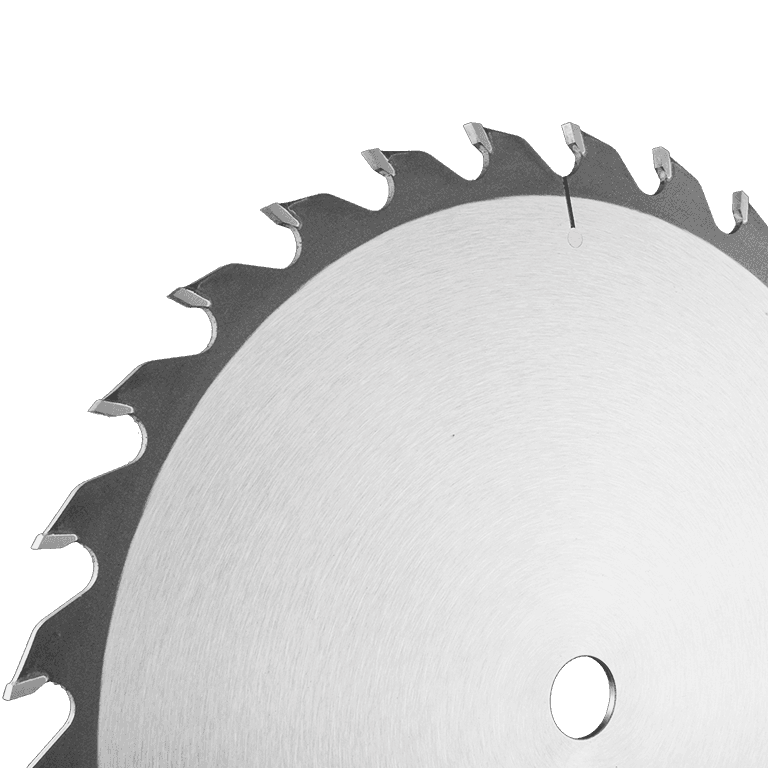

Standard Rip Saw Blades
General saw blade for ripping soft and hard wood. Used on table, single line, and gang ripsaws.
Hw
Sw
Pl
Machine Types
Table SawRipsaw
Industries
Moulding & Millwork
Stairs & Railings

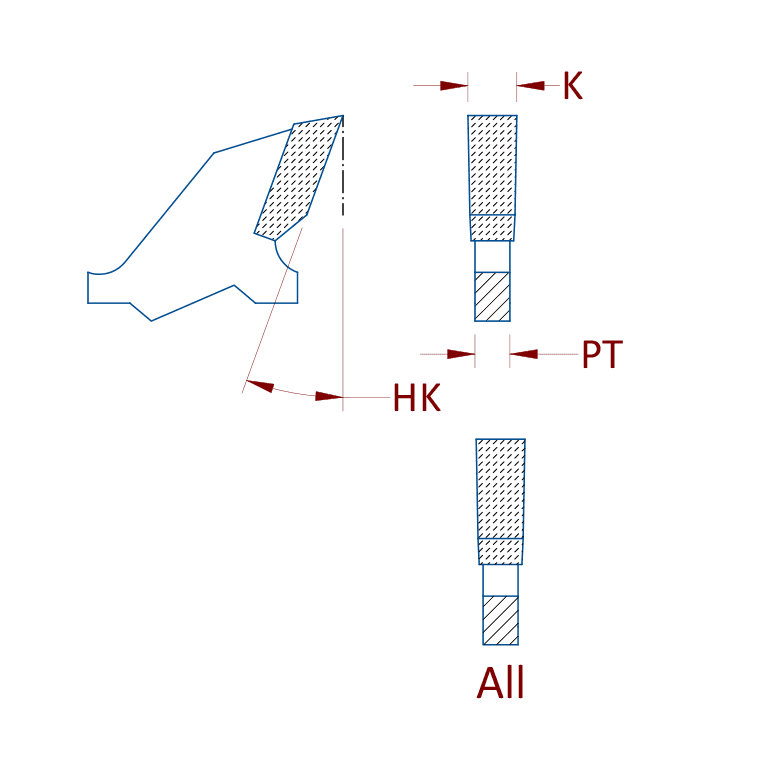

| Part | D | K | Z | d | Pinholes | Keyways | PT | HK | Line |
|---|---|---|---|---|---|---|---|---|---|
| 10070184 | 7" | 3.4mm | 18 | 40mm | 2.2mm | 15º | Industrial | ||
| 10080240 | 8" | 3.4mm | 24 | 0.625" | 2.2mm | 15º | Industrial | ||
| 10090240 | 9" | 3.4mm | 24 | 0.625" | 2.2mm | 20º | Industrial | ||
| 10100240 | 10" | 3.6mm | 24 | 0.625" | 2.4mm | 20º | Industrial | ||
| 10100247 | 10" | 3.6mm | 24 | 70mm | 2KW/20/5 | 2.4mm | 20º | Industrial | |
| 10120241 | 12" | 4.0mm | 24 | 1.000" | 2.8mm | 20º | Industrial | ||
| 10120247 | 12" | 4.0mm | 24 | 70mm | 2KW/20/5 | 2.8mm | 20º | Industrial | |
| 10120301 | 12" | 4.0mm | 30 | 1.000" | 2.8mm | 20º | Industrial | ||
| 10120307 | 12" | 4.0mm | 30 | 70mm | 2KW/20/5 | 2.8mm | 20º | Industrial | |
| 10140241 | 14" | 4.3mm | 24 | 1.000" | 3.0mm | 20º | Industrial | ||
| 10140301 | 14" | 4.3mm | 30 | 1.000" | 3.0mm | 20º | Industrial | ||
| 10140307 | 14" | 4.3mm | 30 | 70mm | 2KW/20/5 | 3.0mm | 20º | Industrial | |
| 10140361 | 14" | 4.3mm | 36 | 1.000" | 3.0mm | 20º | Industrial | ||
| 10160301 | 16" | 4.3mm | 30 | 1.000" | 3.0mm | 20º | Industrial | ||
| 10160361 | 16" | 4.3mm | 36 | 1.000" | 3.0mm | 20º | Industrial | ||
| 10180361 | 18" | 4.7mm | 36 | 1.000" | 3.4mm | 20º | Industrial | ||
| 10300288 | 300mm | 3.4mm | 28 | 80mm | 4/6.5/95 + 2/13/100 | 2KW/18.5/3.5 | 2.2mm | 20º | Industrial |
