Filters
Rotation of the Tool
| LH | |
| RH |

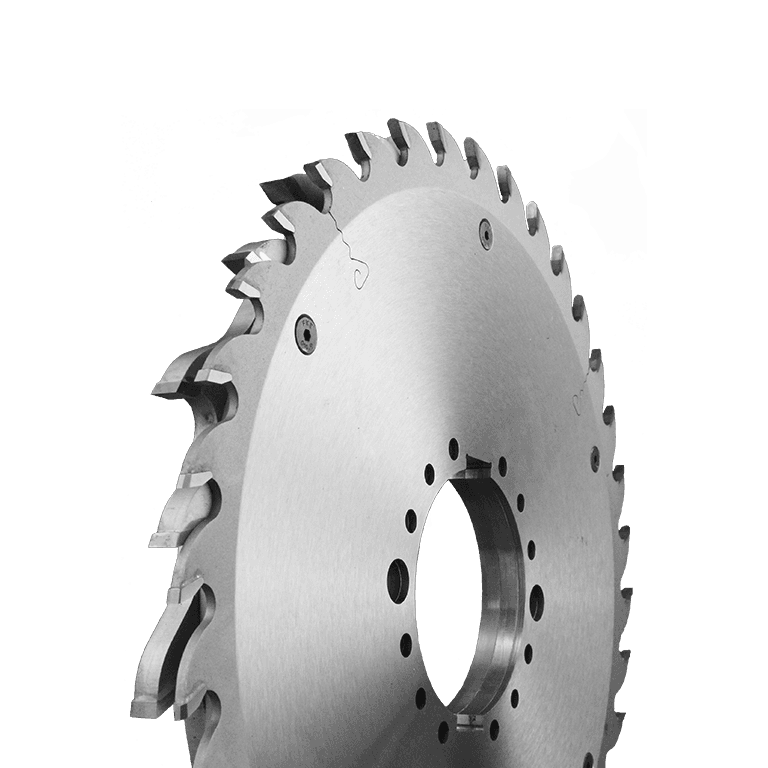

Rip Saw Hogging Units
Industrial Hogger units gang rip saws. Hogger units remove waste material to avoid long strips of wood, and enable the dust collector to take chips away. Impact resistant grade of carbide used to withstand demanding applications. Unique tooth design provides smooth finish on edge for Glue Joints.
Hw
Fb
Sw
Machine Types
Ripsaw
Industries
Moulding & Millwork
Stairs & Railings

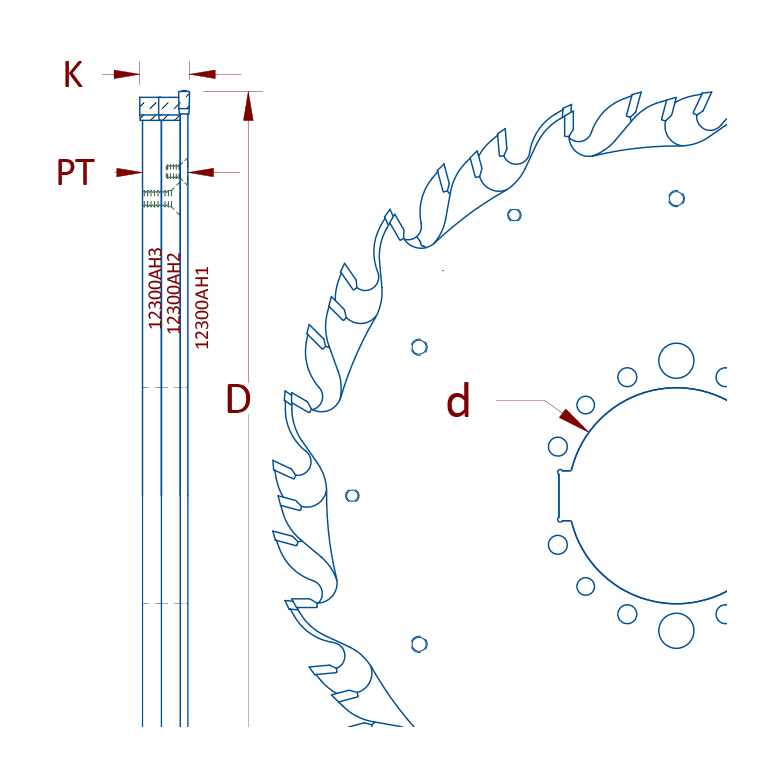

| Part | D | Z | Rotation | d | PT | K | HK | Pinholes | Keyways | Line |
|---|---|---|---|---|---|---|---|---|---|---|
| 12300A01 | 300mm | 12+12+36 | LH | 80mm | 18.4mm | 16.8mm | 4/6.5/95 + 2/13/100 | 2KW/13.5/3.5 | Industrial | |
| 12300A01-RH | 300mm | 12+12+36 | RH | 80mm | 18.4mm | 16.8mm | 4/6.5/95 + 2/13/100 | 2KW/13.5/3.5 | Industrial | |
| 12300AH1 | 300mm | 36 | LH | 80mm | 2.8mm | 4mm | 20° | 4/6.5/95 + 2/13/100 | 2KW/13.5/3.5 | Industrial |
| 12300AH1-RH | 300mm | 36 | RH | 80mm | 2.8mm | 4mm | 20° | 4/6.5/95 + 2/13/100 | 2KW/13.5/3.5 | Industrial |
| 12300AH2 | 295mm | 12 | LH | 80mm | 7mm | 8mm | 15° | 4/6.5/95 + 2/13/101 | 2KW/13.5/3.6 | Industrial |
| 12300AH2-RH | 295mm | 12 | RH | 80mm | 7mm | 8mm | 15° | 4/6.5/95 + 2/13/101 | 2KW/13.5/3.6 | Industrial |
| 12300AH3 | 295mm | 12 | LH | 80mm | 7mm | 8mm | 15° | 4/6.5/95 + 2/13/102 | 2KW/13.5/3.7 | Industrial |
| 12300AH3-RH | 295mm | 12 | RH | 80mm | 7mm | 8mm | 15° | 4/6.5/95 + 2/13/102 | 2KW/13.5/3.7 | Industrial |
