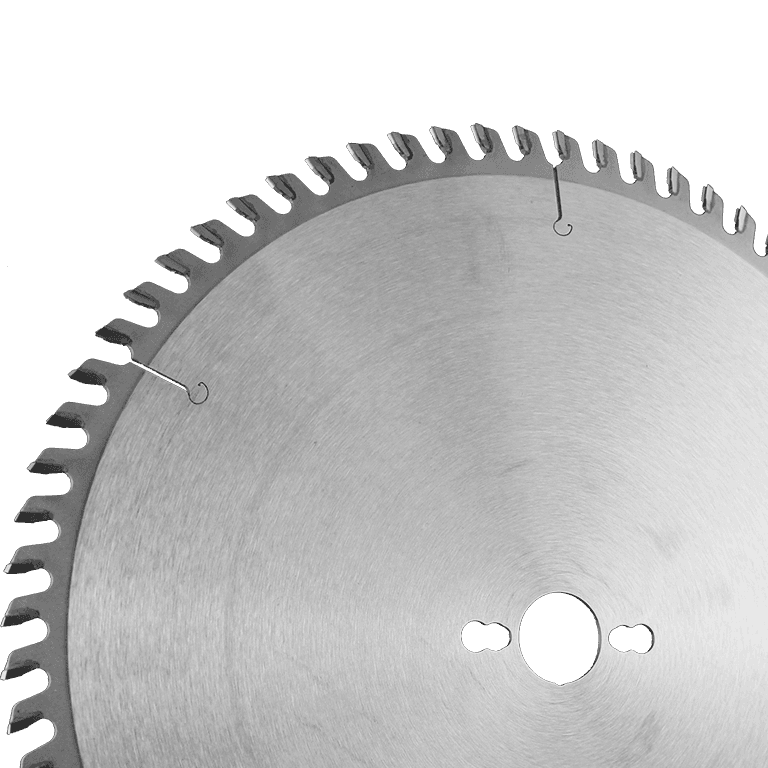

Vertical Panel Hollow Face Saw Blades
Made for Vertical Panel Saws. Special hollow ground tooth helps to prevent chipping when no scoring unit is used on vertical panel saws.
Pb
Fb
Lm
Pl
Machine Types
Panel Saw
Industries
Cabinet & Casegoods Manufacturing
Sign making & Clad paneling

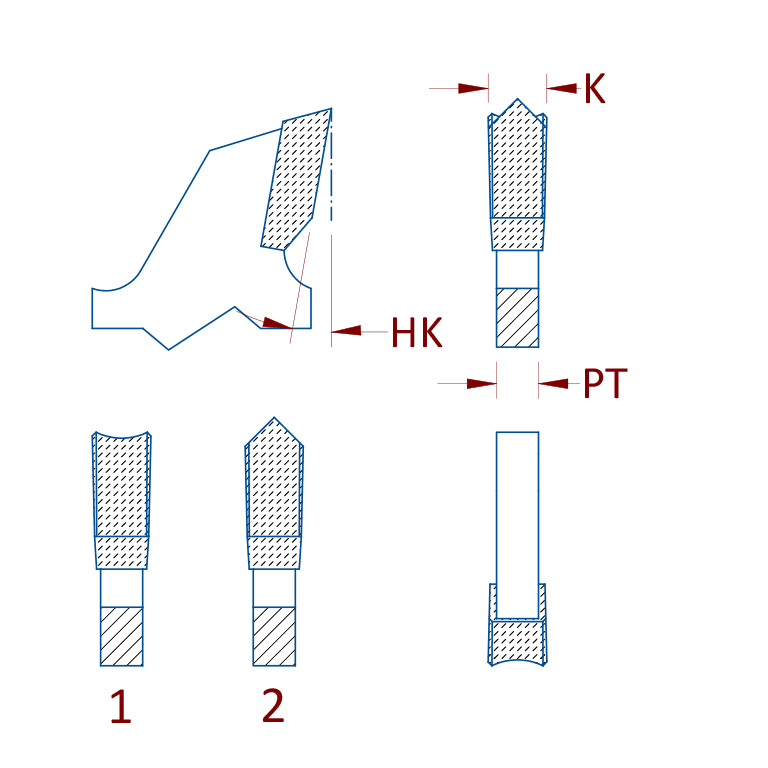

| Part | D | K | Z | d | Pinholes | PT | HK | Line |
|---|---|---|---|---|---|---|---|---|
| 04220403-NEG | 220mm | 3.2mm | 42 | 30mm | 2/7/42 | 2.2mm | -5º | Industrial |
| 04220403-POS | 220mm | 3.2mm | 42 | 30mm | 2/7/42 | 2.2mm | 10º | Industrial |
| 04250480 | 250mm | 3.2mm | 48 | 0.625" | 2.2mm | 10º | Industrial | |
| 04250483 | 250mm | 3.2mm | 48 | 30mm | 2/7/42 + 2/9/46.35 + 2/10/60 | 2.2mm | 10º | Industrial |
| 04300601 | 300mm | 3.2mm | 60 | 1.000" | 2.2mm | 10º | Industrial | |
| 04350721 | 350mm | 3.2mm | 72 | 30mm | 2/7/42 + 2/9/46.35 + 2/10/60 | 2.2mm | 10º | Industrial |
