Filters
Filter Results by Diameter
| 8" | |
| 9" | |
| 10" | |
| 12" | |
| 14" | |
| 16" | |
| 18" | |
| 20" | |
| 160mm | |
| 210mm | |
| 220mm | |
| 250mm | |
| 300mm | |
| 350mm |
Filter by Saw Bore Size
| 0.625" | |
| 1.000" | |
| 20mm | |
| 30mm | |
| 35mm |
Filter by Saw Kerf
| 2.2mm | |
| 2.8mm | |
| 3.0mm | |
| 3.2mm | |
| 3.5mm | |
| 3.8mm | |
| 4.0mm | |
| 4.6mm | |
| 4.8mm |
Filter by Number of Saw Teeth
| 24 | |
| 48 | |
| 60 | |
| 64 | |
| 72 | |
| 80 | |
| 84 | |
| 96 | |
| 100 | |
| 108 | |
| 120 |
Filter Saw Blades by Industrial & Ultima Series
| Industrial | |
| PCD | |
| Ultima |

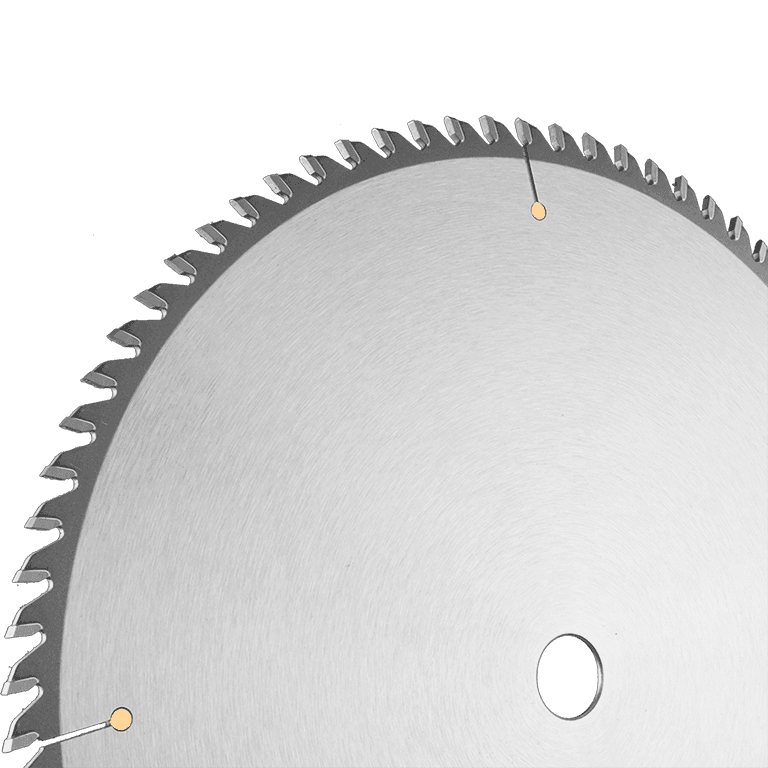

Laminated Panel Saw Blades
Laminated panel saw blades. Triple chip grind provides longer life when cutting laminated panels. Also works well on plastics.
Hw
Sw
Pb
Fb
Lm
Pl
Machine Types
Table Saw
Industries
Cabinet & Casegoods Manufacturing
Moulding & Millwork
Sign making & Clad paneling
MDF Door Manufacturing

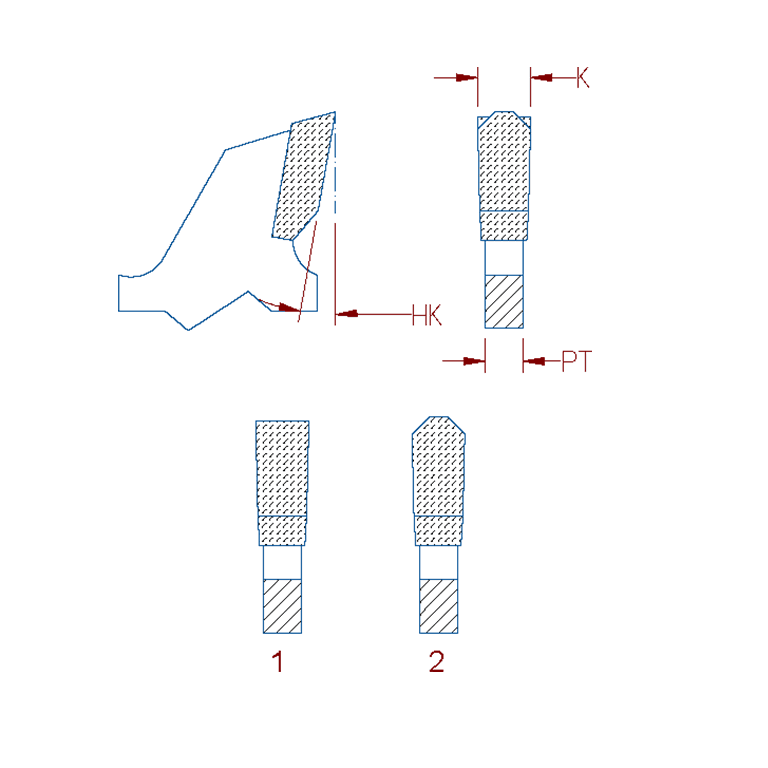

| Part | D | K | Z | d | Pinholes | Countersinks | PT | HK | Line |
|---|---|---|---|---|---|---|---|---|---|
| 03080480 | 8" | 3.2mm | 48 | 0.625" | 2.2mm | 10º | Industrial | ||
| 03080600 | 8" | 3.2mm | 60 | 0.625" | 2.2mm | 5º | Industrial | ||
| 03080600U | 8" | 3.2mm | 60 | 0.625" | 2.2mm | 5º | Ultima | ||
| 03090480 | 9" | 3.2mm | 48 | 0.625" | 2.2mm | 10º | Industrial | ||
| 03090600 | 9" | 3.2mm | 60 | 0.625" | 2.2mm | 5º | Industrial | ||
| 03090600U | 9" | 3.2mm | 60 | 0.625" | 2.2mm | 5º | Ultima | ||
| 03100480 | 10" | 3.2mm | 48 | 0.625" | 2.2mm | 10º | Industrial | ||
| 03100480U | 10" | 3.2mm | 48 | 0.625" | 2.2mm | 10º | Ultima | ||
| 03100600 | 10" | 3.2mm | 60 | 0.625" | 2.2mm | 10º | Industrial | ||
| 03100600U | 10" | 3.2mm | 60 | 0.625" | 2.2mm | 10º | Ultima | ||
| 03100800 | 10" | 3.2mm | 80 | 0.625" | 2.2mm | 5º | Industrial | ||
| 03100800H | 10" | 4.0mm | 80 | 0.625" | 3.0mm | 5º | Industrial | ||
| 03100800HU | 10" | 4.0mm | 80 | 0.625" | 3.0mm | 5º | Ultima | ||
| 03100800U | 10" | 3.2mm | 80 | 0.625" | 2.2mm | 5º | Ultima | ||
| 03101000 | 10" | 3.0mm | 100 | 0.625" | 2.0mm | 5º | Industrial | ||
| 03120481 | 12" | 3.5mm | 48 | 1.000" | 2.5mm | 15º | Industrial | ||
| 03120601 | 12" | 3.5mm | 60 | 1.000" | 2.5mm | 10º | Industrial | ||
| 03120601H | 12" | 3.8mm | 60 | 1.000" | 2.8mm | 10º | Industrial | ||
| 03120601HU | 12" | 3.8mm | 60 | 1.000" | 2.8mm | 10º | Ultima | ||
| 03120601U | 12" | 3.5mm | 60 | 1.000" | 2.5mm | 10º | Ultima | ||
| 03120800 | 12" | 3.5mm | 80 | 0.625" | 2.5mm | 5º | Industrial | ||
| 03120801 | 12" | 3.5mm | 80 | 1.000" | 2.5mm | 5º | Industrial | ||
| 03120801U | 12" | 3.5mm | 80 | 1.000" | 2.5mm | 5º | Ultima | ||
| 03121001 | 12" | 3.5mm | 100 | 1.000" | 2.5mm | 5º | Industrial | ||
| 03121001U | 12" | 3.5mm | 100 | 1.000" | 2.5mm | 5º | Ultima | ||
| 03140601 | 14" | 3.5mm | 60 | 1.000" | 2.5mm | 10º | Industrial | ||
| 03140601H | 14" | 4.0mm | 60 | 1.000" | 3.0mm | 10º | Industrial | ||
| 03140601U | 14" | 3.5mm | 60 | 1.000" | 2.5mm | 10º | Ultima | ||
| 03140801 | 14" | 3.5mm | 80 | 1.000" | 2.5mm | 10º | Industrial | ||
| 03140801H | 14" | 4.0mm | 80 | 1.000" | 3.0mm | 10º | Industrial | ||
| 03140801HU | 14" | 4.0mm | 80 | 1.000" | 3.0mm | 10º | Ultima | ||
| 03140801U | 14" | 3.5mm | 80 | 1.000" | 2.5mm | 10º | Ultima | ||
| 03141001 | 14" | 3.5mm | 100 | 1.000" | 2.5mm | 5º | Industrial | ||
| 03141001H | 14" | 4.0mm | 100 | 1.000" | 3.0mm | 5º | Industrial | ||
| 03141001HU | 14" | 4.0mm | 100 | 1.000" | 3.0mm | 5º | Ultima | ||
| 03141001U | 14" | 3.5mm | 100 | 1.000" | 2.5mm | 5º | Ultima | ||
| 031602435 | 160mm | 2.8mm | 24 | 35mm | 6/6/54mm | 1.8mm | 10º | Industrial | |
| 031602435-DIAMOND | 160mm | 2.8mm | 24 | 35mm | 6/6/54mm | 1.8mm | 10º | PCD | |
| 03160482M | 160mm | 2.2mm | 48 | 20mm | 1.6mm | 10º | Industrial | ||
| 03160601 | 16" | 4.0mm | 60 | 1.000" | 3.0mm | 10º | Industrial | ||
| 03160601U | 16" | 4.0mm | 60 | 1.000" | 3.0mm | 10º | Ultima | ||
| 03160801 | 16" | 4.0mm | 80 | 1.000" | 3.0mm | 5º | Industrial | ||
| 03160801U | 16" | 4.0mm | 80 | 1.000" | 3.0mm | 5º | Ultima | ||
| 03161001 | 16" | 4.0mm | 100 | 1.000" | 3.0mm | 5º | Industrial | ||
| 03161001HU | 16" | 4.8mm | 100 | 1.000" | 3.4mm | 5º | Ultima | ||
| 03161001U | 16" | 4.0mm | 100 | 1.000" | 3.0mm | 5º | Ultima | ||
| 03161201 | 16" | 4.0mm | 120 | 1.000" | 3.0mm | 5º | Industrial | ||
| 03161201U | 16" | 4.0mm | 120 | 1.000" | 3.0mm | 5º | Ultima | ||
| 03180601 | 18" | 4.6mm | 60 | 1.000" | 3.4mm | 10º | Industrial | ||
| 03180801 | 18" | 4.6mm | 80 | 1.000" | 3.4mm | 10º | Industrial | ||
| 03180801U | 18" | 4.6mm | 80 | 1.000" | 3.4mm | 10º | Ultima | ||
| 03181001 | 18" | 4.6mm | 100 | 1.000" | 3.4mm | 10º | Industrial | ||
| 03181001U | 18" | 4.6mm | 100 | 1.000" | 3.4mm | 10º | Ultima | ||
| 03181201 | 18" | 4.6mm | 120 | 1.000" | 3.4mm | 5º | Industrial | ||
| 03181201U | 18" | 4.6mm | 120 | 1.000" | 3.4mm | 5º | Ultima | ||
| 03200801 | 20" | 4.6mm | 80 | 1.000" | 3.4mm | 15º | Industrial | ||
| 03201001 | 20" | 4.6mm | 100 | 1.000" | 3.4mm | 10º | Industrial | ||
| 03201201 | 20" | 4.6mm | 120 | 1.000" | 3.4mm | 10º | Industrial | ||
| 03201201U | 20" | 4.6mm | 120 | 1.000" | 3.4mm | 10º | Ultima | ||
| 03210603M | 210mm | 2.2mm | 60 | 30mm | 1.6mm | 10º | Industrial | ||
| 03220483 | 220mm | 3.2mm | 48 | 30mm | 2/7/42mm | 2.2mm | 10º | Industrial | |
| 03220483U | 220mm | 3.2mm | 48 | 30mm | 2/7/42mm | 2.2mm | 10º | Ultima | |
| 03220643 | 220mm | 3.2mm | 64 | 30mm | 2/7/42mm | 2.2mm | 10º | Industrial | |
| 03220643U | 220mm | 3.2mm | 64 | 30mm | 2/7/42mm | 2.2mm | 10º | Ultima | |
| 03250603 | 250mm | 3.2mm | 60 | 30mm | 2/7/42 + 2/9/46.35 + 2/10/60mm | 2.2mm | 10º | Industrial | |
| 03250603U | 250mm | 3.2mm | 60 | 30mm | 2/7/42 + 2/9/46.35 + 2/10/60mm | 2.2mm | 10º | Ultima | |
| 03250803 | 250mm | 3.2mm | 80 | 30mm | 2/7/42 + 2/9/46.35 + 2/10/60mm | 2.2mm | 10º | Industrial | |
| 03250803U | 250mm | 3.2mm | 80 | 30mm | 2/7/42 + 2/9/46.35 + 2/10/60mm | 2.2mm | 10º | Ultima | |
| 03300723 | 300mm | 3.5mm | 72 | 30mm | 2/7/42 + 2/9/46.35 + 2/10/60mm | 2.5mm | 10º | Industrial | |
| 03300723U | 300mm | 3.5mm | 72 | 30mm | 2/7/42 + 2/9/46.35 + 2/10/60mm | 2.5mm | 10º | Ultima | |
| 03300963 | 300mm | 3.5mm | 96 | 30mm | 2/7/42 + 2/9/46.35 + 2/10/60mm | 2.5mm | 10º | Industrial | |
| 03300963U | 300mm | 3.5mm | 96 | 30mm | 2/7/42 + 2/9/46.35 + 2/10/60mm | 2.5mm | 10º | Ultima | |
| 03350843 | 350mm | 3.5mm | 84 | 30mm | 2/7/42 + 2/9/46.35 + 2/10/60mm | 2.5mm | 10º | Industrial | |
| 03350843U | 350mm | 3.5mm | 84 | 30mm | 2/7/42 + 2/9/46.35 + 2/10/60mm | 2.5mm | 10º | Ultima | |
| 03351083 | 350mm | 3.5mm | 108 | 30mm | 2/7/42 + 2/9/46.35 + 2/10/60mm | 2.5mm | 10º | Industrial | |
| 03351083U | 350mm | 3.5mm | 108 | 30mm | 2/7/42 + 2/9/46.35 + 2/10/60mm | 2.5mm | 10º | Ultima |
