Spiralex Cutterheads for High Speed Moulders
HSK85W Spiralex planing cutterheads are great for general purpose planing on moulders. Low horse-power required to cut. Radius knives help minimize lines. Top and bottom heads for different spiral directions that draw the chips towards the spindle base. Integrated one piece tool for maximum rigidity and accuracy. Shallow gullets for reduced noise levels.
Hw
Sw
Fb
Pl
Hp
Sp
Machine Types
Moulder
Industries
Moulding & Millwork
MDF Door Manufacturing
Window and Door
Stairs & Railings
Primary Wood

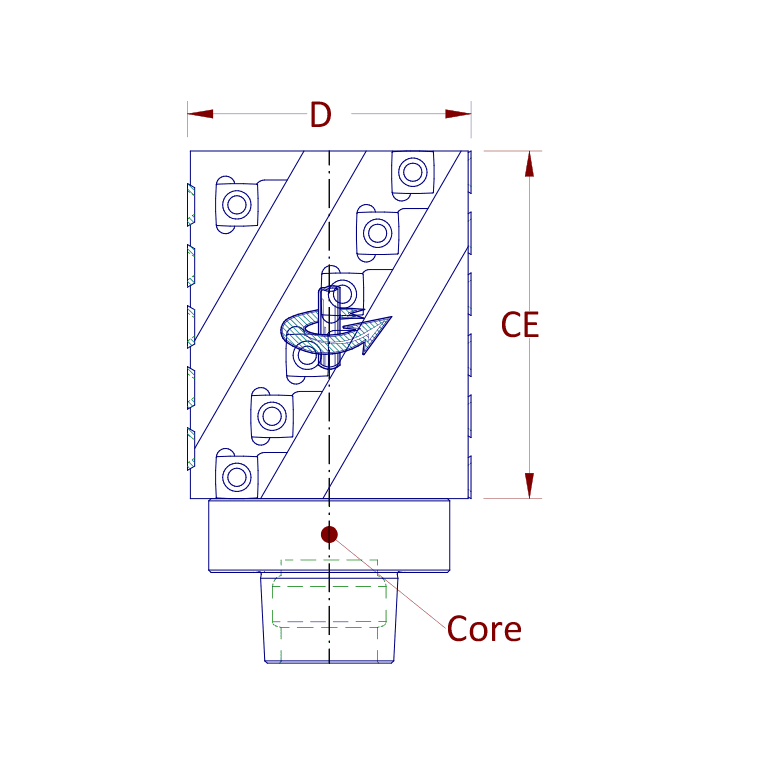

| Part | D | CE | Z | Core | Spindle |
|---|---|---|---|---|---|
| 533P.100.060-02B | 100mm | 60mm | 2+2 | HSK85W | Bottom/Left |
| 533P.100.060-02T | 100mm | 60mm | 2+2 | HSK85W | Top/Right |
| 533P.100.115-2B | 100mm | 115mm | 2+2 | HSK85W | Bottom/Left |
| 533P.100.115-2T | 100mm | 115mm | 2+2 | HSK85W | Top/Right |
| 533P.100.170-02B | 100mm | 170mm | 2+2 | HSK85W | Bottom/Left |
| 533P.100.170-02T | 100mm | 170mm | 2+2 | HSK85W | Top/Right |
| 533P.100.170-03B | 100mm | 170mm | 3+3 | HSK85W | Bottom/Left |
| 533P.100.170-03T | 100mm | 170mm | 3+3 | HSK85W | Top/Right |
| 533P.100.240-02B | 100mm | 240mm | 2+2 | HSK85W | Bottom/Left |
| 533P.100.240-02T | 100mm | 240mm | 2+2 | HSK85W | Top/Right |
