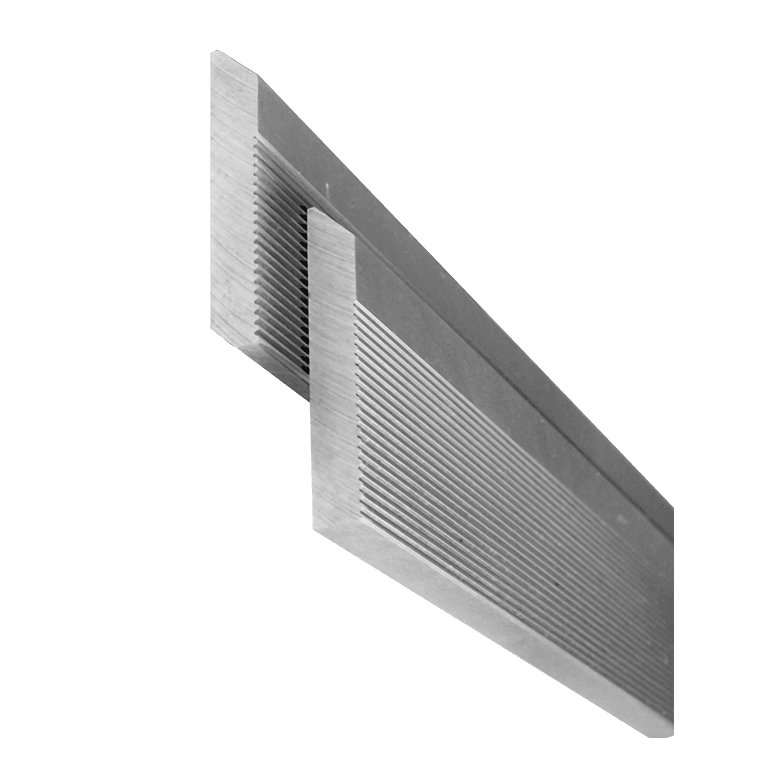

Corrugated Knife Stock
Premium quality corrugated steel for moulder heads. Full length bar is available for order or knives can be cut to any specified length. Profile can be applied to knife upon customers request. Multiple grades available for different applications. 60º corrugations fits majority of popular corrugated heads
Hw
Sw
Hp
Sp
Machine Types
MoulderShaper
Industries
Window and Door
Cabinet & Casegoods Manufacturing
Moulding & Millwork
Primary Wood

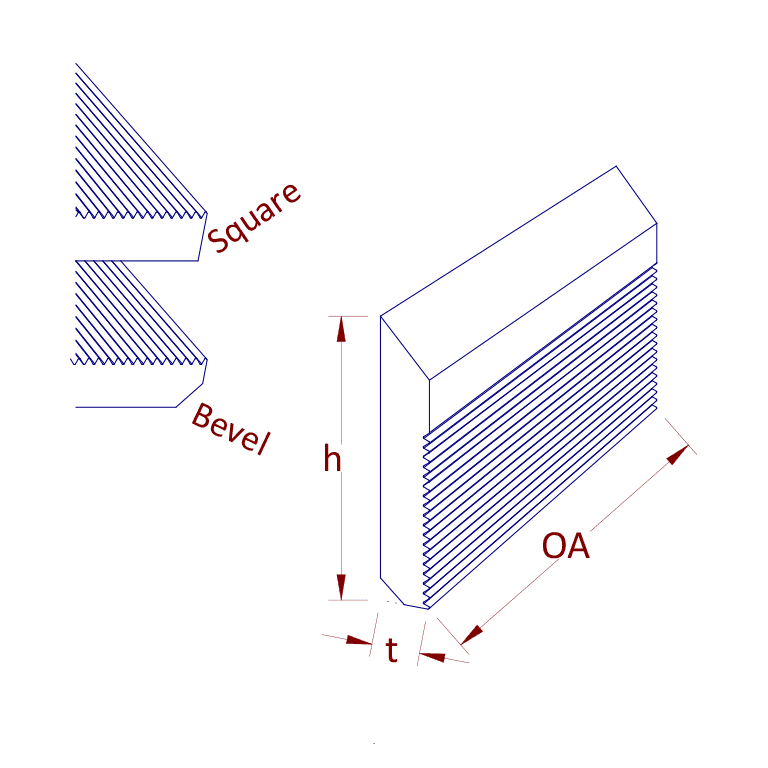

| Part | OA | t | h | Knife Type | b1 | a1 |
|---|---|---|---|---|---|---|
| 579-18-6X40 | 25" | 0.250" | 1.500" | 18% | Bevel | |
| 579-18-6X45 | 25" | 0.250" | 1.750" | 18% | Bevel | |
| 579-18-6X50 | 25" | 0.250" | 2.000" | 18% | Bevel | |
| 579-18-6X65 | 25" | 0.250" | 2.500" | 18% | Bevel | |
| 579-18-8X32 | 25" | 0.312" | 1.250" | 18% | Bevel | |
| 579-18-8X35 | 25" | 0.312" | 1.375" | 18% | Bevel | |
| 579-18-8X40 | 25" | 0.312" | 1.500" | 18% | Bevel | |
| 579-18-8X45 | 25" | 0.312" | 1.750" | 18% | Bevel | |
| 579-18-8X50 | 25" | 0.312" | 2.000" | 18% | Bevel | |
| 579-18-8X60 | 25" | 0.312" | 2.375" | 18% | Bevel | |
| 579-18-8X65 | 25" | 0.312" | 2.500" | 18% | Bevel | |
| 579-18-8X70 | 25" | 0.312" | 2.750" | 18% | Bevel | |
| 579-18-8X80 | 25" | 0.312" | 3.000" | 18% | Bevel | |
| 579-HPS-6X40 | 25" | 0.250" | 1.500" | HPS | Square | |
| 579-HPS-6X45 | 25" | 0.250" | 1.750" | HPS | Square | |
| 579-HPS-6X50 | 25" | 0.250" | 2.000" | HPS | Square | |
| 579-HPS-8X40 | 25" | 0.312" | 1.500" | HPS | Square | |
| 579-HPS-8X45 | 25" | 0.312" | 1.750" | HPS | Square | |
| 579-HPS-8X50 | 25" | 0.312" | 2.000" | HPS | Square | |
| 579-HPS-8X55 | 25" | 0.312" | 2.250" | HPS | Square | |
| 579-HPS-8X60 | 25" | 0.312" | 2.500" | HPS | Square | |
| 579-HPS-8X70 | 25" | 0.312" | 2.750" | HPS | Square | |
| 579-HPS-8X75 | 25" | 0.312" | 3.000" | HPS | Square | |
| 579-M2-6X35 | 25" | 0.250" | 1.375" | M2 | Bevel | |
| 579-M2-6X40 | 25" | 0.250" | 1.500" | M2 | Bevel | |
| 579-M2-6X45 | 25" | 0.250" | 1.750" | M2 | Bevel | |
| 579-M2-6X50 | 25" | 0.250" | 2.000" | M2 | Bevel | |
| 579-M2-6X60 | 25" | 0.250" | 2.375" | M2 | Bevel | |
| 579-M2-6X65 | 25" | 0.250" | 2.500" | M2 | Bevel | |
| 579-M2-8X35 | 25" | 0.312" | 1.375" | M2 | Bevel | |
| 579-M2-8X40 | 25" | 0.312" | 1.500" | M2 | Bevel | |
| 579-M2-8X45 (25) | 25" | 0.312" | 1.750" | M2 | Bevel | |
| 579-M2-8X50 | 25" | 0.312" | 2.000" | M2 | Bevel | |
| 579-M2-8X60 | 25" | 0.312" | 2.375" | M2 | Bevel | |
| 579-M2-8X65 | 25" | 0.312" | 2.500" | M2 | Bevel | |
| 579-M2-8X70 | 25" | 0.312" | 2.750" | M2 | Bevel | |
| 579-M2-8X75 | 25" | 0.312" | 3.000" | M2 | Bevel | |
| 579-M2-8X80 | 25" | 8mm | 80mm | M2 | Bevel | |
| 579-M3-6X45 | 635mm | 6mm | 45mm | M3 | Square | |
| 579-M3-6X50 | 635mm | 6mm | 50mm | M3 | Square | |
| 579-M3-8X40 | 635mm | 8mm | 40mm | M3 | Square | |
| 579-M3-8X45 | 635mm | 8mm | 45mm | M3 | Square | |
| 579-M3-8X50 | 635mm | 8mm | 50mm | M3 | Square | |
| 579-M3-8X55 | 635mm | 8mm | 55mm | M3 | Square | |
| 579-M3-8X60 | 635mm | 8mm | 60mm | M3 | Square | |
| 579-M3-8X70 | 635mm | 8mm | 70mm | M3 | Square | |
| 579-M3-8X75 | 635mm | 8mm | 75mm | M3 | Square | |
| 579-PR-18-6X32 | 25" | 0.250" | 1.250" | 18% | Square | |
| 579-PR-18-6X40 | 25" | 0.250" | 1.500" | 18% | Square | |
| 579-PR-18-6X45 | 25" | 0.250" | 1.750" | 18% | Square | |
| 579-PR-18-6X50 | 25" | 0.250" | 2.000" | 18% | Square | |
| 579-PR-18-6X65 | 25" | 0.250" | 2.500" | 18% | Square | |
| 579-PR-18-8X32 | 25" | 0.312" | 1.250" | 18% | Square | |
| 579-PR-18-8X35 | 25" | 0.312" | 1.375" | 18% | Square | |
| 579-PR-18-8X40 | 25" | 0.312" | 1.500" | 18% | Square | |
| 579-PR-18-8X45 | 25" | 0.312" | 1.750" | 18% | Square | |
| 579-PR-18-8X50 | 25" | 0.312" | 2.000" | 18% | Square | |
| 579-PR-18-8X57 | 25" | 0.312" | 57mm | 18% | Square | |
| 579-PR-18-8X60 | 25" | 0.312" | 2.375" | 18% | Square | |
| 579-PR-18-8X65 | 25" | 0.312" | 2.500" | 18% | Square | |
| 579-PR-18-8X70 | 25" | 0.312" | 2.750" | 18% | Square | |
| 579-PR-18-8X75 | 25" | 0.312" | 3.000" | 18% | Square | |
| 579-PR-M2-6X40 | 25" | 0.250" | 1.500" | M2 | Square | |
| 579-PR-M2-6X50 | 25" | 0.250" | 2.000" | M2 | Square | |
| 579-PR-M2-6X65 | 25" | 0.250" | 2.500" | M2 | Square | |
| 579-PR-M2-8X35 | 25" | 0.312" | 1.375" | M2 | Square | |
| 579-PR-M2-8X40 | 25" | 0.312" | 1.500" | M2 | Square | |
| 579-PR-M2-8X45 | 25" | 0.312" | 1.750" | M2 | Square | |
| 579-PR-M2-8X50 | 25" | 0.312" | 2.000" | M2 | Square | |
| 579-PR-M2-8X57 | 25" | 0.312" | 57mm | M2 | Square | |
| 579-PR-M2-8X65 | 25" | 0.312" | 2.500" | M2 | Square | |
| 579-PR-M2-8X70 | 25" | 0.312" | 70mm | M2 | Square | |
| 579-PR-M2-8X75 | 25" | 0.312" | 3.000" | M2 | Square | |
| 579-PR-M2-8X80 | 25" | 8mm | 80mm | M2 | Square |
