Filters
Filter Products by Overall length
| 25" |
Filter Products by Height/Width
| 2.000" | |
| 2.250" | |
| 38mm | |
| 45mm | |
| 50mm |
Filter Products by Thickness
| 0.250" | |
| 8mm |
Filter Products by Knife Type
| Carbide Inlay |

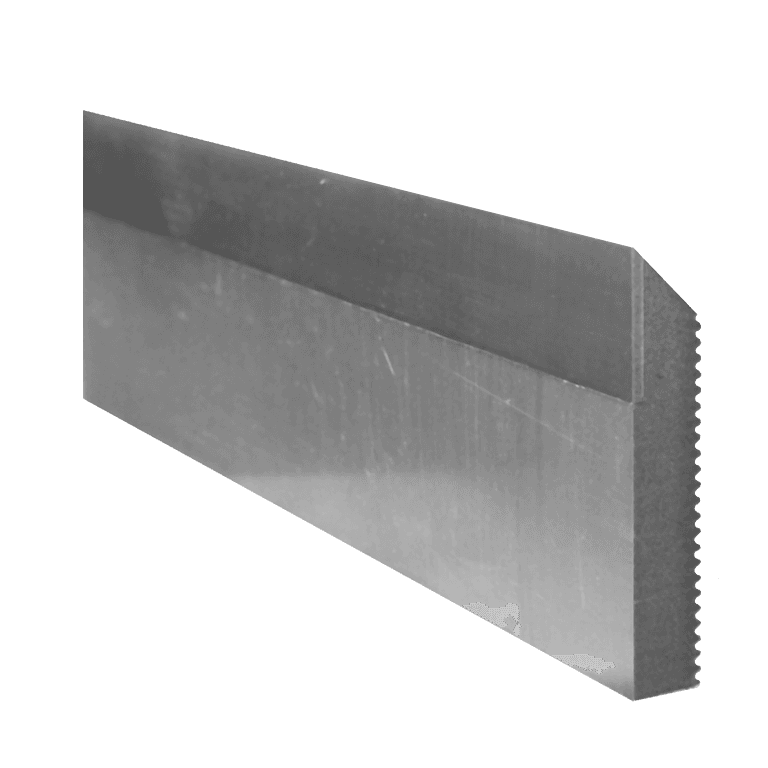

Carbide Inlay Corrugated Knife Stock
Economical carbide inlay corrugated steel for moulder heads. Full length bar is available for order or knives can be cut to any specified length. Profile can be applied to knife upon customers request. Carbide inlay outlast conventional steel up to 10 times longer.
Hw
Fb
Hp
Sp
Machine Types
Moulder
Industries
Moulding & Millwork
Window and Door
Cabinet & Casegoods Manufacturing
Primary Wood

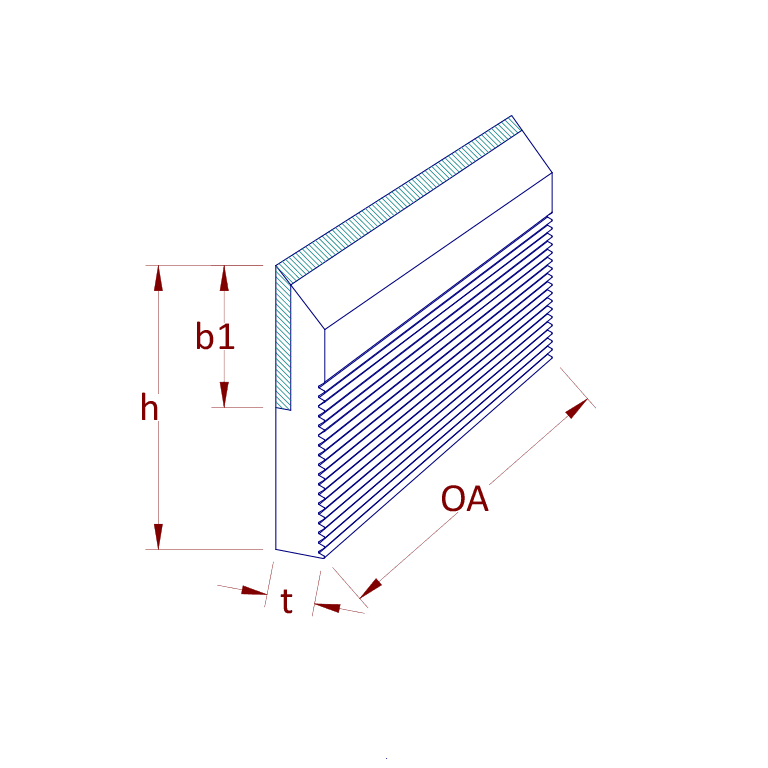

| Part | OA | h | b1 | t | Knife Type |
|---|---|---|---|---|---|
| 579-CT-6X45-20 | 25" | 2.000" | 20mm | 0.250" | Carbide Inlay |
| 579-CT-6X50-20 | 25" | 2.000" | 20mm | 0.250" | Carbide Inlay |
| 579-CT-6X50-25 | 25" | 2.000" | 25mm | 0.250" | Carbide Inlay |
| 579-CT-6X58-25 | 25" | 2.250" | 25mm | 0.250" | Carbide Inlay |
| 579-CT-6X58-30 | 25" | 2.250" | 30mm | 0.250" | Carbide Inlay |
| 579-CT-8X38-15 | 25" | 38mm | 15mm | 8mm | Carbide Inlay |
| 579-CT-8X45-15 | 25" | 45mm | 15mm | 8mm | Carbide Inlay |
| 579-CT-8X50-25 | 25" | 50mm | 25mm | 8mm | Carbide Inlay |
