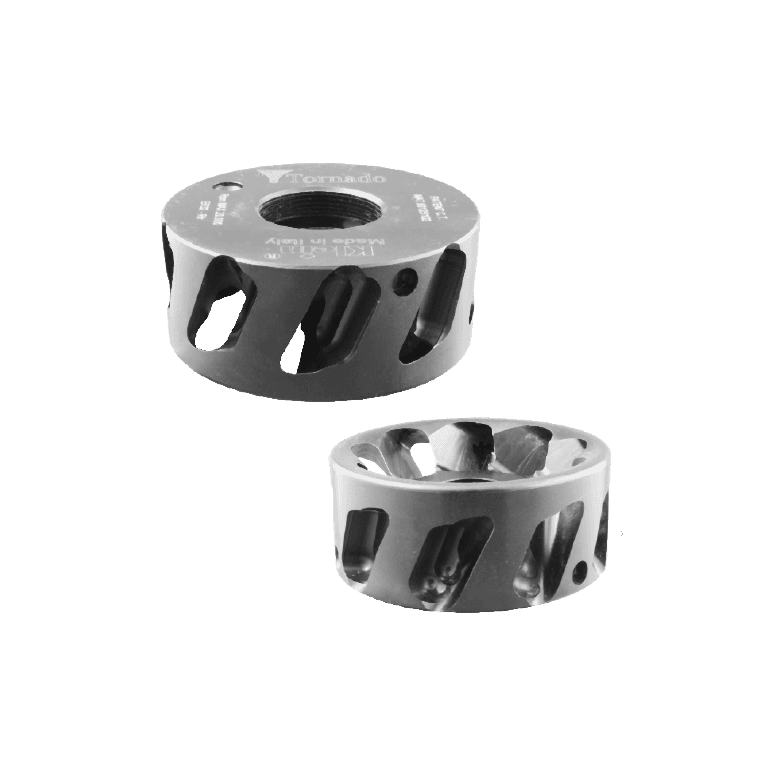

Tornado Dust Extraction Nut
Replacement collet nut for common toolholders. Most common type is a coated collet nut. Coated collet nuts reduce friction and allow for greater tightening forces. Bearing nuts have even less friction to allow for even higher tightening forces. Wrenches sold separately.
Machine Types
CNC Router

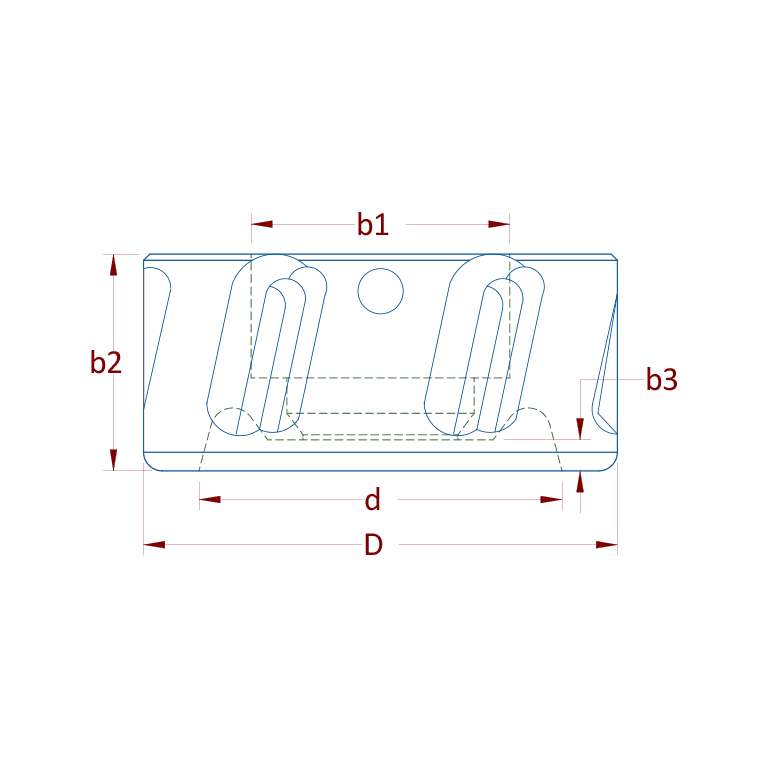

| Part | D | Rotation | b1 | b2 | Ds | b3 | Collet | Wrench |
|---|---|---|---|---|---|---|---|---|
| PRC-490.ER32 | 92mm | RH | M40 x 1.5mm | 42mm | 70mm | 6mm | ER32 | PRC-510.ER32T |
| PRC-490.ER40 | 92mm | RH | M50 x 1.5mm | 42mm | 70mm | 6mm | ER40 | PRC-510.ER40T |
| PRC-490.SYOZ25 | 92mm | RH | M48 x 2mm | 42mm | 70mm | 6mm | SYOZ25 | PRC-510.SYOZ25 |
