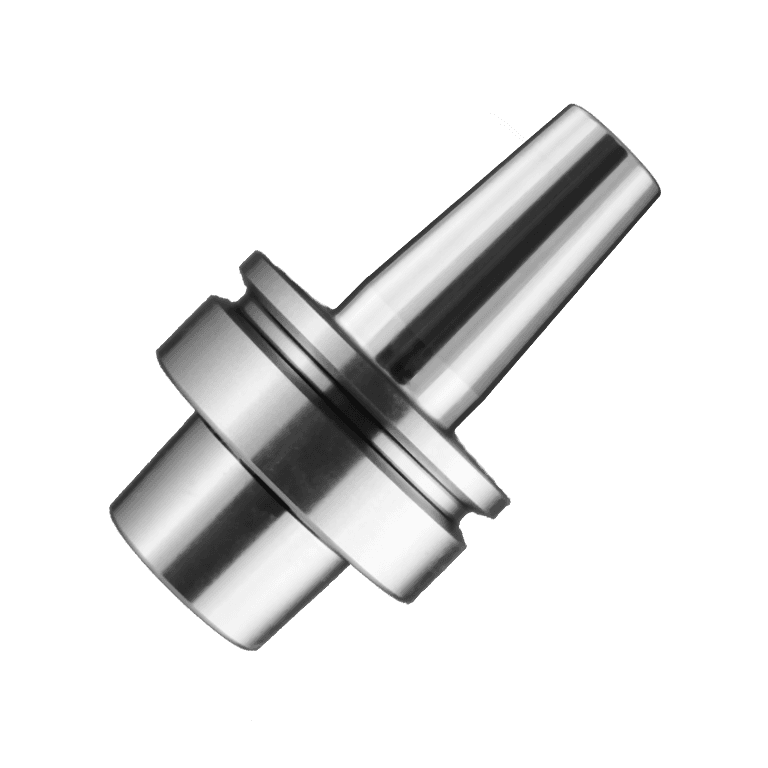

Shrink Fit Tool Holder for HSK63F CNC Machines
Shrink fit tool holders designed to fit on a variety of CNC machines with the HSK63F taper. Shrink fit provides superior clamping pressure and minimizes tool run out and vibration. Tool must be installed and removed using special heat shrink equipment.
Machine Types
CNC Router

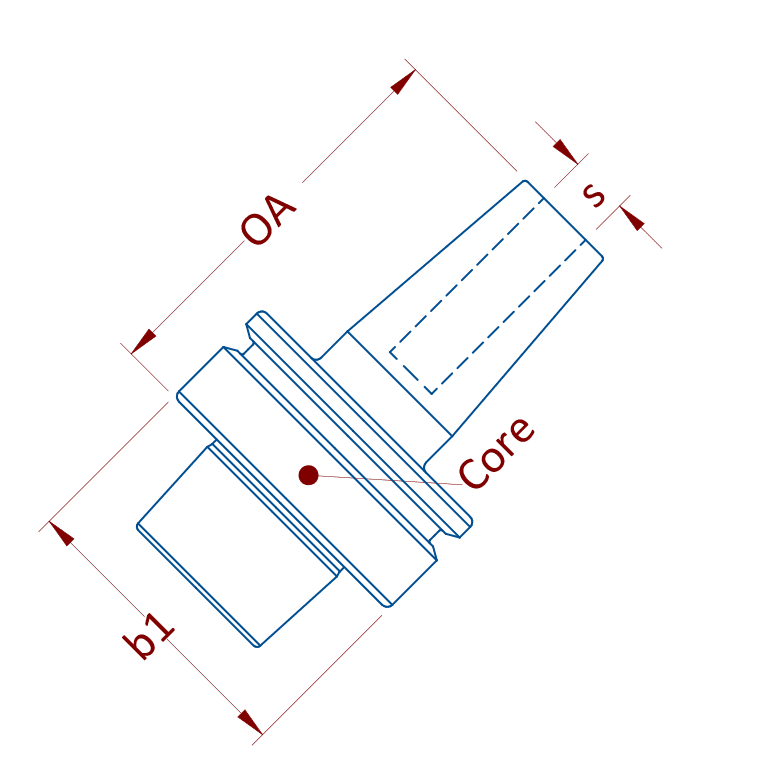

| Part | Core | Sh | b1 | OA |
|---|---|---|---|---|
| PRC-SHRINK-HSK.1 | HSK63F | 1.000" | 63mm | 115mm |
| PRC-SHRINK-HSK.1/2 | HSK63F | 0.500" | 63mm | 95mm |
| PRC-SHRINK-HSK.1/2-S | HSK63F | 0.500" | 63mm | 76mm |
| PRC-SHRINK-HSK.1/4 | HSK63F | 0.250" | 63mm | 80mm |
| PRC-SHRINK-HSK.3/4 | HSK63F | 0.750" | 63mm | 100mm |
| PRC-SHRINK-HSK.3/4-S | HSK63F | 0.750" | 63mm | 76mm |
| PRC-SHRINK-HSK.3/8 | HSK63F | 0.375" | 63mm | 95mm |
| PRC-SHRINK-HSK.5/8 | HSK63F | 0.625" | 63mm | 95mm |
