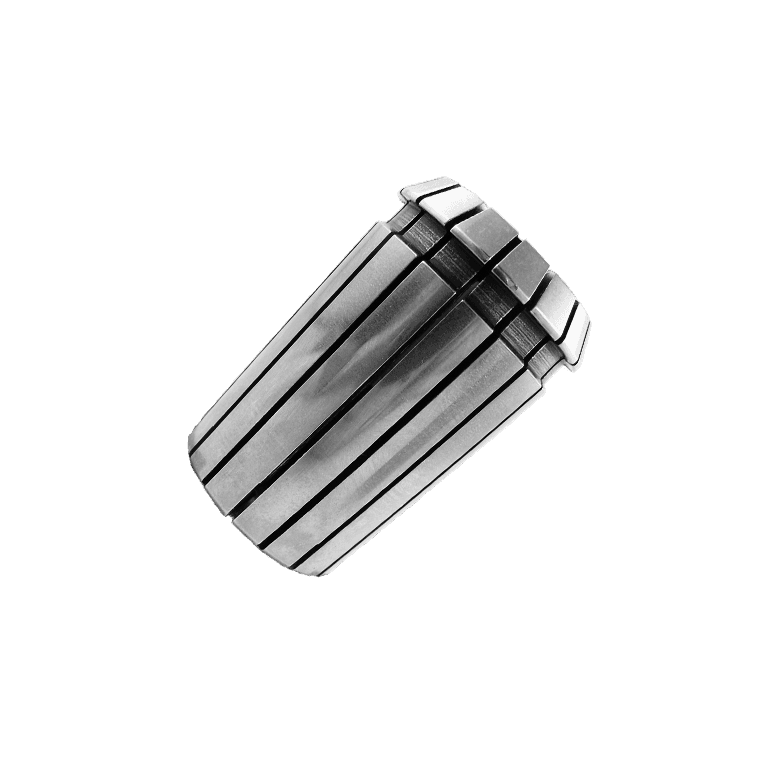

SYOZ Collets
All collets conform to DIN 6388 standards. Collet should be snapped into the nut before screwing the nut onto the tool holder.
Part | Sh | Collet |
---|---|---|
PRC-400.0125 | 0.1250" | SYOZ25 |
PRC-400.0188 | 0.1875" | SYOZ25 |
PRC-400.0250 | 0.2500" | SYOZ25 |
PRC-400.0313 | 0.3125" | SYOZ25 |
PRC-400.0375 | 0.3750" | SYOZ25 |
PRC-400.0438 | 0.4375" | SYOZ25 |
PRC-400.0500 | 0.5000" | SYOZ25 |
PRC-400.0563 | 0.5625" | SYOZ25 |
PRC-400.0625 | 0.6250" | SYOZ25 |
PRC-400.0750 | 0.7500" | SYOZ25 |
PRC-400.0875 | 0.8750" | SYOZ25 |
PRC-400.1000 | 1.0000" | SYOZ25 |
PRC-400.M030 | 3mm | SYOZ25 |
PRC-400.M040 | 4mm | SYOZ25 |
PRC-400.M050 | 5mm | SYOZ25 |
PRC-400.M060 | 6mm | SYOZ25 |
PRC-400.M070 | 7mm | SYOZ25 |
PRC-400.M080 | 8mm | SYOZ25 |
PRC-400.M090 | 9mm | SYOZ25 |
PRC-400.M100 | 10mm | SYOZ25 |
PRC-400.M120 | 12mm | SYOZ25 |
PRC-400.M130 | 13mm | SYOZ25 |
PRC-400.M140 | 14mm | SYOZ25 |
PRC-400.M160 | 16mm | SYOZ25 |
PRC-400.M190 | 19mm | SYOZ25 |
PRC-400.M200 | 20mm | SYOZ25 |
PRC-400.M250 | 25mm | SYOZ25 |
PRC-410.0125 | 0.1250" | SYOZ20 |
PRC-410.0188 | 0.1875" | SYOZ20 |
PRC-410.0250 | 0.2500" | SYOZ20 |
PRC-410.0375 | 0.3750" | SYOZ20 |
PRC-410.0500 | 0.5000" | SYOZ20 |
