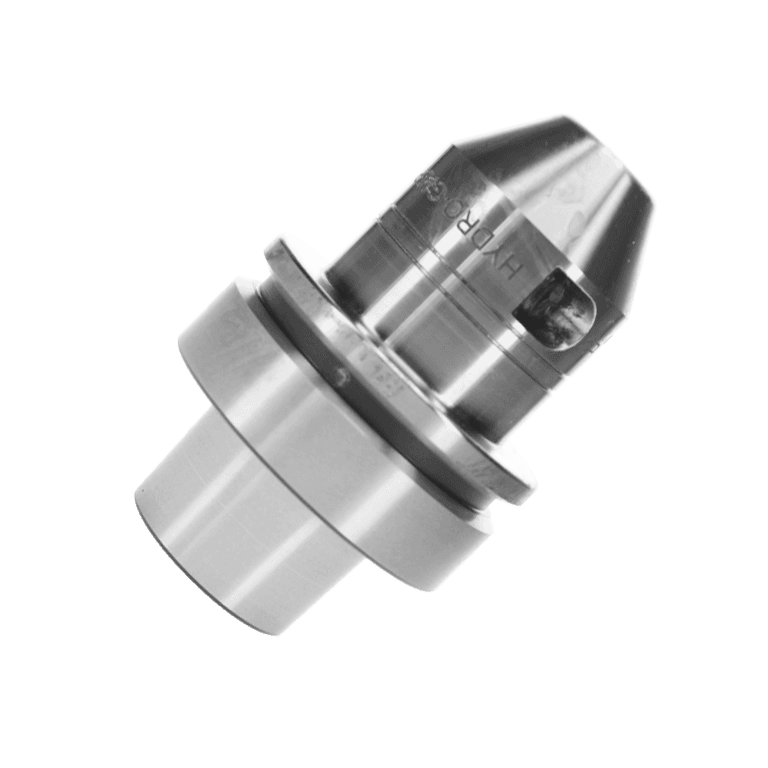

Hydraulic Tool Holder for HSK63F CNC Machines Compact Design
High precision hydraulic tool holders for a variety of different CNC machines. Hydraulic tool holders provide more rigidity and improved accuracy over conventional collet. Can provide up to 25% increase in tool life in optimum applications.
Machine Types
CNC Router

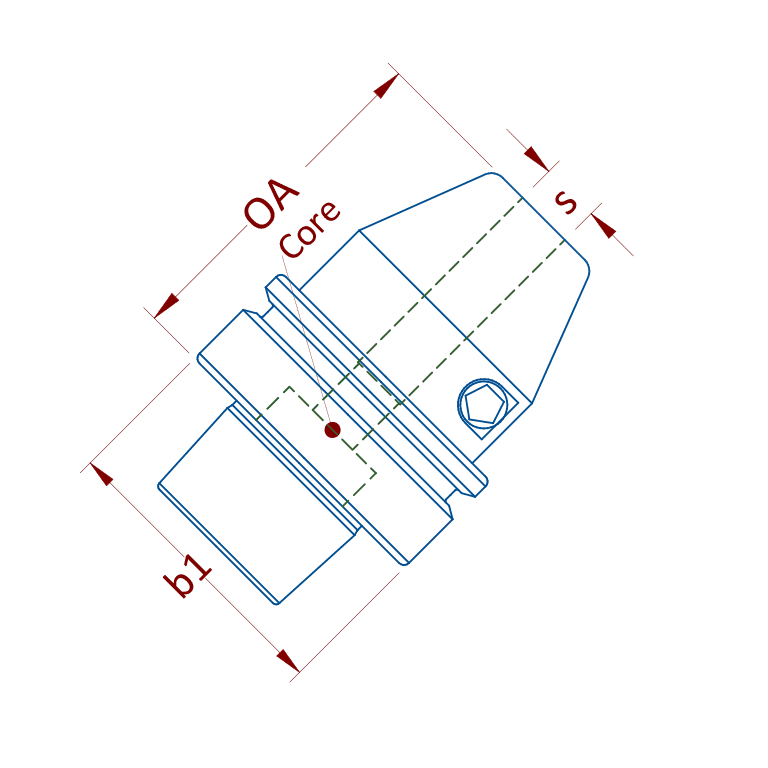

| Part | Core | Sh | b1 | OA |
|---|---|---|---|---|
| PRC-ETP.SM-1/2-HSK63 | HSK63F | 0.500" | 63mm | 75mm |
| PRC-ETP.SM-12-HSK63F | HSK63F | 12mm | 63mm | 75mm |
| PRC-ETP.SM-16-HSK63F | HSK63F | 16mm | 63mm | 75mm |
| PRC-ETP.SM-20-HSK63F | HSK63F | 20mm | 63mm | 75mm |
| PRC-ETP.SM-3/4-HSK63 | HSK63F | 0.750" | 63mm | 75mm |
| PRC-ETP.SM-5/8-HSK63 | HSK63F | 0.625" | 63mm | 75mm |
