Filters
Filter Tool by Shank Diameter
| 0.375" | |
| 0.500" | |
| 0.625" | |
| 0.750" | |
| 1.000" | |
| 12mm | |
| 20mm | |
| 25mm |
Filter Tool Holders by Machine Interface Type
| HSK63F |

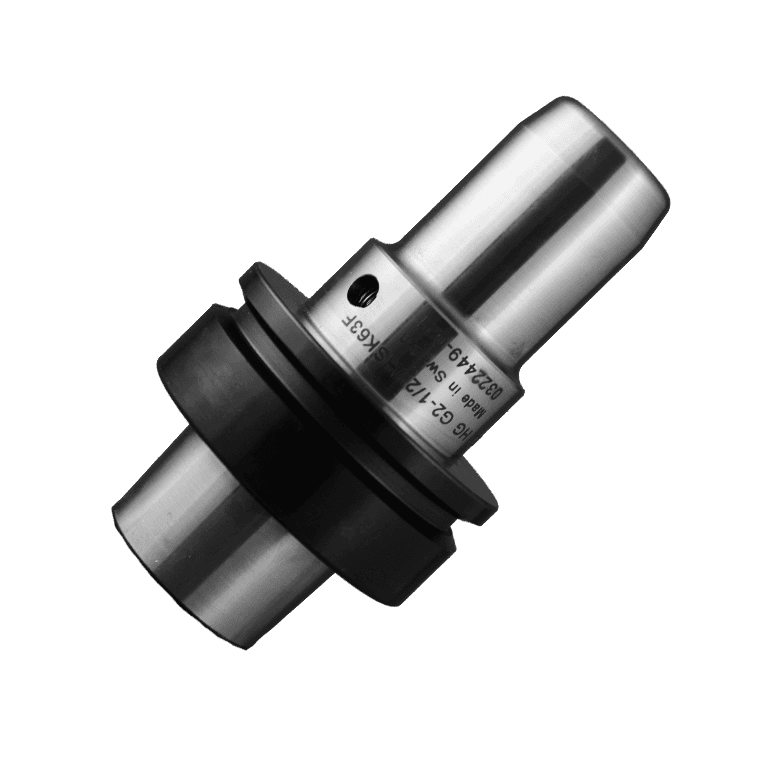

Hydraulic Tool Holder for HSK63F CNC Machines
High precision hydraulic tool holders for a variety of different CNC machines. Hydraulic tool holders provide more rigidity and improved accuracy over conventional collet. Can provide up to 25% increase in tool life in optimum applications.
Machine Types
CNC Router

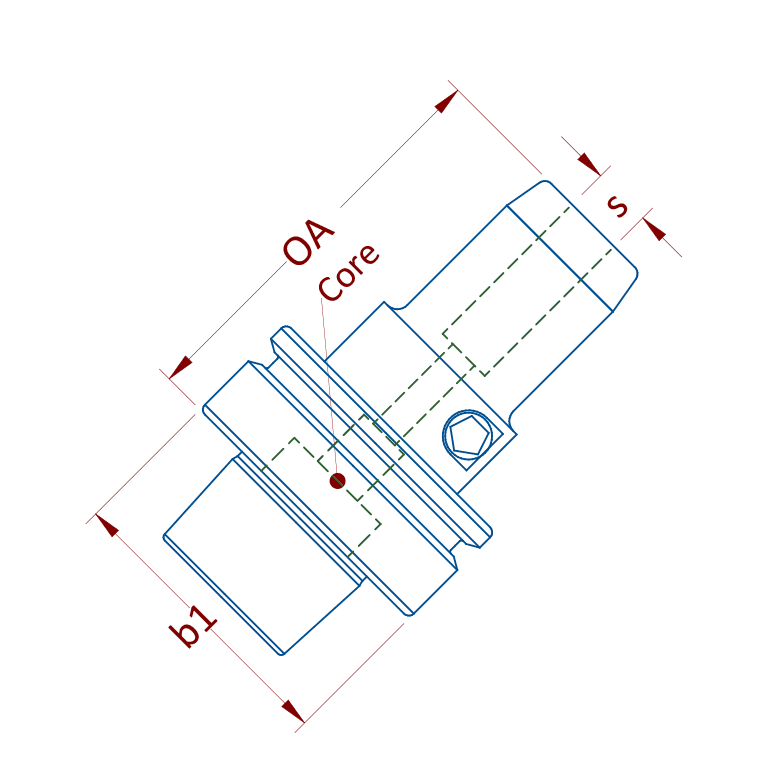

| Part | Sh | OA | b1 | Core |
|---|---|---|---|---|
| PRC-ETP.G2-1-HSK63F | 1.000" | 103mm | 63mm | HSK63F |
| PRC-ETP.G2-1/2-HSK63 | 0.500" | 87mm | 63mm | HSK63F |
| PRC-ETP.G2-12-HSK63F | 12mm | 87mm | 63mm | HSK63F |
| PRC-ETP.G2-20-HSK63F | 20mm | 99mm | 63mm | HSK63F |
| PRC-ETP.G2-25-HSK63F | 25mm | 103mm | 63mm | HSK63F |
| PRC-ETP.G2-3/4-HSK63 | 0.750" | 99mm | 63mm | HSK63F |
| PRC-ETP.G2-3/8-HSK63 | 0.375" | 87mm | 63mm | HSK63F |
| PRC-ETP.G2-5/8-HSK63 | 0.625" | 87mm | 63mm | HSK63F |
