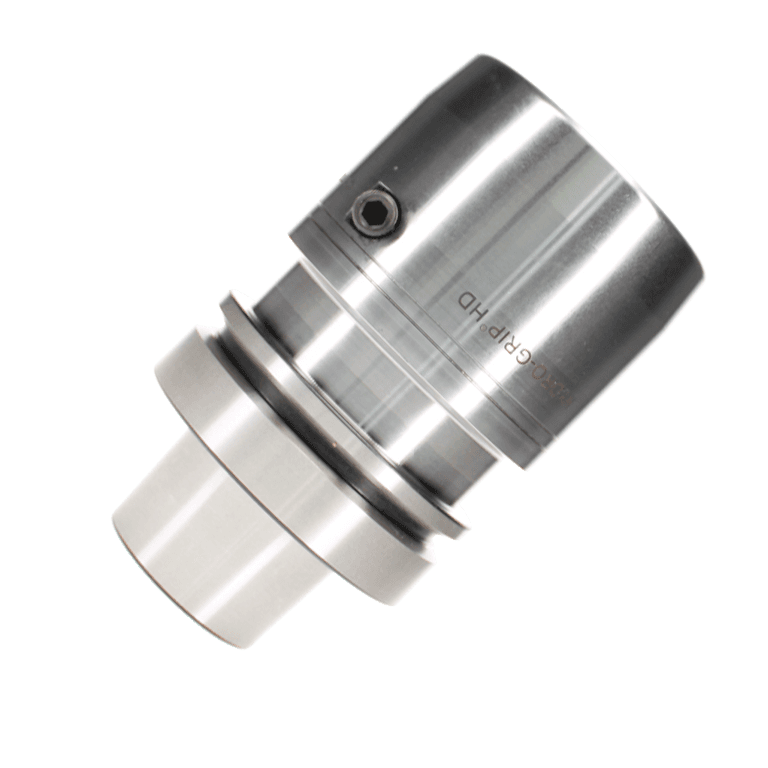

Hydraulic Tool Holder for CNC Machines Heavy Grip
High precision hydraulic tool holders for a variety of different CNC machines. Hydraulic tool holders provide more rigidity and improved accuracy over conventional collet. Can provide up to 25% increase in tool life in optimum applications. Heavy Grip holders have increased clamping pressure for larger tools.
Machine Types
CNC Router
Industries
Construction Industry

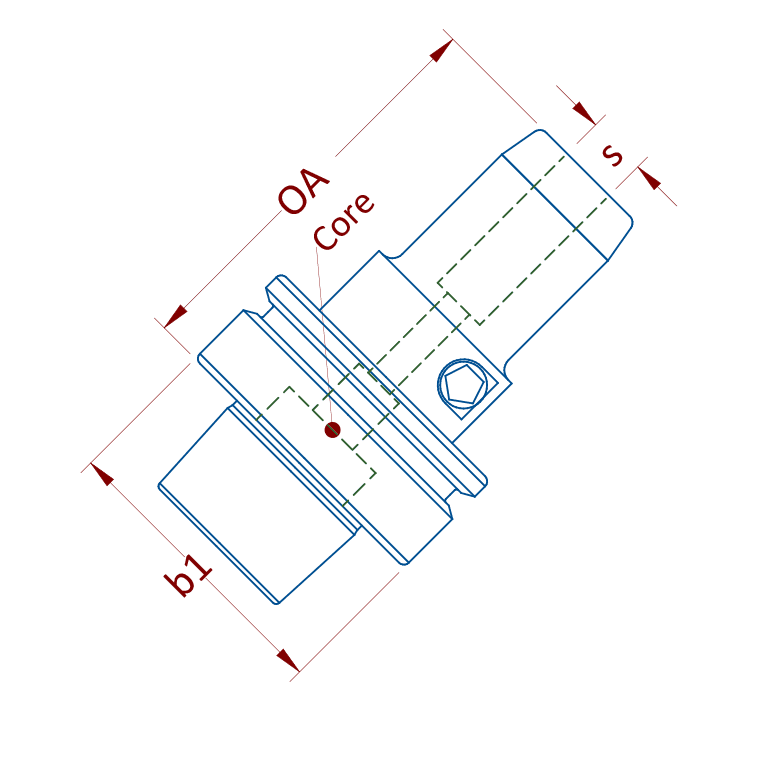

| Part | Core | Sh | b1 | OA |
|---|---|---|---|---|
| PRC-ETP.HG5/4-HSK63E | HSK63E | 1.250" | 63mm | 109mm |
| PRC-ETP.HG5/4-HSK80F | HSK80F | 1.250" | 80mm | 106mm |
