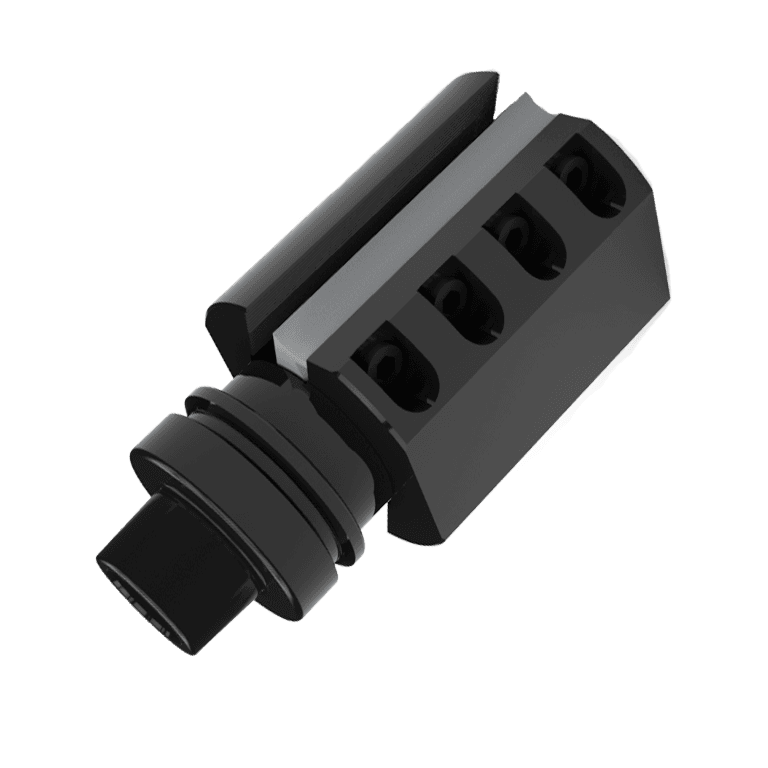

Corrugated CNC
Corrugated heads for CNC. Steel & Aluminum bodies with precision machined 60° corrugations to hold 579 series corrugated knives. Black oxide treatment for corrosion resistance. 20° hook heads for softwood and 12° hook for hardwood. Made in North America.
Hw
Sw
Pb
Fb
Pl
Machine Types
CNC Router

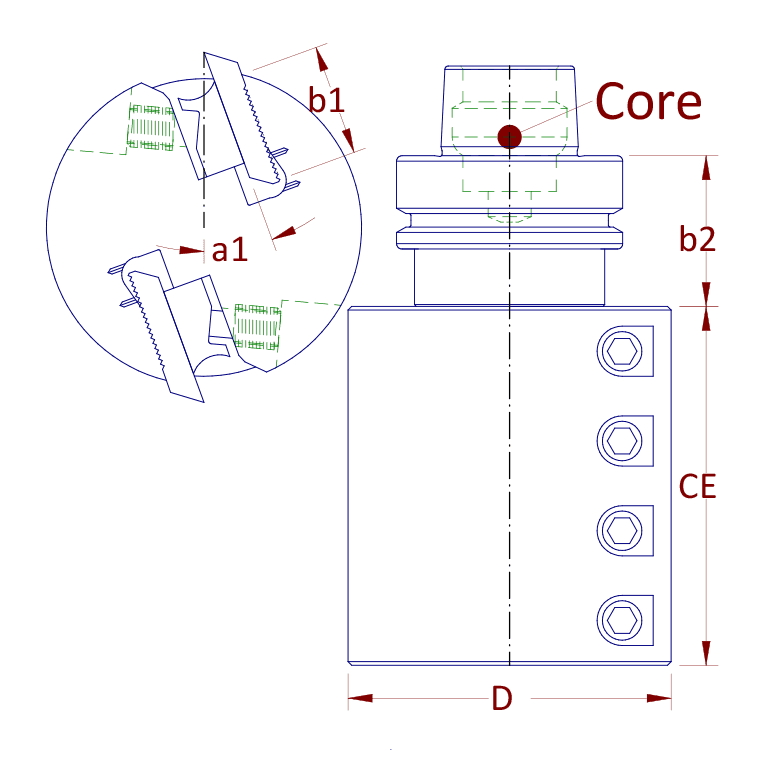

| Part | D | CE | b1 | b2 | a1 | Z | OA | Core | Wt |
|---|---|---|---|---|---|---|---|---|---|
| 573R-090100R2-20 | 90mm | 100mm | 35 | 42mm | 20º | 2 | 142mm | HSK63F | 10lbs |
| 573RA-100150R2-20 | 90mm | 150mm | 35mm | 46mm | 20º | 2 | 196mm | HSK63F | 10.5lbs |
