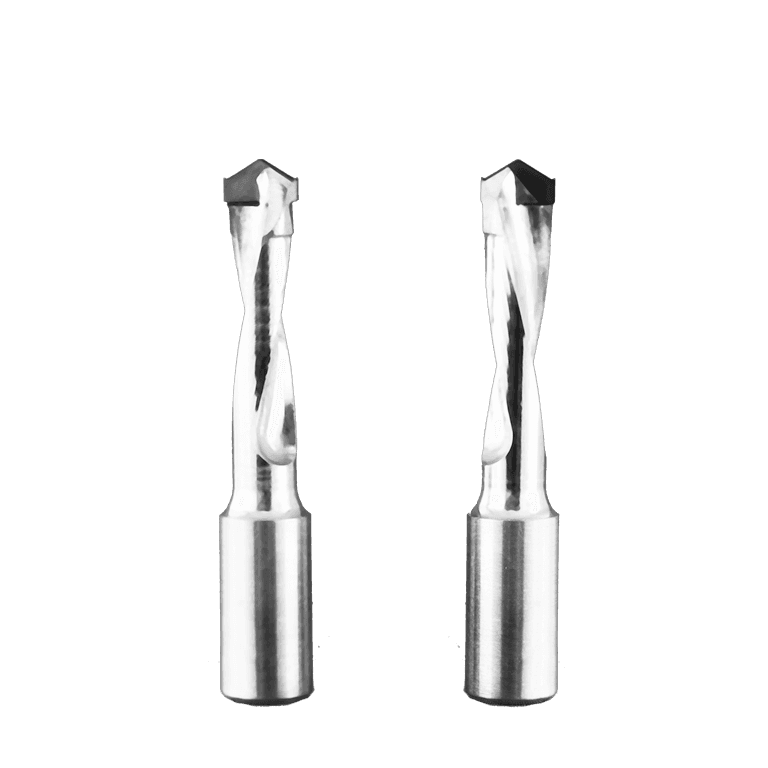

PCD Diamond Dowel Drills
For use on CNC drill banks. Industrial quality PCD diamond dowel drills will outlast conventional drills 50 to 100 times when used in proper applications. Dowel drill style for drilling blind holes in MDF and solid wood. Screw in the end for height adjustment, 10mm shank with flat for set screws.
Hw
Sw
Pb
Fb
Lm
Pl
Machine Types
CNC Router
Industries
Cabinet & Casegoods Manufacturing

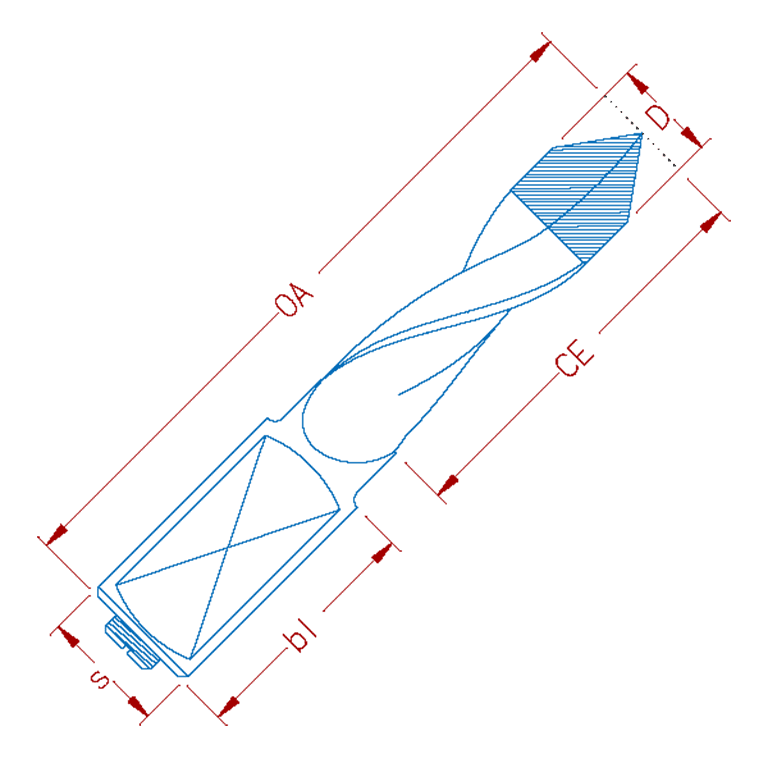

| Part | D | b1 | Sh | Z | Rotation | OA |
|---|---|---|---|---|---|---|
| D100.050L.PCD | 5mm | 27mm | 10mm | 2 | LH | 57mm |
| D100.050R.PCD | 5mm | 27mm | 10mm | 2 | RH | 57mm |
| D100.080L.PCD | 8mm | 27mm | 10mm | 2 | LH | 57mm |
| D100.080R.PCD | 8mm | 27mm | 10mm | 2 | RH | 57mm |
