Industrial Quality Thru Drills Durox 1
Industrial Quality Thru Drills Durox 2

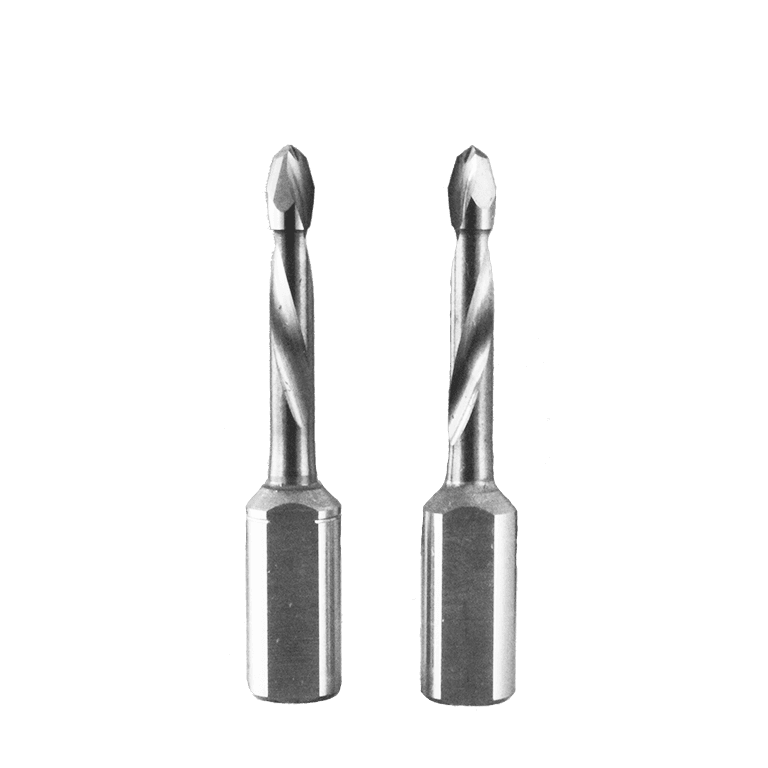

Industrial Quality Thru Drills Durox

For use on CNC drill banks and portable machines. Durox style thru hole drills have superior geometry over industrial and proline drills to prevent chipping on brittle delicate laminates. Thru-hole drill minimizes chipping on exit hole on laminates, particle board, MDF and solid wood. Carbide tipped for long life. Screw in the end for height adjustment, 10mm shank with flat for set screws.

Hw
Sw
Pb
Fb
Lm
Pl

Machine Types

CNC Router

Industries

Cabinet & Casegoods Manufacturing

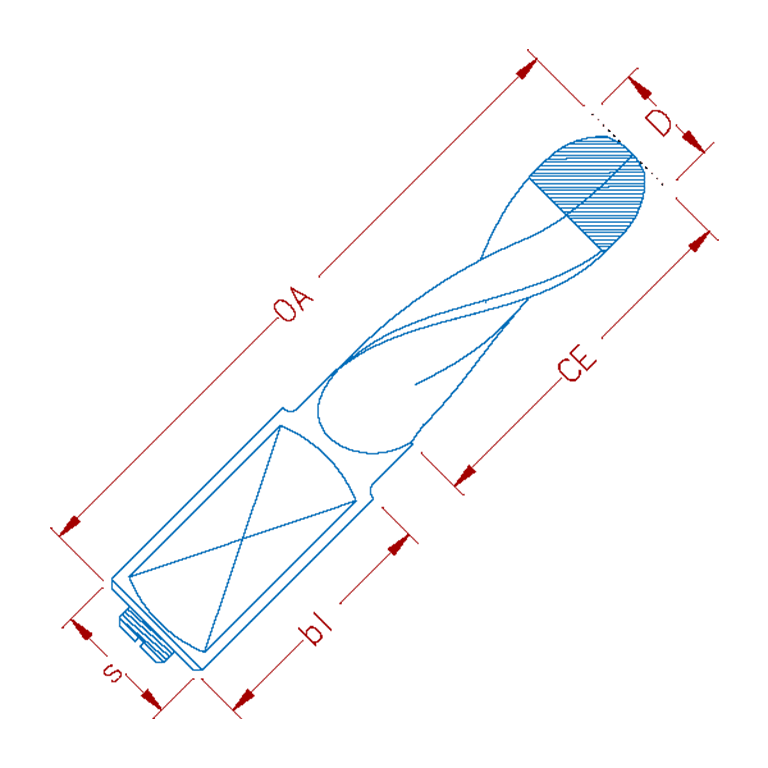

Part
D
CE
b1
Sh
Z
Rotation
OA
D147.050L5mm27mm24mm10mm2LH57mm
D147.050R5mm27mm24mm10mm2RH57mm
D147.080L0.3125"27mm24mm10mm2LH57mm
D147.080R0.3125"27mm24mm10mm2RH57mm
D152.050L5mm35mm24mm10mm2LH70mm
D152.050R5mm35mm24mm10mm2RH70mm
D152.080L0.3125"35mm24mm10mm2LH70mm
D152.080R0.3125"35mm24mm10mm2RH70mm
