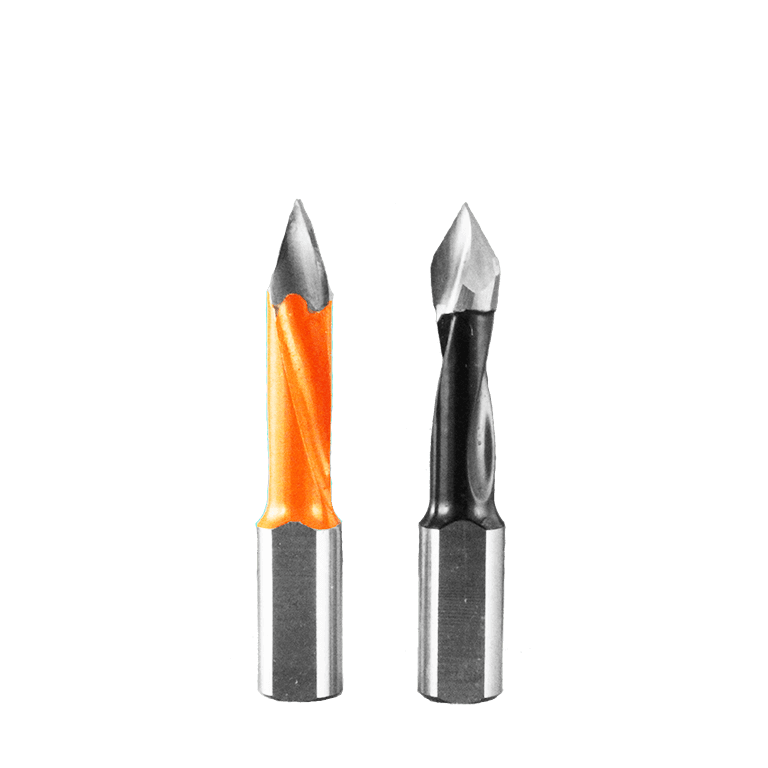

Industrial Quality Thru Drills 8mm Shank 1
Industrial Quality Thru Drills 8mm Shank 2
Industrial Quality Thru Drills 8mm Shank

For use on CNC drill banks and portable machines. Industrial quality dowel drills have larger carbide tip and improved geometry for longer life. Thru-hole drill minimizes chipping on exit hole on laminates, particle board, MDF and solid wood. Carbide tipped for long life. Screw in the end for height adjustment.

Hw
Sw
Pb
Fb
Lm
Pl

Machine Types

CNC Router

Industries

Cabinet & Casegoods Manufacturing

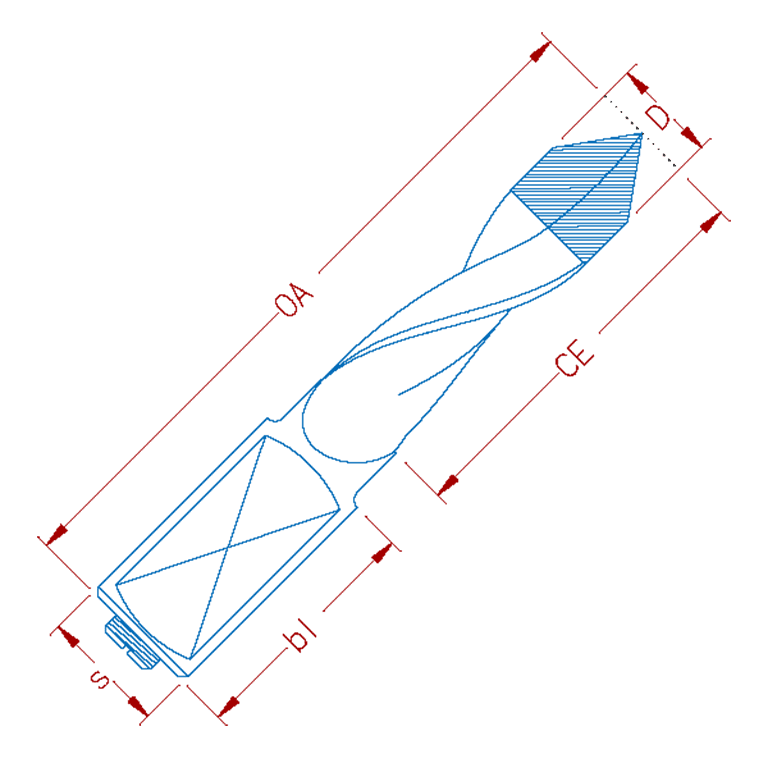

Part
D
CE
b1
Sh
Z
Rotation
OA
D160.050L5mm30mm20mm8mm2LH55mm
D160.050R5mm30mm20mm8mm2RH55mm
D160.080L0.3125"30mm20mm8mm2LH55mm
D160.080R0.3125"30mm20mm8mm2RH55mm
D165.050R5mm40mm25mm8mm2RH67mm
D165.060L6mm40mm25mm8mm2LH67mm
D165.060R5mm40mm25mm8mm2RH67mm
D165.080L0.3125"40mm25mm8mm2LH67mm
D165.080R0.3125"40mm25mm8mm2RH67mm
