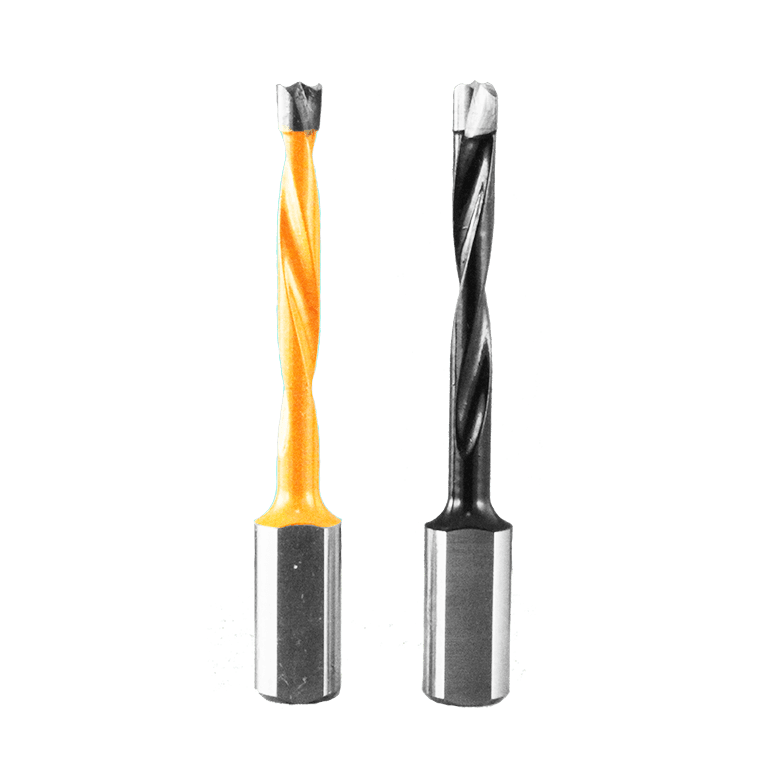

Industrial Quality Dowel Drills Durox 1
Industrial Quality Dowel Drills Durox 2
Industrial Quality Dowel Drills Durox

For use on CNC drill banks and portable machines. Durox style dowel drills have superior geometry over industrial and proline drills to prevent chipping on brittle delicate laminates. Dowel drill style for drilling blind holes in particle board, MDF and solid wood. Carbide tipped for long life. Screw in the end for height adjustment.

Hw
Sw
Pb
Fb
Lm
Pl

Machine Types

CNC Router

Industries

Cabinet & Casegoods Manufacturing

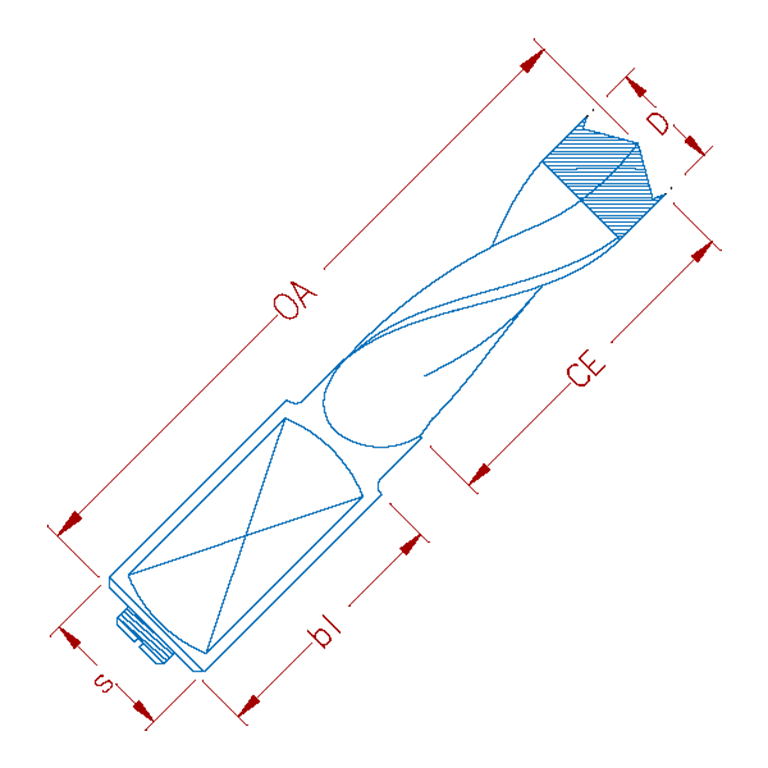

Part
D
CE
b1
Sh
Z
Rotation
OA
D146.050L5mm27mm30mm10mm2LH58mm
D146.050R5mm27mm30mm10mm2RH58mm
D146.080L0.3125"27mm30mm10mm2LH58mm
D146.080R0.3125"27mm30mm10mm2RH58mm
D151.050L5mm35mm24mm10mm2LH70mm
D151.050R5mm35mm24mm10mm2RH70mm
D151.080L0.3125"35mm24mm10mm2LH70mm
D151.080R0.3125"35mm24mm10mm2RH70mm
