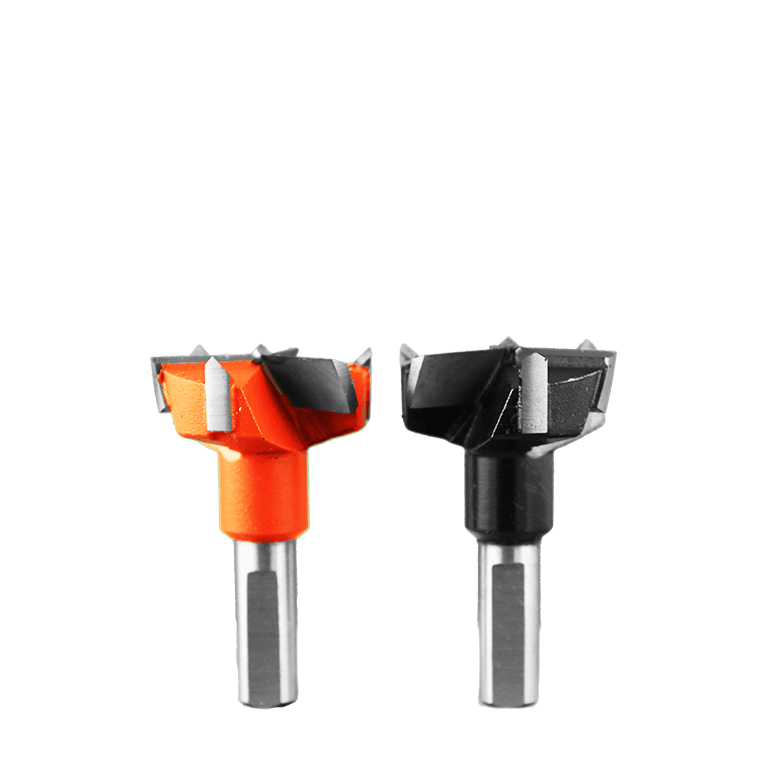

Industrial Hinge Boring Drills 3x3W
For use on CNC drill banks and portable machines. Hinge style bits for drilling larger diameter holes. For drilling blind holes in particle board, MDF and solid wood. Carbide tipped for long life. Tool has 3 wings to help eliminate chipping in brittle laminates. Screw in the end for height adjustment.
Hw
Sw
Pb
Fb
Lm
Pl
Machine Types
CNC Router
Industries
Cabinet & Casegoods Manufacturing

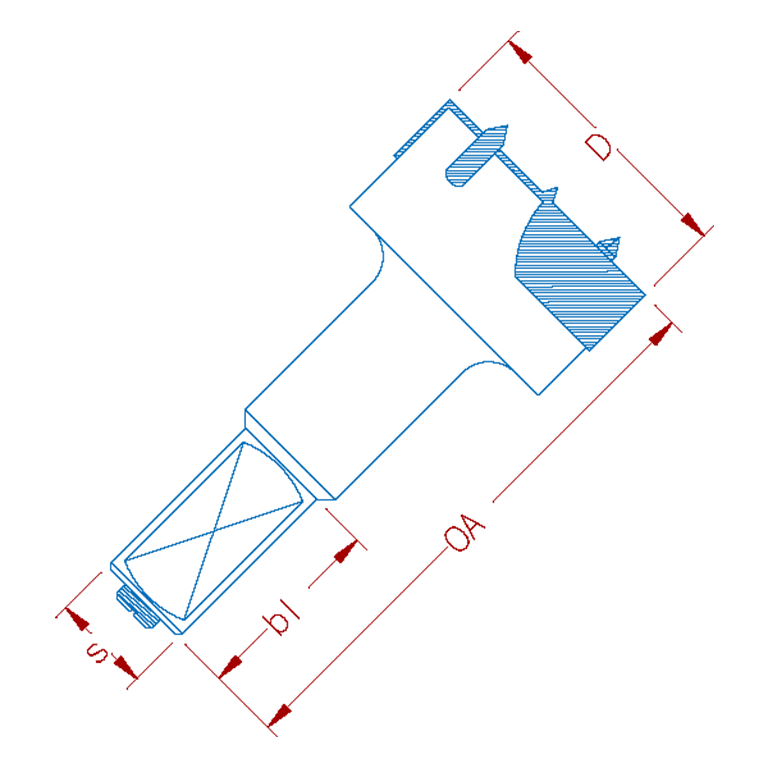

| Part | D | b1 | Sh | Z | Rotation | OA |
|---|---|---|---|---|---|---|
| D195.250L | 25mm | 30mm | 10mm | 3+3 | LH | 57mm |
| D195.250R | 25mm | 30mm | 10mm | 3+3 | RH | 57mm |
| D195.260L | 26mm | 30mm | 10mm | 3+3 | LH | 57mm |
| D195.260R | 26mm | 30mm | 10mm | 3+3 | RH | 57mm |
| D195.300L | 30mm | 30mm | 10mm | 3+3 | LH | 57mm |
| D195.300R | 30mm | 30mm | 10mm | 3+3 | RH | 57mm |
| D195.350L | 35mm | 30mm | 10mm | 3+3 | LH | 57mm |
| D195.350R | 35mm | 30mm | 10mm | 3+3 | RH | 57mm |
| D195.400L | 40mm | 30mm | 10mm | 3+3 | LH | 57mm |
| D195.400R | 40mm | 30mm | 10mm | 3+3 | RH | 57mm |
