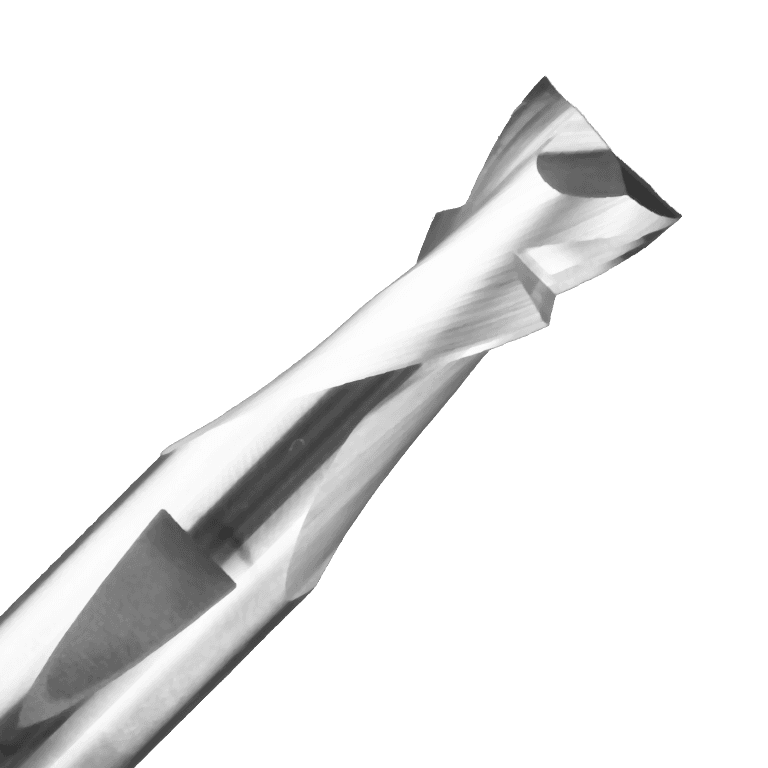

R90-90110D

Specifically designed for use on OMEC® dovetail machines. Tools work well for routing solid wood and wood composites.

R90-90110D 1
R90-90110D 2

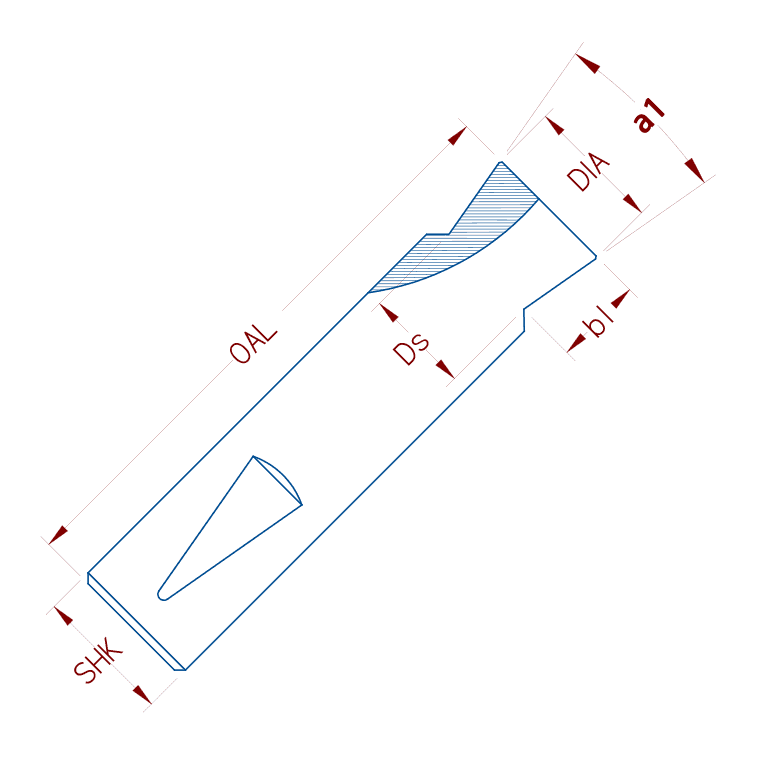

Diameter (D)
14mm
Shank (Sh)
14mm
Overall Length (OA)
60mm
Coating Type (Coating)
None
Number of Wings/Flutes/Teeth (Z)
2
Material (Material)
HW
Angle Variable 1 (a1)
20°
Rotation (Rotation)
RH
Dimension Variable 1 (b1)
10mm
Small Diameter (Ds)
10.4mm
