R90-24012

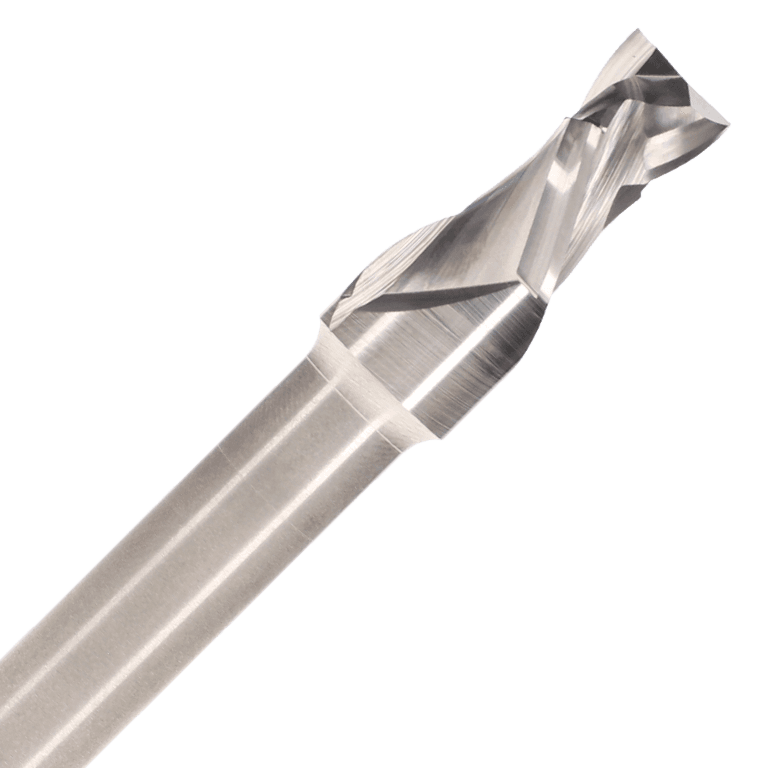

Tool for apply euro groove in edge of entry doors that use 3 point multi lock.

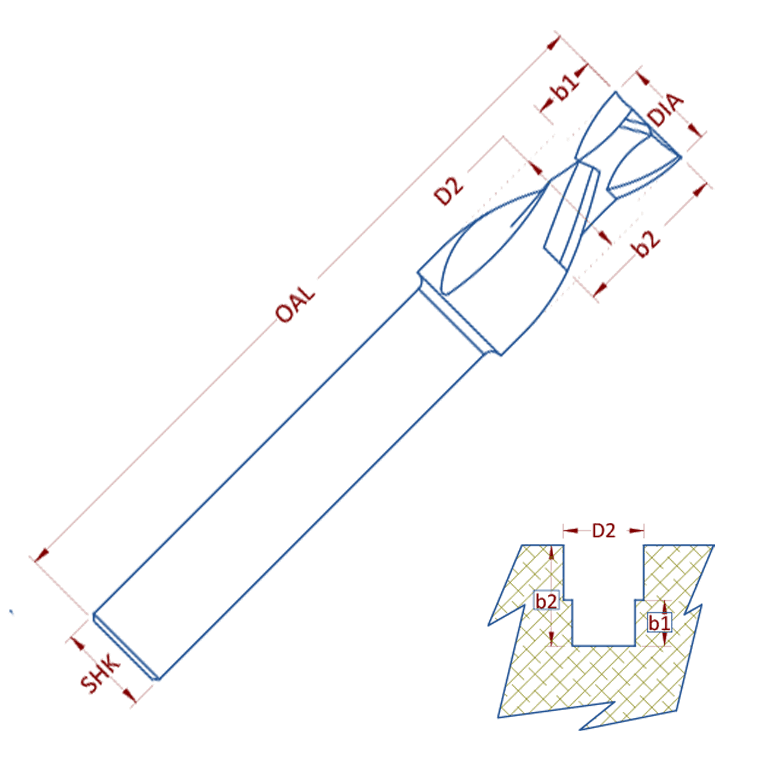

Diameter (D) | 0.5000" |
Overall Length (OA) | 4.000" |
Coating Type (Coating) | None |
Number of Wings/Flutes/Teeth (Z) | 2 |
Material (Material) | HW |
Rotation (Rotation) | RH |
Dimension Variable 1 (b1) | 0.366" |
Dimension Variable 2 (b2) | 0.804" |
Diameter Variable 2 (D2) | 0.638" |
