R74-21008

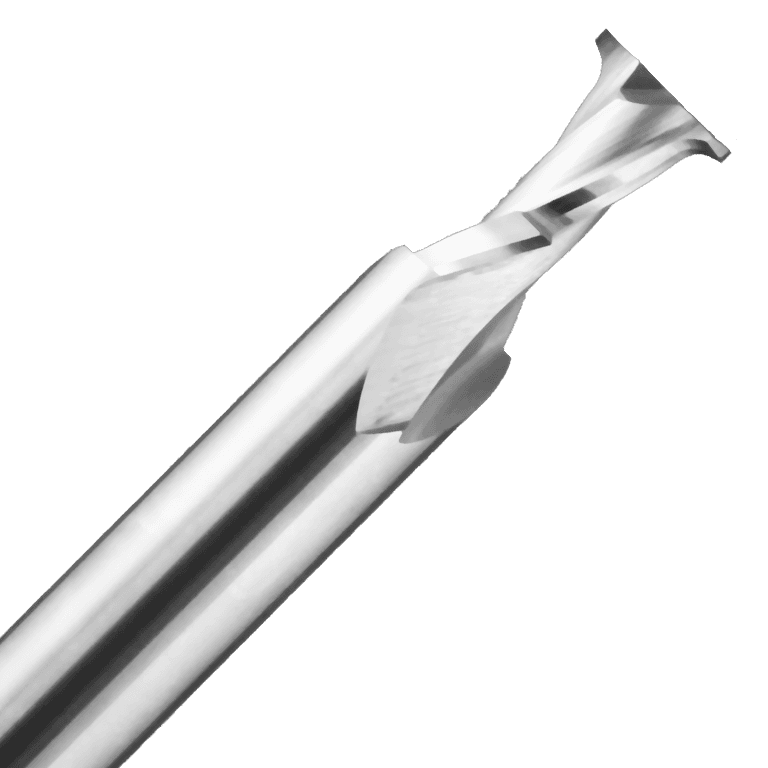

Spiral tool for applying top and bottom radii to material while sizing. Spiral geometry provides better cut than conventional profile tools.

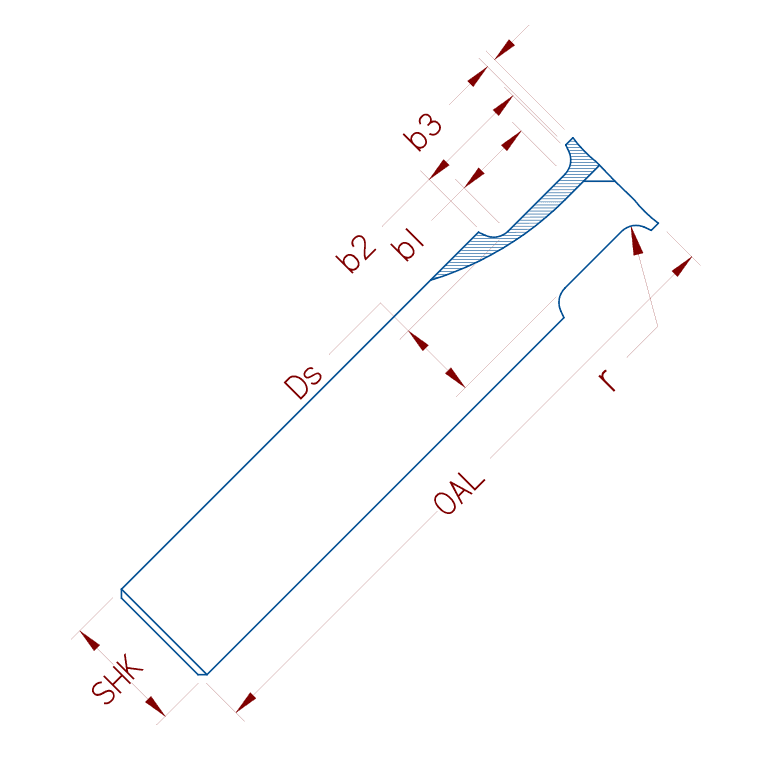

Cutting Edge (CE) | 0.875" |
Shank (Sh) | 0.750" |
Overall Length (OA) | 4.000" |
Coating Type (Coating) | None |
Number of Wings/Flutes/Teeth (Z) | 2 |
Material (Material) | HW |
Rotation (Rotation) | RH |
Dimension Variable 1 (b1) | 0.500" |
Dimension Variable 2 (b2) | 0.750" |
Radius Variable (r) | 0.125" |
Small Diameter (Ds) | 0.5000" |
Dimensions Variable 3 (b3) | 0.0625" |
