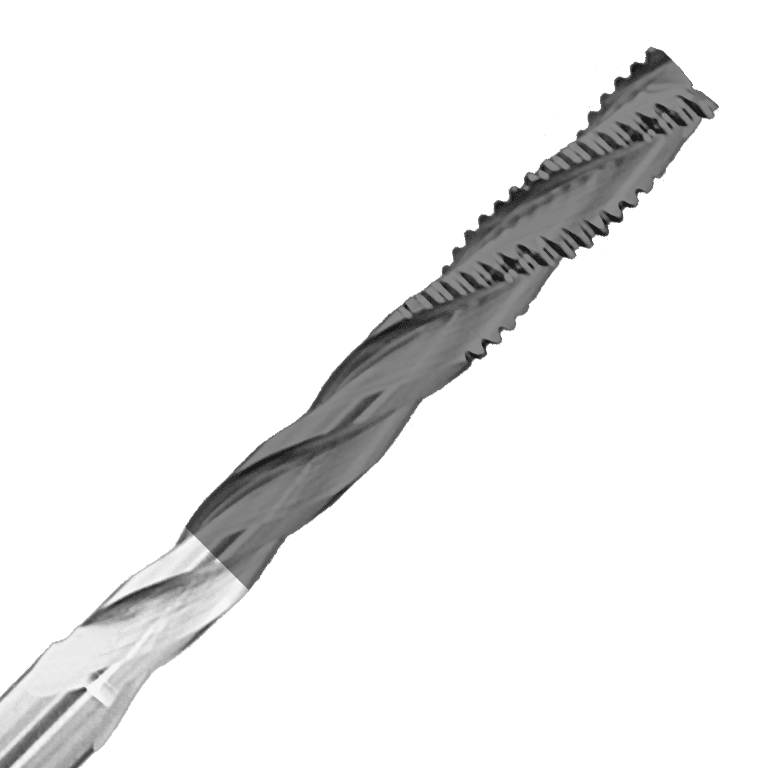

R60-01758UM
Designed for mortising side of doors to hold lock sets. Serrated tooth design to minimize horsepower required to cut. Spinback on tool allows relief to cut deep mortises.
Diameter (D) | 0.7500" |
Cutting Edge (CE) | 2.000" |
Shank (Sh) | 0.750" |
Overall Length (OA) | 7.000" |
Coating Type (Coating) | Ultimax |
Number of Wings/Flutes/Teeth (Z) | 3 |
Material (Material) | HC |
Rotation (Rotation) | RH |
Dimension Variable 1 (b1) | 1.500" |
Dimension Variable 2 (b2) | 5.500" |
