D145.120R

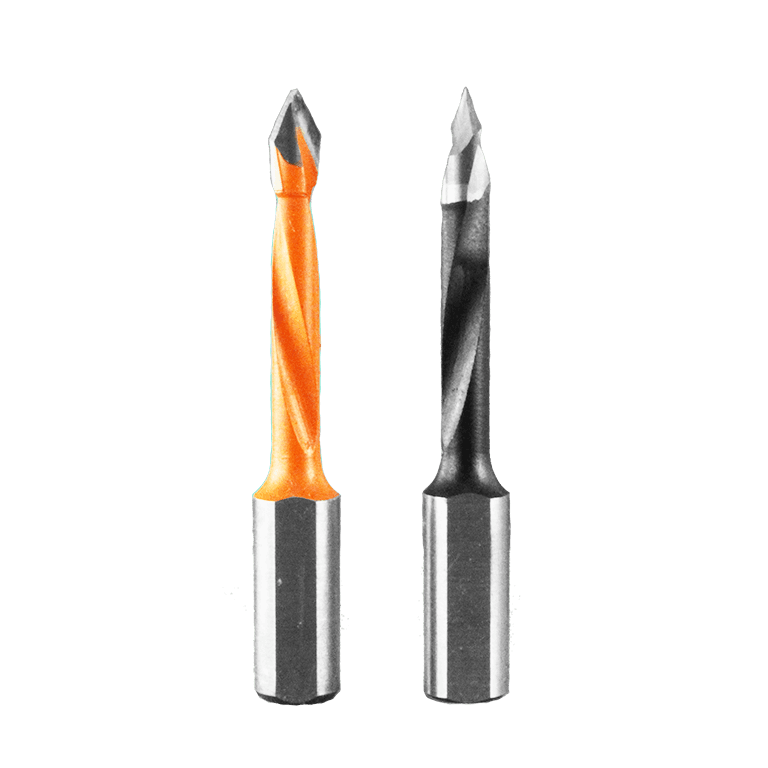

For use on CNC drill banks and portable machines. Industrial quality dowel drills have larger carbide tip and improved geometry for longer life. Thru-hole drill minimizes chipping on exit hole on laminates, particle board, MDF and solid wood. Carbide tipped for long life. Screw in the end for height adjustment.

D145.120R 1
D145.120R 2

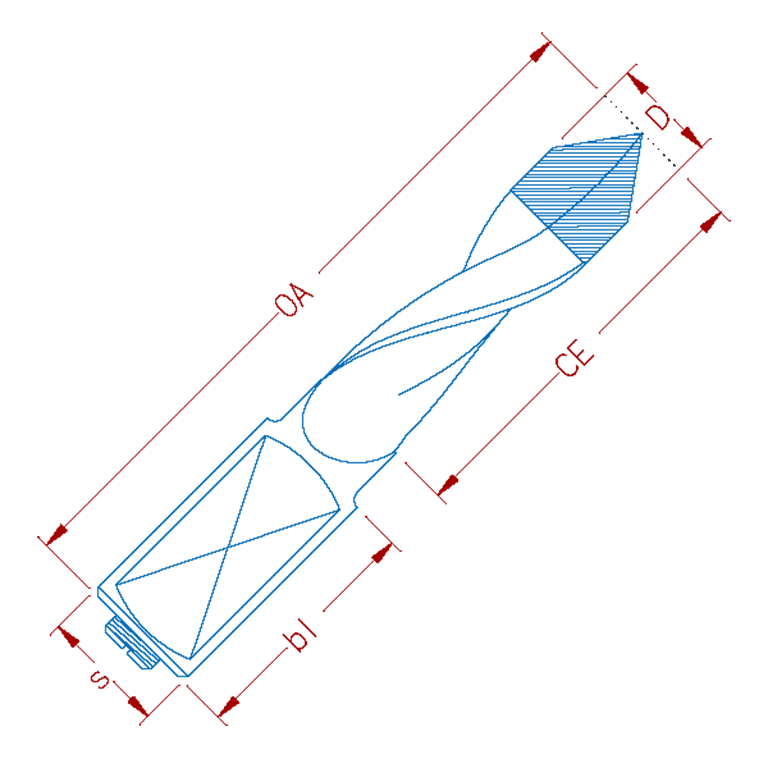

Diameter (D)
12mm
Cutting Edge (CE)
27mm
Shank (Sh)
10mm
Overall Length (OA)
57mm
Number of Wings/Flutes/Teeth (Z)
2
Material (Material)
HW
Rotation (Rotation)
RH
Dimension Variable 1 (b1)
20mm
