573D-122100404

Corrugated heads for moulders. Steel bodies with precision machined 60º corrugations to hold 579 series corrugated knives. Black oxide treatment for corrosion resistance. Dual hook heads for softwood and hardwood. Made in North America. Custom hydraulic arbor heads available upon request.

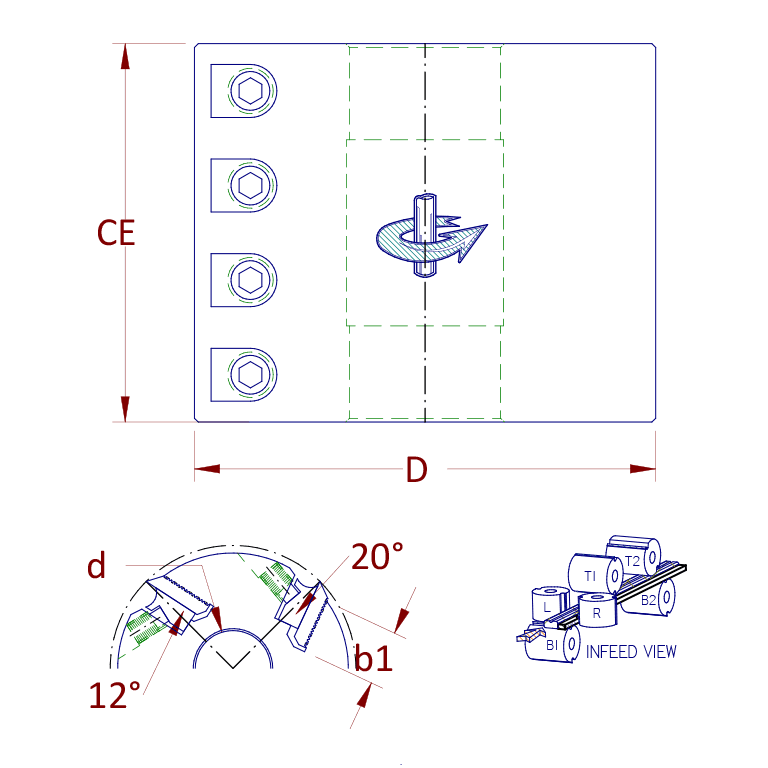

573D-122100404 1
573D-122100404 2
Diameter (D)
122mm
Cutting Edge (CE)
100mm
Number of Wings/Flutes/Teeth (Z)
2+2
Angle Variable 1 (a1)
20 + 12º
Dimension Variable 1 (b1)
30mm
Bore Size (d)
40mm
