573-122060404-12

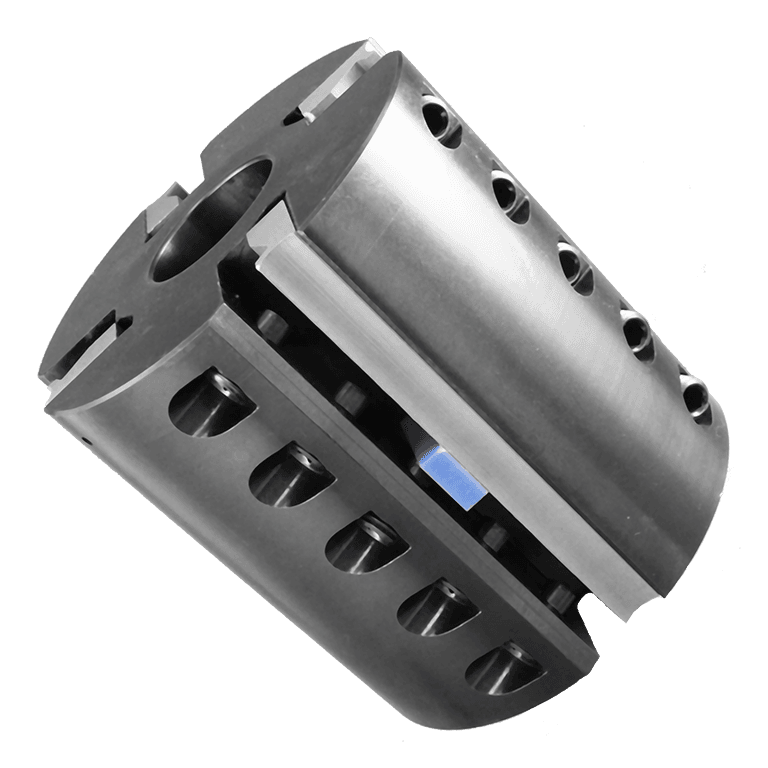

Corrugated heads for moulders. Steel bodies with precision machined 60º corrugations to hold 579 series corrugated knives. Black oxide treatment for corrosion resistance. 12º hook for hardwood. Made in North America. Custom hydraulic arbor heads available upon request.

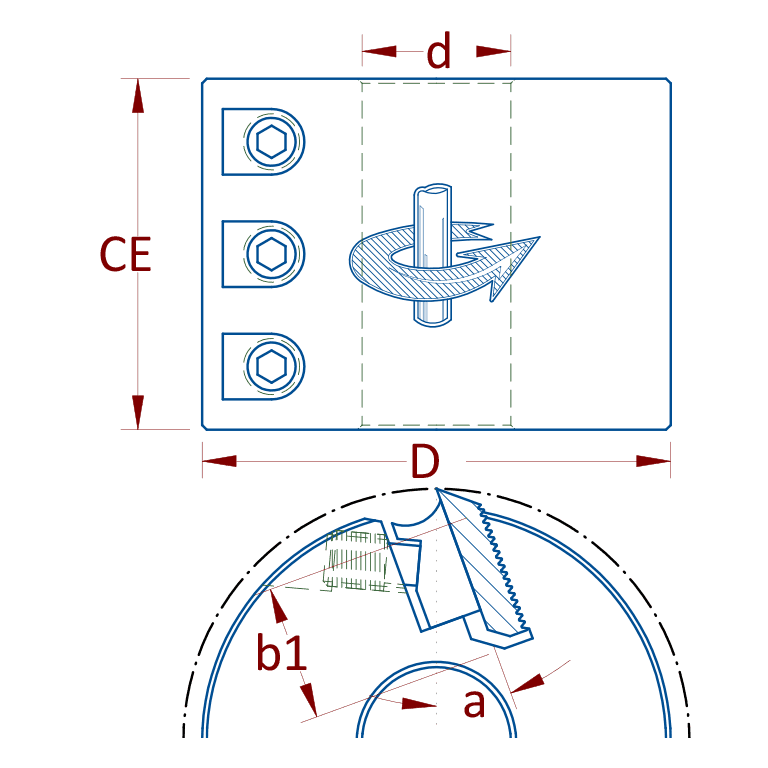

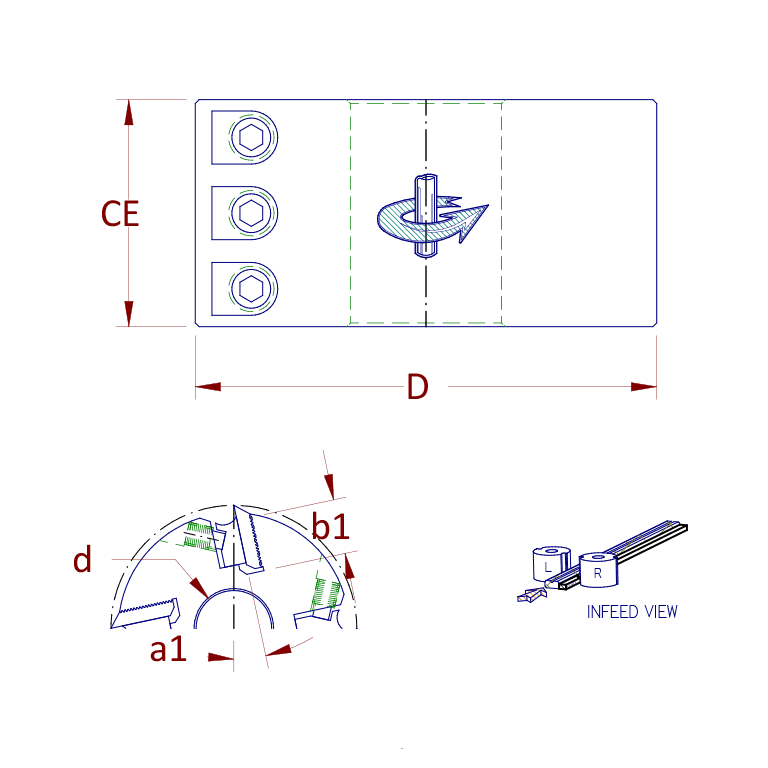

Diameter (D) | 122mm |
Cutting Edge (CE) | 60mm |
Number of Wings/Flutes/Teeth (Z) | 4 |
Angle Variable 1 (a1) | 12º |
Dimension Variable 1 (b1) | 30mm |
Bore Size (d) | 40mm |
