572-100100322

Corrugated heads for shapers and moulders. Steel bodies with precision machined 60º corrugations to hold 579 series corrugated knives. Black oxide treatment for corrosion resistance. 20º hook heads for softwood. Made in North America. Custom hydraulic arbor heads available upon request.

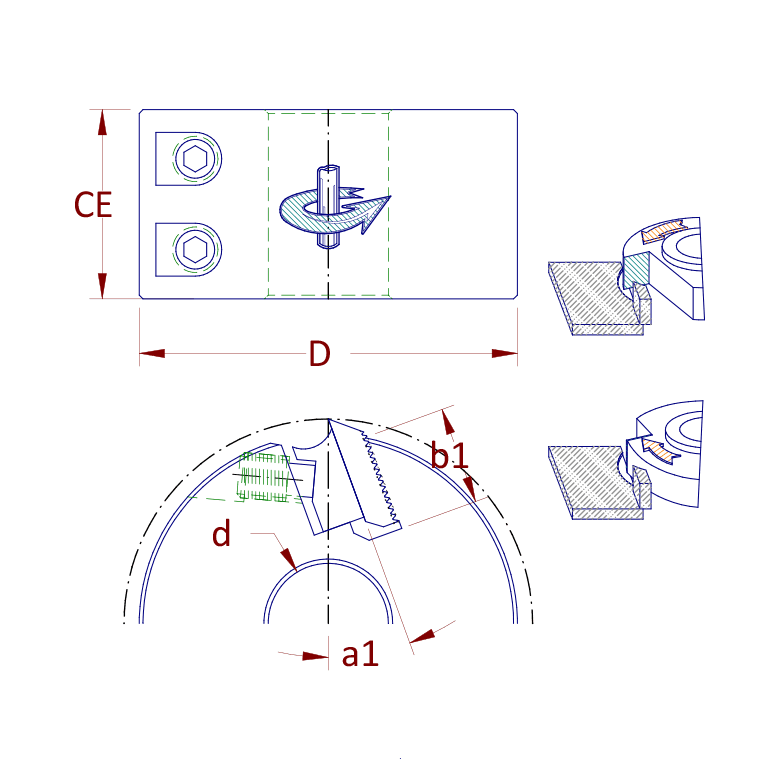

572-100100322 1
572-100100322 2
Diameter (D)
100mm
Cutting Edge (CE)
100mm
Number of Wings/Flutes/Teeth (Z)
2
Angle Variable 1 (a1)
20º
Dimension Variable 1 (b1)
1.125"
Bore Size (d)
1.2500"
